8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Throttle Lever Assembly, Mechanical Throttle-Shift

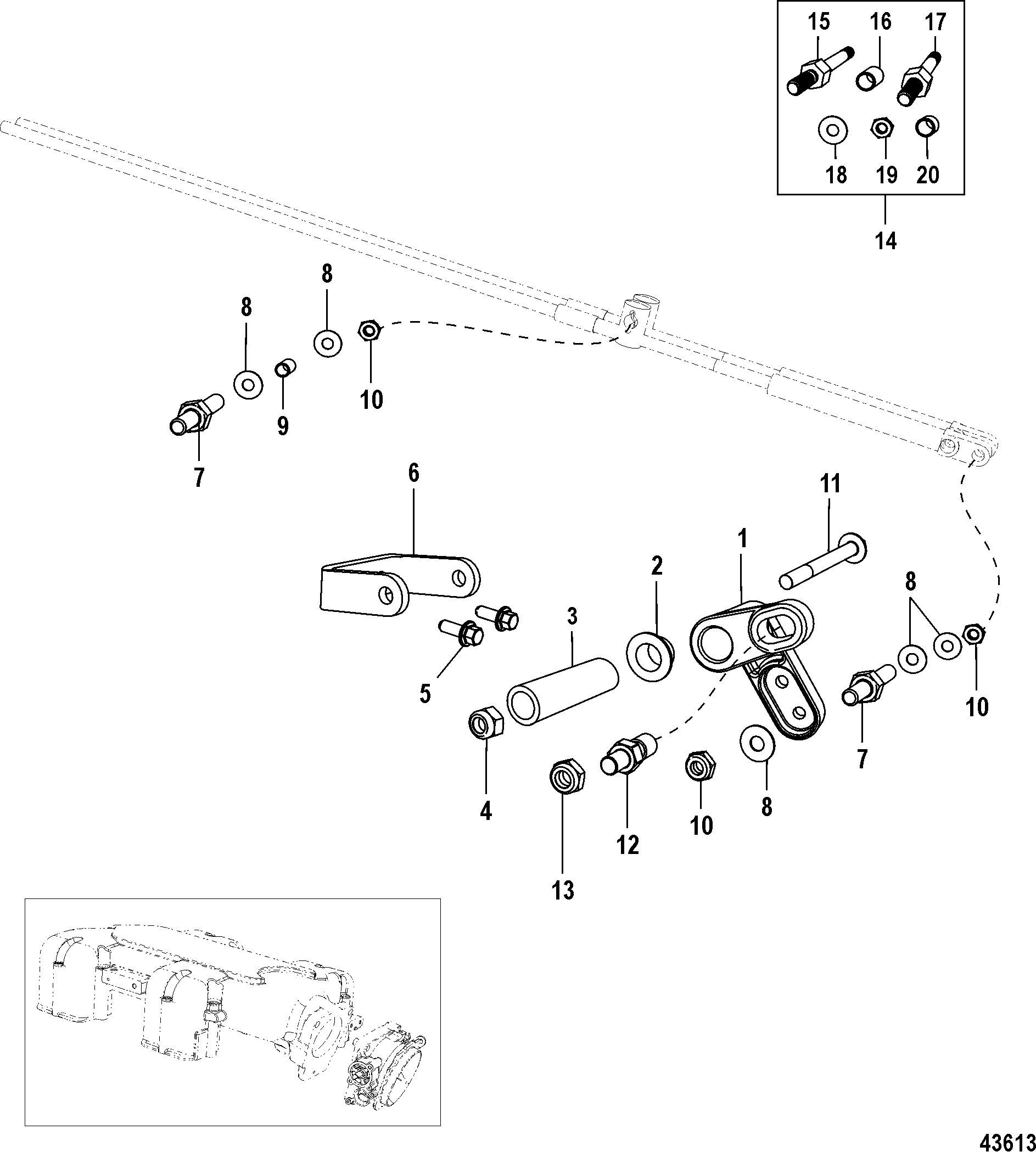

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M0044205 | LEVER ASSEMBLY, Throttle | 1 | |||||
| 2 | 23-841238 | BUSHING | 2 | |||||
| 3 | 23-8M0042528 | BUSHING | 1 | |||||
| 4 | 11-826365 | NUT, (M8) | 1 | |||||
| 5 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 2 | |||||
| 6 | 8M0046459 | BRACKET, Throttle Lever | 1 | |||||
| 7 | 16-8M0045152 | STUD, Special (1.925 Inches), Throttle Cable | 2 | |||||
| 8 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 5 | |||||
| 9 | 23-31866 | SPACER, (.256 x .313 x .625) | 1 | |||||
| 10 | 11-826709109 | NUT, (.250-28) Stainless Steel | 3 | |||||
| 11 | 10-4010775 | SCREW, (M8 x 75) | 1 | |||||
| 12 | 8M0043740 | ROLLER ASSEMBLY, Throttle | 1 | |||||
| 13 | 11-826709111 | 700-21190 | NUT, (.312-24) Stainless Steel | 1 | ||||
| 14 | 700-8M0046250 | THROTTLE/SHIFT KIT, Two Station | 1 | (Twin Engines Require Two Kits) | ||||
| 15 | 16-8M0045150 | STUD, Special (2.535 Inches) | 1 | |||||
| 16 | 23-31866 | SPACER, (.256 x .313 x .625) | 2 | |||||
| 17 | 16-8M0045143 | STUD, Special (2.23 Inches) | 1 | |||||
| 18 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 3 | |||||
| 19 | 11-826709109 | NUT, (.250-28) Stainless Steel | 3 | |||||
| 20 | 23-8M0045155 | SPACER, (0.26 x 0.50 x 0.24) | 1 |
