8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Cooling System, Raw Water Components, Port

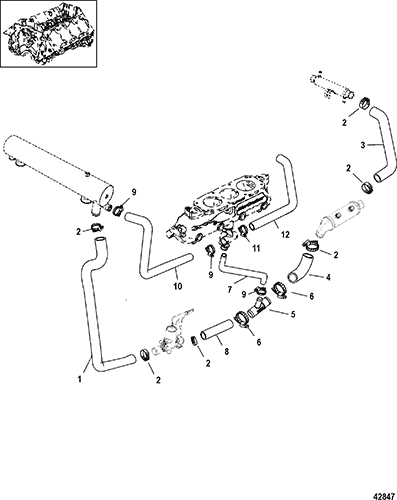

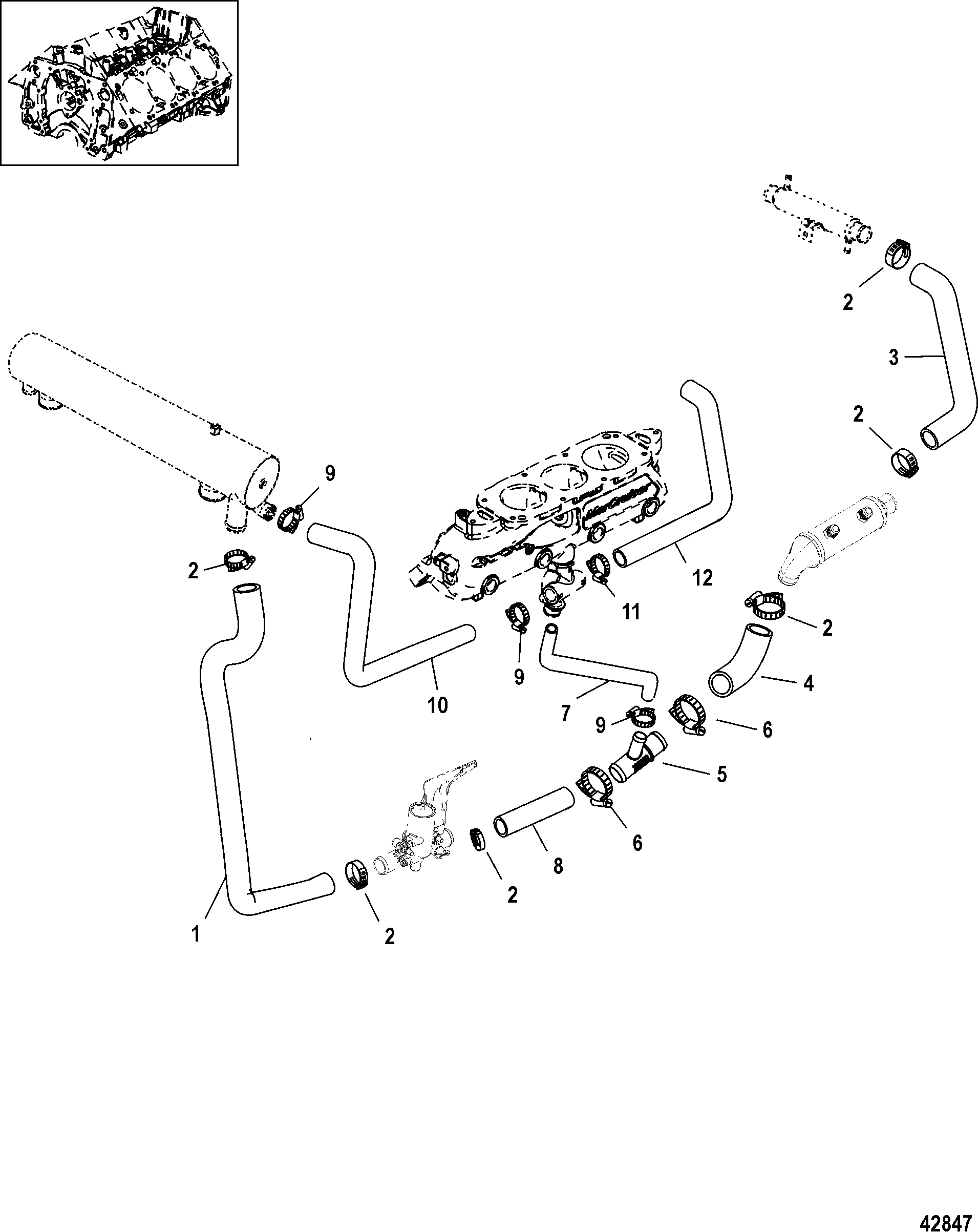

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 32-8M2017132 | HOSE, Water Drain to Heat Exchanger | 1 | |||||
| 2 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | AR | |||||
| 3 | 32-8M2017359 | HOSE, Power Steering Cooler to Oil Cooler | 1 | |||||
| 4 | 32-8M2017497 | HOSE, To Oil Cooler | 1 | |||||
| 5 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 | |||||
| 6 | 54-815504228 | CLAMP, Worm Gear | 2 | |||||
| 7 | 32-8M0062634 | HOSE, (44.00 Inches Bulk), To Drain | 1 | 32-4285069 | (Cut to 9.5 Inches) | |||
| 8 | 32-8M2007278 | HOSE, To Drain Housing | 1 | |||||
| 9 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | AR | |||||
| 10 | 32-8M2017130 | HOSE, Heat Exchanger to Poppet | 1 | |||||
| 11 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | AR | |||||
| 12 | 32-8M0062669 | HOSE, (45 Inches Bulk) | 1 | 32-8M2012906 | (Cut to Fit) |
