| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |
| . |

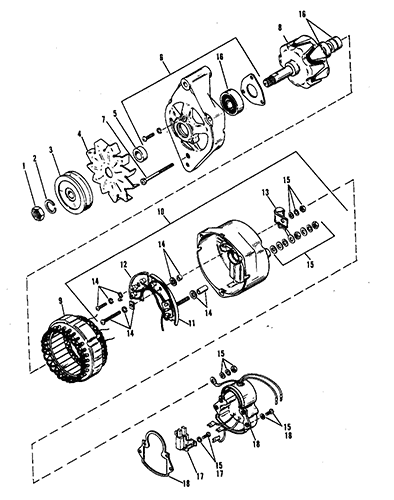

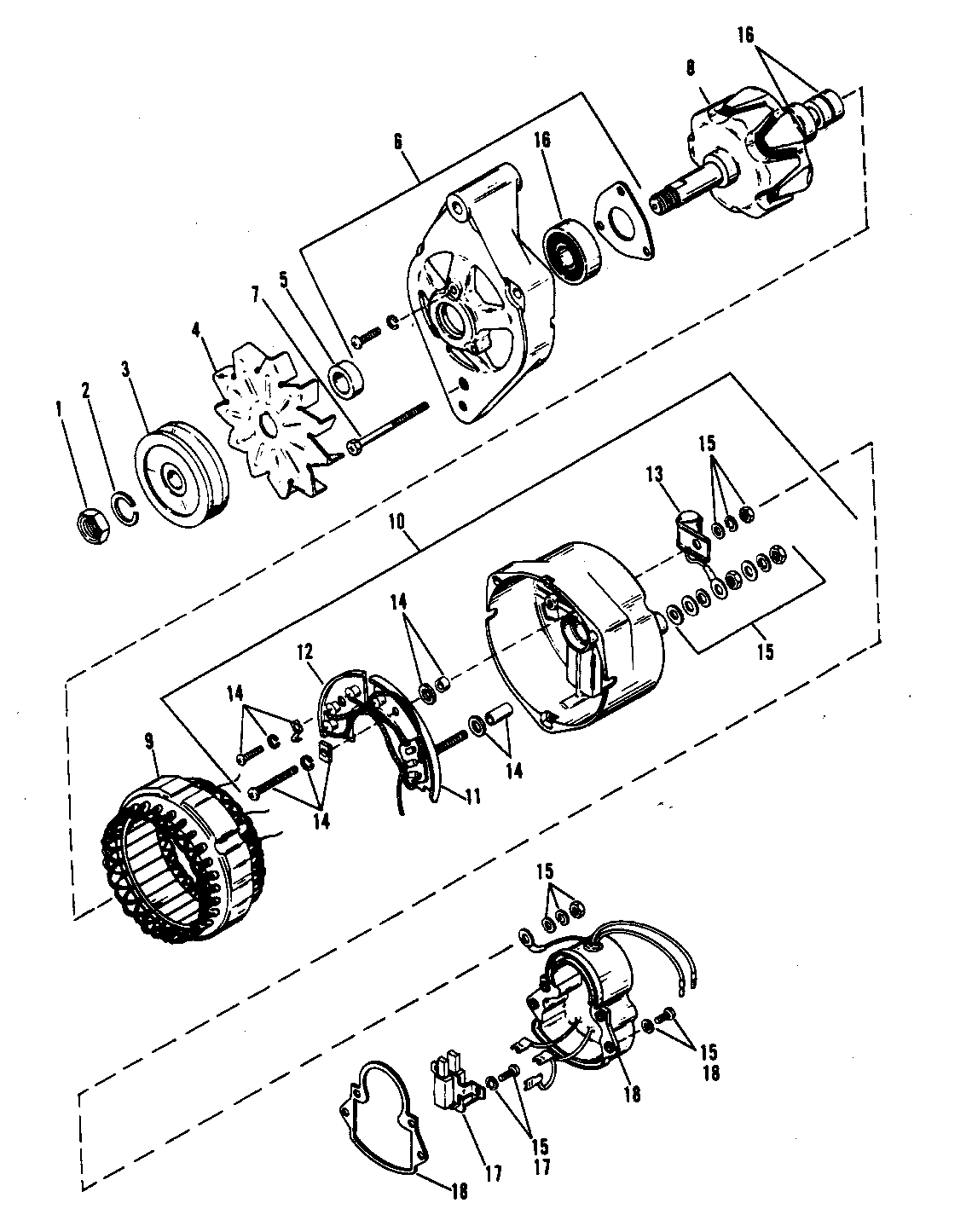

817119A4 |
620-3186M |
676-9-19101 |
|
|
ALTERNATOR ASSEMBLY |
1 |
92497A3 |
AS REQUIRED |
| 1 |
11-809136 |
|
|
|
|
NUT |
1 |
11-42768 |
|
| 2 |
13-42769 |
|
|
|
|
LOCKWASHER |
1 |
|
OPTIONAL |
| 3 |
809134 |
|
|
|
|
PULLEY |
1 |
42770 |
COMPONENT OF GASKET SET [27-815669A90] |
| 4 |
42771 |
|
|
|
|
FAN |
1 |
|
This Part is No Longer Available COMPONENT OF GASKET SET [27-811546A93] |
| 5 |
23-42772 |
|
|
|
|
SPACER |
1 |
|
This Part is No Longer Available CONTENTS OF GASKET SETS [27-815669A90] / [27-811546A93] |
| 6 |
42774 |
|
|
|
|
BRACKET - FRONT |
1 |
|
This Part is No Longer Available |
| 7 |
10-42773 |
|
|
|
|
BOLT |
3 |
|
This Part is No Longer Available AN UPDATE KIT PART NUMBER [847818A3] WILL BE REQUIRED. |
| 8 |
72775 |
|
|
|
|
ROTOR (INCLUDES BEARINGS) |
1 |
|
BRAVO MODELS WITH DRIVELINE OR TRANSMISSION MODELS ALSO REQUIRE |
| 9 |
42776 |
|
|
|
|
STATOR |
1 |
|
This Part is No Longer Available FLYWHEEL PART NUMBER [230-811563] AND PILOT BUSHING PART NUMBER [23-49126]. |
| 10 |
42777 |
|
|
|
|
BRACKET - REAR |
1 |
|
This Part is No Longer Available |
| 11 |
42778 |
|
|
|
|
HEAT SINK |
1 |
|
This Part is No Longer Available |
| 12 |
42779 |
|
|
|
|
HEAT SINK |
1 |
|
This Part is No Longer Available |
| 13 |
42780 |
|
|
|
|
CONDENSER ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 14 |
42783 |
|
|
|
|
HARDWARE KIT - INTERNAL |
1 |
|
This Part is No Longer Available |
| 15 |
42782 |
|
|
|
|
HARDWARE KIT - EXTERNAL |
1 |
|
This Part is No Longer Available |
| 16 |
42781 |
|
|
|
|
BEARING KIT |
1 |
|
This Part is No Longer Available |
| 17 |
42785 |
|
|
|
|
BRUSH KIT (INCLUDES SPRINGS AND BRUSHES) |
1 |
|
|
| 18 |
42785 |
|
|
|
|
REGULATOR KIT |
1 |
|
No longer made, limited availability |
