465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Driveshaft Extension Components (Bravo)

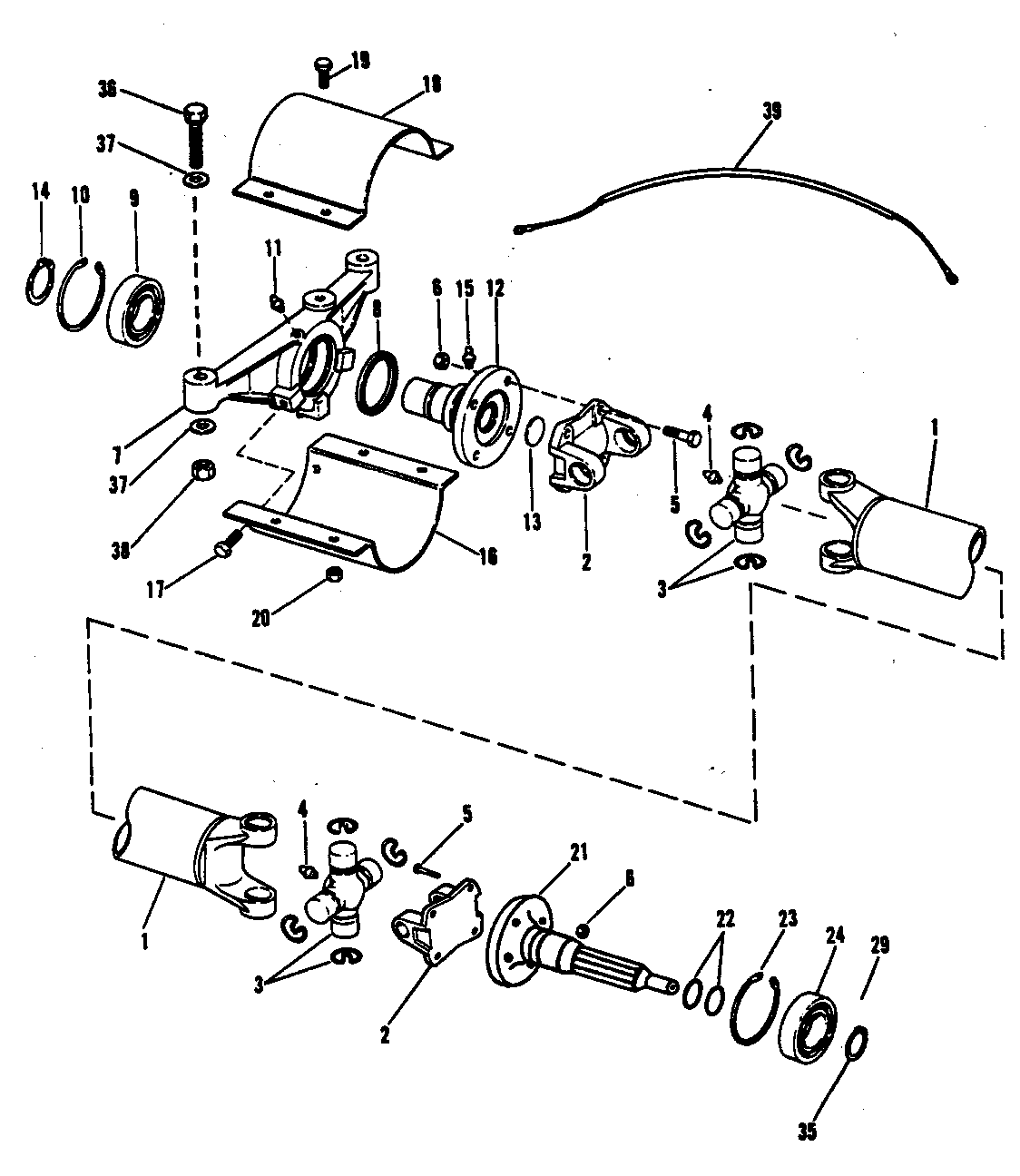

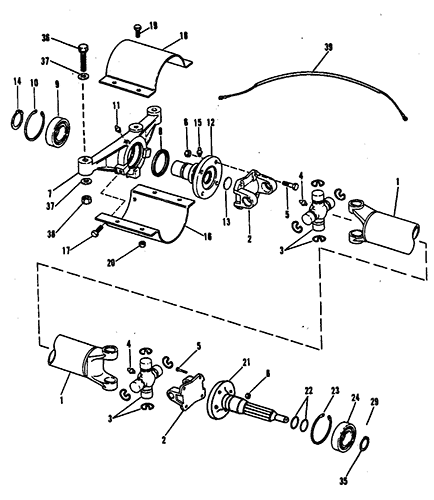

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 45-94819A3 | DRIVESHAFT ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 52504T | FLANGE-Yoke | 2 | ||||||
| 3 | 61221T | UNIVERSAL JOINT | 2 | 61221 | |||||
| 4 | 22-74036 | FITTING-Grease | 2 | ||||||
| 5 | 10-805159 | SCREW (7/16-20 x 1-1/2") | 8 | 10-52498 | |||||
| 6 | 11-34933 | 676-9-72004 | NUT (7/16-20) | 8 | |||||
| 7 | 817416A4 | SUPPORT ASSEMBLY-Bearing | 1 | 42304A2 | |||||
| 8 | 26-93924 | SEAL-Oil | 1 | ||||||
| 9 | 30-93944A2 | BEARING-Ball | 1 | 30-93944A1 | |||||
| 10 | 53-93914 | RING-Retaining | 1 | ||||||
| 11 | 22-74036 | FITTING-Grease | 1 | ||||||
| 12 | 93908A1 | SHAFT ASSEMBLY-Input | 1 | ||||||
| 13 | 19-93921 | PLUG-Expansion | 1 | ||||||
| 14 | 53-93915 | RING-Retaining | 1 | ||||||
| 15 | 22-74036 | FITTING-Grease | 1 | ||||||
| 16 | 93918A1 | SHIELD ASSEMBLY-Lower | 2 | ||||||
| 17 | 10-76926 | SCREW (3/8-16 x 7/8") | 6 | ||||||
| 18 | 93919A1 | SHIELD ASSEMBLY-Upper | 2 | ||||||
| 19 | 10-96995 | SCREW (3/8-16 x 7/8") | 8 | ||||||
| 20 | 11-68411 | NUT (3/8-16) | 8 | No longer made, limited availability | |||||
| 21 | 93906A2 | SHAFT ASSEMBLY-Output | 1 | ||||||
| 22 | 25-25439 | O RING | 2 | ||||||
| 23 | 53-94104 | RING-Retaining | 1 | ||||||
| 24 | 879194A03 | BEARING-Ball | 1 | 30-62780A1 | |||||
| 35 | 53-94103 | RING-Retaining | 1 | No longer made, limited availability | |||||
| 36 | 10-57053 | SCREW (1/2-20 x 4-1/2") | 2 | ||||||
| 37 | 12-42307 | WASHER (Spherical) | 4 | ||||||
| 38 | 11-898832 | NUT (1/2-20) | 2 | 11-28040 | |||||
| 39 | 84-816943A1 | HARNESS ASSEMBLY | 1 | 84-816943 |
