465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Electrical Components (D763732-F213244)

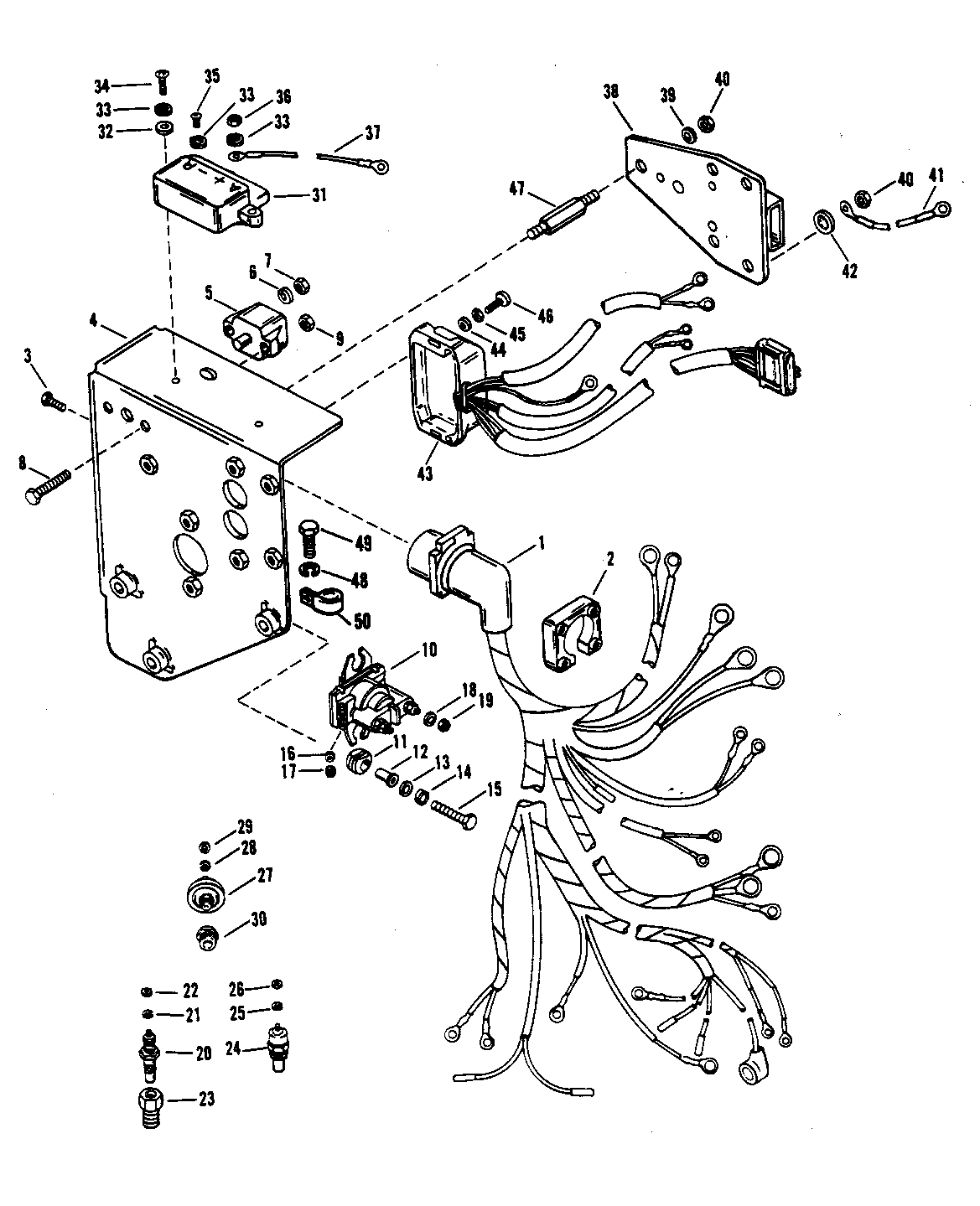

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 84-847722A2         HARNESS ASSEMBLY-Wiring 1 84-847722A1
2 26079A2         PLATE KIT 1

3 10-15001         SCREW (#8-16 x 7/8") 4

4 8476761         BRACKET-Mount (3/8") 1
SERIAL 0D763732-0F213123
4 8481311         BRACKET-Mount (7/16") 1   This Part is No Longer Available SERIAL 0F213124-0F213244
5 88-11178A01         BREAKER-Circuit (50 AMP) 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
6 13-26996         LOCKWASHER (#10) 2

7 11-68219         NUT (10-32) 2

8 10-45862         SCREW (10-32 x 7/8") 2

9 11-61356         NUT (10-32) 2

10 89-850188T1         SOLENOID ASSEMBLY-Starter 1 89-825842A1
11 25-818967         GROMMET 2

12 23-818968         BUSHING 2

13 12-29245     700-21490   WASHER 2

14 13-26992         LOCKWASHER (1/4") 2

15 10-76630         SCREW (1/4-20 x 1") 2

16 13-26995         LOCKWASHER (#8) 2

17 11-26419         NUT (8-32) 2

18 13-26992         LOCKWASHER (1/4") 2

19 11-94330         NUT (1/4-20) 2

20 13611         SENDER UNIT-Oil Temperature 1

21 13-26996         LOCKWASHER (#10) 1

22 11-45076         NUT (10-32) 1

23 22-36492         REDUCER 1

24 806490T         SENDER ASSEMBLY-Water Temperature 1 97257A1
24 49734         SENDER ASSEMBLY-Water Temperature (Dual) OPT. 49734A1 3
25 13-26996         LOCKWASHER (#10) 1

26 11-45076         NUT (10-32) 1

27 8M0068784         SENDER ASSEMBLY-Oil Pressure 1 815425
27 37293T         SENDER ASSEMBLY-Oil Pressure (Dual) OPT. 37293 3
28 13-26996         LOCKWASHER (#10) 1

29 11-45076         NUT (10-32) 1

30 22-64013         REDUCER 1

31 42600A09         CONTROLLER ASSEMBLY 1 42600A3
32 12-30164         WASHER 2

33 13-26996         LOCKWASHER (#10) 7

34 10-41771         SCREW (10-24 x 7/8") 2

35 10-62568         SCREW (10-16 x 3/8") 1

36 11-68219         NUT (10-32) 4

37 84-86322A17         CABLE ASSEMBLY (Black) 1   This Part is No Longer Available
38 17316A1         IGNITION MODULE ASSEMBLY 1   This Part is No Longer Available
39 12-29245     700-21490   WASHER 2

40 11-8267098         NUT (1/4-20) 3 11-56374
41 84-62826A6         CABLE ASSEMBLY (Black) 1

42 13-21272         LOCKWASHER (1/4" Internal) 1

43 823755T1         OVERSPEED ASSEMBLY 1 823755A1
44 12-30164         WASHER 2

45 13-26996         LOCKWASHER (#10) 2

46 10-41069         SCREW (10-24 x 3/4") 2

47 16-847738         STUD-Electrical Bracket Mount 3

48 13-35048         LOCKWASHER (3/8") 3

48 13-32993         LOCKWASHER (7/16") 3

49 10-37612         SCREW (3/8-16 x 1-1/4")-Bracket Mount 3

49 10-47462         SCREW (7/16-14 x 1-1/4")-Bracket Mount 3

50 54-848183         J CLIP-Electrical Harness 1
