465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Mount Plates (Single)

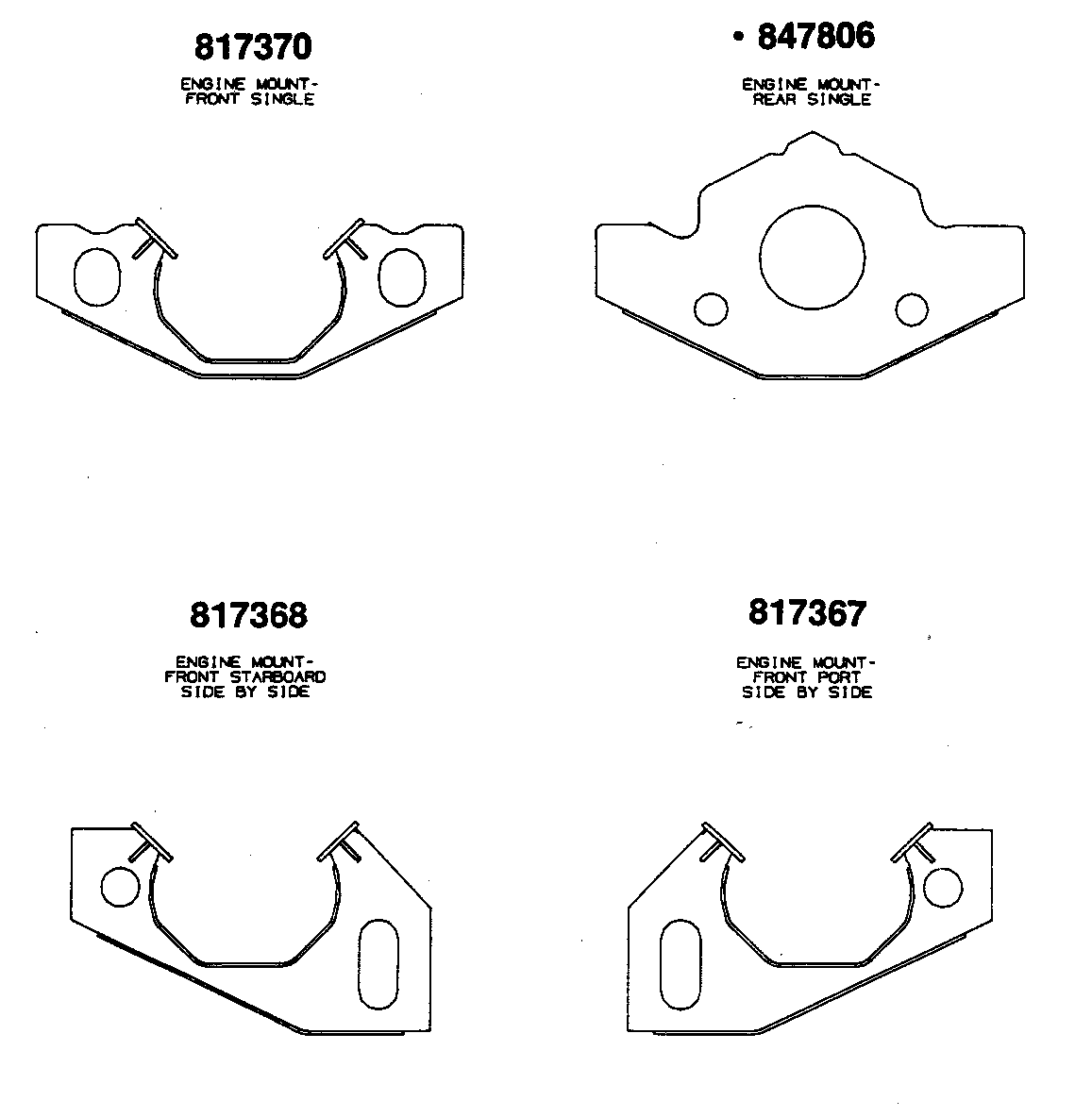

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes

10-86518         SCREW (3/8-16X1") 6


12-20553         WASHER 6


849143T         ENGINE MOUNT (FRONT SINGLE)
817370

844346T         ENGINE MOUNT (REAR SINGLE)
847806

849299T         ENGINE MOUNT (FRONT STARBOARD SIDE BY SIDE)
817368

849339T         ENGINE MOUNT (FRONT PORT SIDE BY SIDE)
817367
