465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Carburetor And Linkage

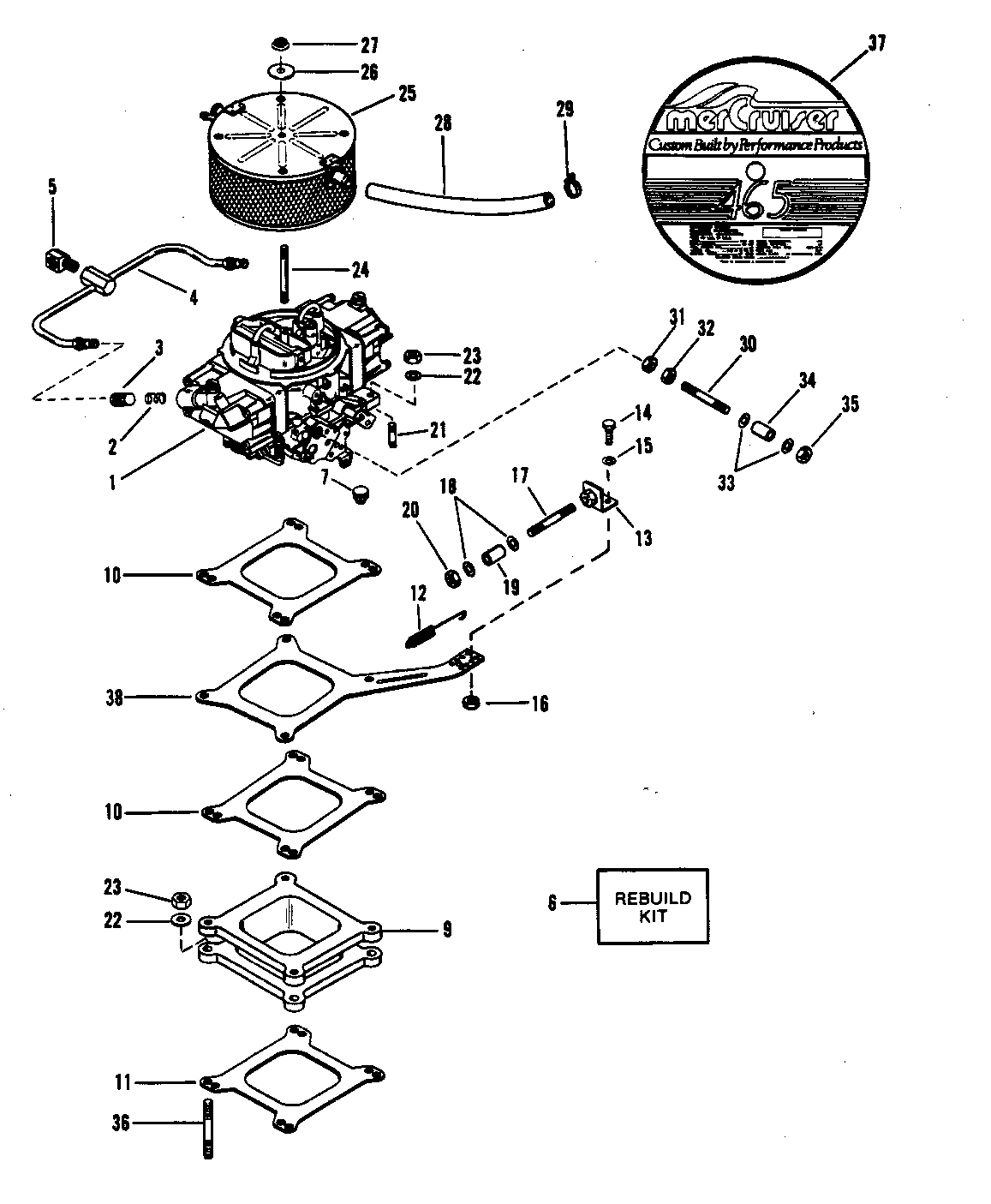

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 13549A6         CARBURETOR (BLACK) 1   This Part is No Longer Available
1 13549A9         CARBURETOR (BLUE) 1   This Part is No Longer Available
2 24-48143         SPRING-Filter 2

3 35-93568         FILTER 2

4 32-94068A1         TUBE-Fuel Inlet 1 32-94068
5 22-93385         ELBOW-Fuel Inlet Tube 1

6 13220         REBUILD KIT-Carburetor Overhaul 1

- 816827         PUMP KIT-Accelerator 1   This Part is No Longer Available
- 1399-650896         JET-Main (.118) 1

- 1399-650874         JET-Main (.081) 2

- 822519         POWER VALVE 1   This Part is No Longer Available
7 22-36373         PLUG (3/8-16)-Intake Manifold Vacuum Hole 1

9 815916         SPACER-Carburetor 1   This Part is No Longer Available
10 27-41610         GASKET-Spacer 2
4,5
11 27-814210         GASKET-Spacer 1
4,5
12 24-897454         SPRING-Throttle Return 1 24-32817
13 15017         BRACKET-Throttle 1

14 10-78291         SCREW (3/16-24 x 1/2")-Throttle Bracket 2

15 13-26996         LOCKWASHER (#10)-Throttle Bracket Screw 2

16 11-79989         NUT (10-24)-Throttle Bracket Screw 2

17 16-98851         STUD-Cable 1
No longer made, limited availability
18 12-69056         WASHER-Cable Stud 2 12-21631
19 23-31866         SPACER-Cable Stud 1

20 11-826709109         NUT (1/4-28)-Cable Stud 1 11-35045
21 16-46857         STUD 4

22 12-848136         WASHER-Carburetor Stud 8 12-39167
23 11-82670911         NUT (5/16-24)-Carburetor Stud 8 11-35814
24 16-69501         STUD-Flame Arrestor 1

25 8160701         ARRESTOR-Flame 1 816070 This Part is No Longer Available
26 12-86400         WASHER-Flame Arrestor Stud 1

27 11-35888   676-9-72001 700-21180   NUT (1/4-28)-Flame Arrestor Stud 1

28 32-8M0062669         HOSE-Vent (Cut as Req'd) 2 32-9331512
29 69355         STA STRAP-Vent Hose 4

30 16-63335         STUD-Throttle Cable to Carburetor 1   This Part is No Longer Available
31 11-826709109         NUT (1/4-28)-Throttle Cable Stud 1 11-35045
32 11-21825         NUT (1/4-28)-Throttle Cable Stud 1

33 12-29245     700-21490   WASHER-Throttle Cable Stud 3

34 23-818894         BUSHING-Throttle Cable Stud 1

35 11-8267089         NUT (1/4-28)-Throttle Cable Stud 1 11-20361
36 16-33111         STUD 4   This Part is No Longer Available
37 37-1372361         DECAL 1   This Part is No Longer Available
38 940701         BRACKET-Throttle 1

39 27-815669A90         COMPONENTS OF GASKET SET -   This Part is No Longer Available
40 27-811546A98         COMPONENTS OF GASKET SET - 27-811546A93 This Part is No Longer Available
