465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Power Steering Components

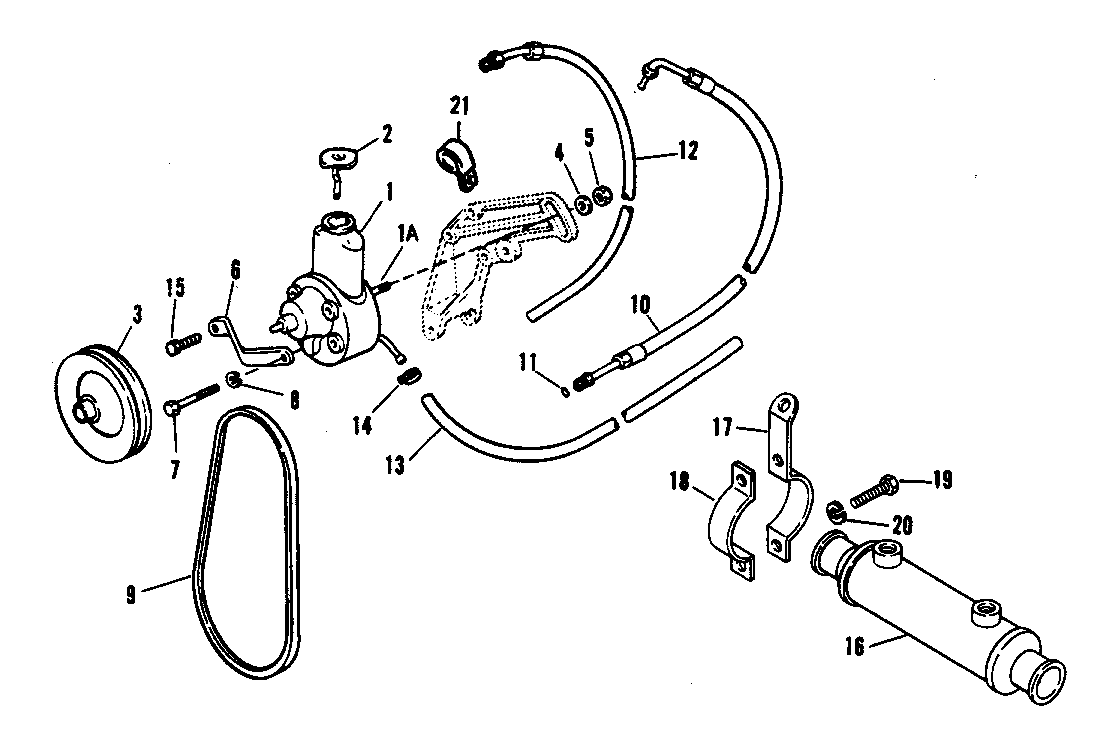

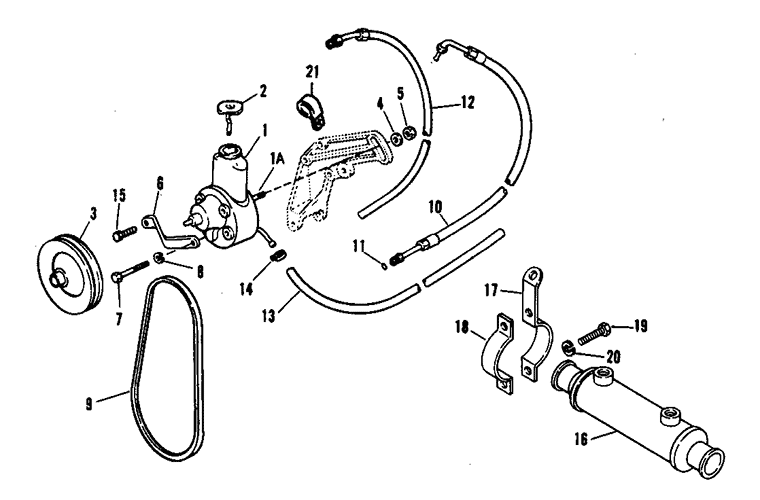

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A25 | PUMP ASSEMBLY-Power Steering (Blue) | 1 | ||||||
| 1 | 16792A39 | PUMP ASSEMBLY-Power Steering (Black) | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 1A | 16-41877 | STUD | 1 | ||||||
| 2 | 36-95805 | CAP | 1 | ||||||
| 3 | 73873A1 | PULLEY (Black) | 1 | ||||||
| 3 | 738733 | PULLEY (Blue) | 1 | This Part is No Longer Available | |||||
| 4 | 12-34567 | WASHER (BRACE SLOT) | 3 | ||||||
| 5 | 11-90517 | NUT | 2 | ||||||
| 6 | 98813F1 | BRACE | 1 | 98813A1 | |||||
| 7 | 10-40001188 | SCREW (M10 x 1.5 x 20) | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER | 1 | ||||||
| 9 | 57-812427Q | V BELT (56") | 1 | 57-812427T | |||||
| 10 | 32-98494 | HOSE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 11 | 25-89879 | O RING | 1 | ||||||
| 12 | 32-9884339 | HOSE (FITTINGS ON ONE END) | 1 | ||||||
| 13 | 32-8M0062341 | HOSE (Cut as Req'd) | 1 | 32-5251914 | |||||
| 14 | 54-180761 | CLAMP | 3 | ||||||
| 15 | 10-37612 | SCREW (3/8-16 x 1-1/4") | 1 | ||||||
| 15 | 10-47462 | SCREW (7/16-14 x 1-1/4") | 1 | ||||||
| 16 | 99356A2 | COOLER ASSEMBLY-Oil-Power Steering | 1 | ||||||
| 17 | 63820F3 | BRACKET (LONG) | 1 | 638203 | |||||
| 18 | 563281 | BRACKET (SHORT) | 1 | ||||||
| 19 | 10-49668 | SCREW (1/4-20 x 3/4") | 2 | ||||||
| 20 | 13-26992 | LOCKWASHER (1/4") | 2 | ||||||
| 21 | 54-848183 | J CLIP-Power Steering Hose | 1 |
