| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

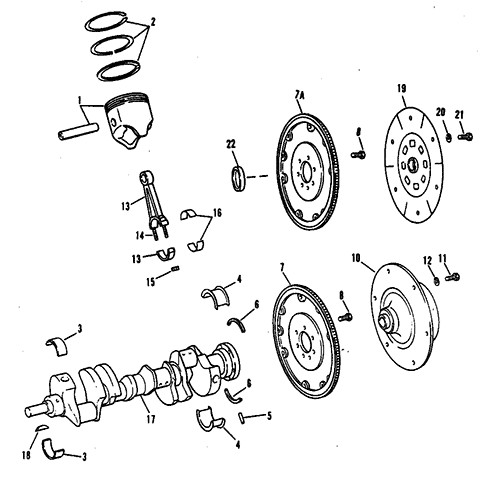

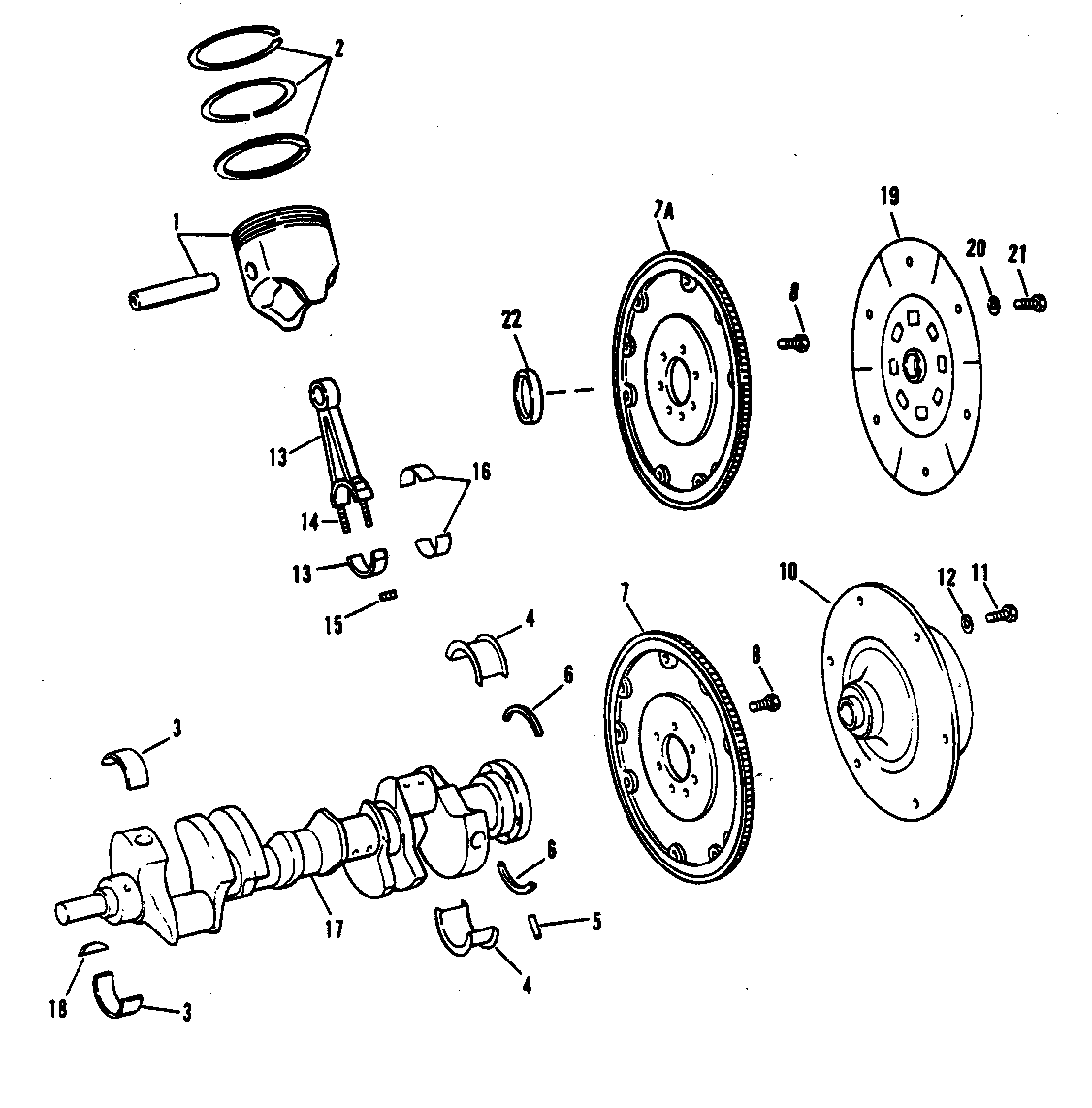

| 1 |
794-816710 |
|
|
|
|
PISTON ASSEMBLY (STD) |
8 |
|
This Part is No Longer Available SERIAL 0A000000-0C849992 |
| 2 |
39-4273335 |
|
|
|
|
RING SET-Piston (STD) |
1 |
|
SERIAL 0A000000-0C850209 |
| 1 |
737-827664 |
|
|
|
|
PISTON ASSEMBLY (STD.) |
8 |
|
|
| 2 |
39-827660T |
|
|
|
|
RING SET-Piston (STD) |
8 |
39-821091 |
SERIAL 0C850210-0F213244 |
| 1 |
737-827665A1 |
|
|
|
|
PISTON ASSEMBLY (.030 O.S.) |
8 |
737-817412 |
This Part is No Longer Available SERIAL 0C850210-0F213244 |
| 2 |
737-827665A1 |
|
|
|
|
RING SET-Piston (.030 O.S.) |
8 |
39-817413 |
This Part is No Longer Available SERIAL 0C850210-0F213244 |
| 3/4 |
23-818473001 |
|
|
|
|
BEARING SET (STANDARD) |
1 |
23-818473 |
SERIAL 0C850210-0F213244 |
| 3/4 |
23-818474 |
|
|
|
|
BEARING SET (.001 U.S.) |
AR |
|
1 |
| 3/4 |
23-818475 |
|
|
|
|
BEARING SET (.002 U.S.) |
AR |
|
1 |
| 3/4 |
818476001 |
|
|
|
|
BEARING SET (.010 U.S.) |
AR |
23-818476 |
1 |
| 3/4 |
23-818477 |
|
|
|
|
BEARING SET (.020 U.S.) |
AR |
|
1 |
| 5 |
17-843378 |
|
|
|
|
PIN-Dowel (1/4" Dia.) |
1 |
17-35312 |
|
| 6 |
26-14756 |
|
|
|
|
SEAL-Oil |
1 |
|
SERIAL 0C849992-0D725646 6 |
| 6 |
26-811554 |
|
|
|
|
SEAL-Oil |
1 |
|
SERIAL 0D725647-0F213244 6 |
| 7 |
230-6540 |
|
|
|
|
FLYWHEEL |
1 |
|
SERIAL 0C849992-0D725646 |
| 7 |
230-843374T1 |
|
|
|
|
FLYWHEEL |
1 |
230-811561 |
SERIAL 0D725647-0F213244 |
| 7A |
230-8115631 |
|
|
|
|
FLYWHEEL (GEN V Driveline or Transmission Models) |
1 |
230-811563 |
|
| 7A |
230-5534 |
|
|
|
|
FLYWHEEL (MARK IV Driveline or Transmission Models) |
1 |
|
This Part is No Longer Available |
| 8 |
10-845757 |
|
|
|
|
SCREW (7/16-20 x 1") |
6 |
10-49845 |
|
| 10 |
861523A9 |
|
|
|
|
COUPLING ASSEMBLY-Engine (BRAVO Models Only) |
1 |
18311A17 |
|
| 11 |
10-14883 |
|
|
|
|
SCREW (3/8-16 x 1-1/8") |
6 |
|
|
| 12 |
12-20572 |
|
|
|
|
WASHER |
6 |
|
|
| - |
22-49099 |
|
|
|
|
FITTING-Grease |
2 |
|
|
| 13 |
614-8M0084554 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
614-9641 |
|
| 14 |
10-19234 |
|
|
|
|
SCREW-Conn Rod Cap |
16 |
|
|
| 15 |
11-37493 |
|
|
|
|
NUT-Conn Rod Cap Screw |
16 |
|
No longer made, limited availability |
| 16 |
23-85726001 |
|
|
|
|
BEARING SET (STANDARD) |
8 |
23-85726 |
|
| 16 |
23-85727 |
|
|
|
|
BEARING SET (.001 U.S.) |
AR |
|
1 |
| 16 |
23-85728 |
|
|
|
|
BEARING SET (.002 U.S.) |
AR |
|
This Part is No Longer Available 1 |
| 16 |
23-85691 |
|
|
|
|
BEARING SET (.010 U.S.) |
AR |
|
1 |
| 16 |
23-85729 |
|
|
|
|
BEARING SET (.020 U.S.) |
AR |
|
1 |
| 17 |
429-5880 |
|
|
|
|
CRANKSHAFT |
1 |
|
This Part is No Longer Available SERIAL 0C849992-0D725646 |
| 17 |
429-843083T |
|
|
|
|
CRANKSHAFT |
1 |
429-811550 |
SERIAL 0D725647-0F213244 |
| 18 |
28-845607 |
|
|
|
|
KEY-Crankshaft |
2 |
28-811558 |
|
| 19 |
8M0051206 |
|
|
|
|
DRIVE PLATE (Transmission Models) |
1 |
816618 |
|
| 20 |
10-35091 |
|
|
|
|
SCREW (3/8-16 x 1") (Transmission Models) |
6 |
|
|
| 21 |
13-35048 |
|
|
|
|
LOCKWASHER (3/8") (Transmission Models) |
6 |
|
|
| 22 |
23-49126 |
|
|
|
|
BUSHING-Pilot-Crankshaft (Driveline Models Only) |
1 |
|
|
