465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Distributor And Ignition Components

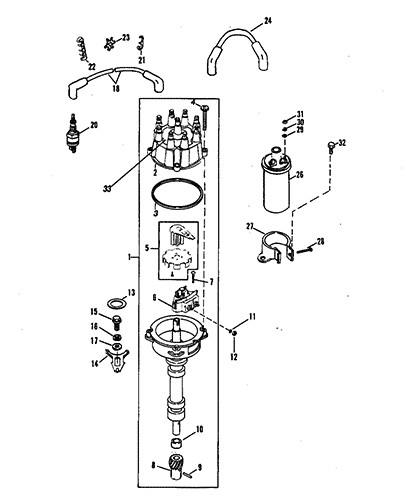

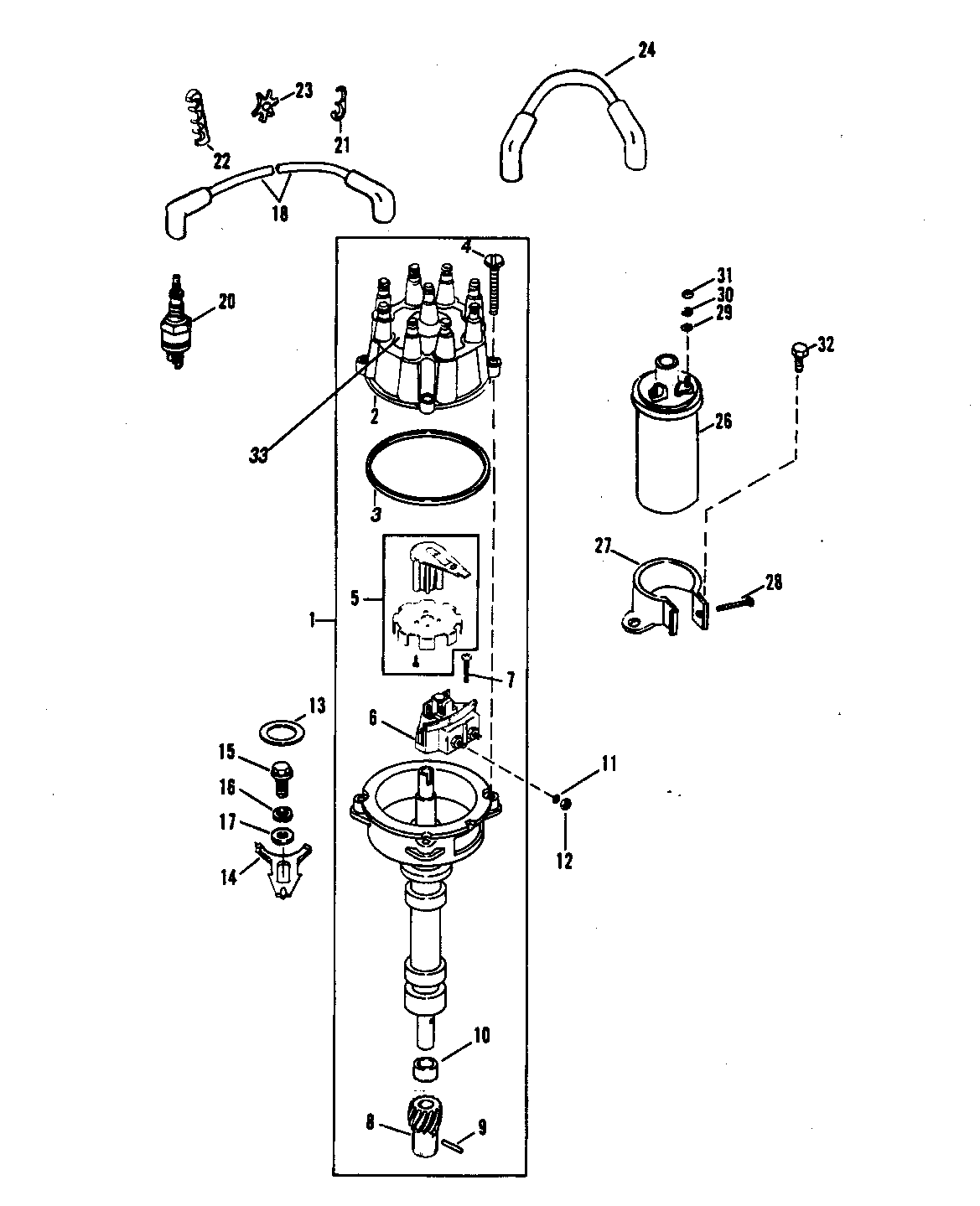

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 805185A36         DISTRIBUTOR ASSEMBLY 1 90747A27
2 805759T1         CAP ASSEMBLY 1 805759A2
3 27-805760         GASKET-Distributor Cap 1
4,5
4 10-90926         SCREW (10-32 x 13/16") 4

5 13524T1         WHEEL ASSEMBLY-Rotor Sensor 1 13524A5
6 87-892150Q02         SENSOR ASSEMBLY 1 87-91019A3
7 10-66686         SCREW (10-32 x 1") 1

7 10-72202         SCREW (10-32 x 1-1/4") 1

8 43-818807         GEAR-Drive 1

9 17-47617         PIN 1

10 23-90915         BUSHING 2

11 13-26996         LOCKWASHER (#10) 2

12 11-68219         NUT (10-32) 2

13 27-344863         GASKET 1
4,5
14 52185         CLAMP 1

15 10-34353         SCREW (3/8-16 x 1") 1

16 13-35048         LOCKWASHER (3/8") 1

17 12-20553         WASHER 1

18 84-816608Q61         CABLE KIT-Ignition-Spark Plugs (RED) 1 84-816608A61
18 84-847701Q7         CABLE KIT-Ignition-Spark Plugs & Coil (BLUE) 1 84-847701A7
20 33-898264001         SPARK PLUG 8 33-59571
21 54676         RETAINER (2 WIRE) 2

22 32783         RETAINER (3 WIRE) 2

23 32784         RETAINER (4 WIRE) 4

24 816674         WIRE ASSEMBLY-Coil (BLACK) 1   This Part is No Longer Available
26 300-8M0079202         COIL KIT-Ignition 1 392-805570A2 SERIAL 0D763732-0F213244
27 65970T1         BRACKET-Coil Mount (On Electrical Bracket) 1 65970T
27 77294T         BRACKET-Coil Mount (On Intake Manifold) 1   This Part is No Longer Available
28 10-41408         SCREW (10-32 x 1-1/2") 1

29 12-30164         WASHER 2

30 13-26996         LOCKWASHER (#10) 2

31 11-68219         NUT (10-32) 2

32 10-98261         SCREW (3/8-16 x 3/4") 2

33 37-92155         DECAL-Distributor Cap-Firing Order 1
