465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Transmission (Driveline)

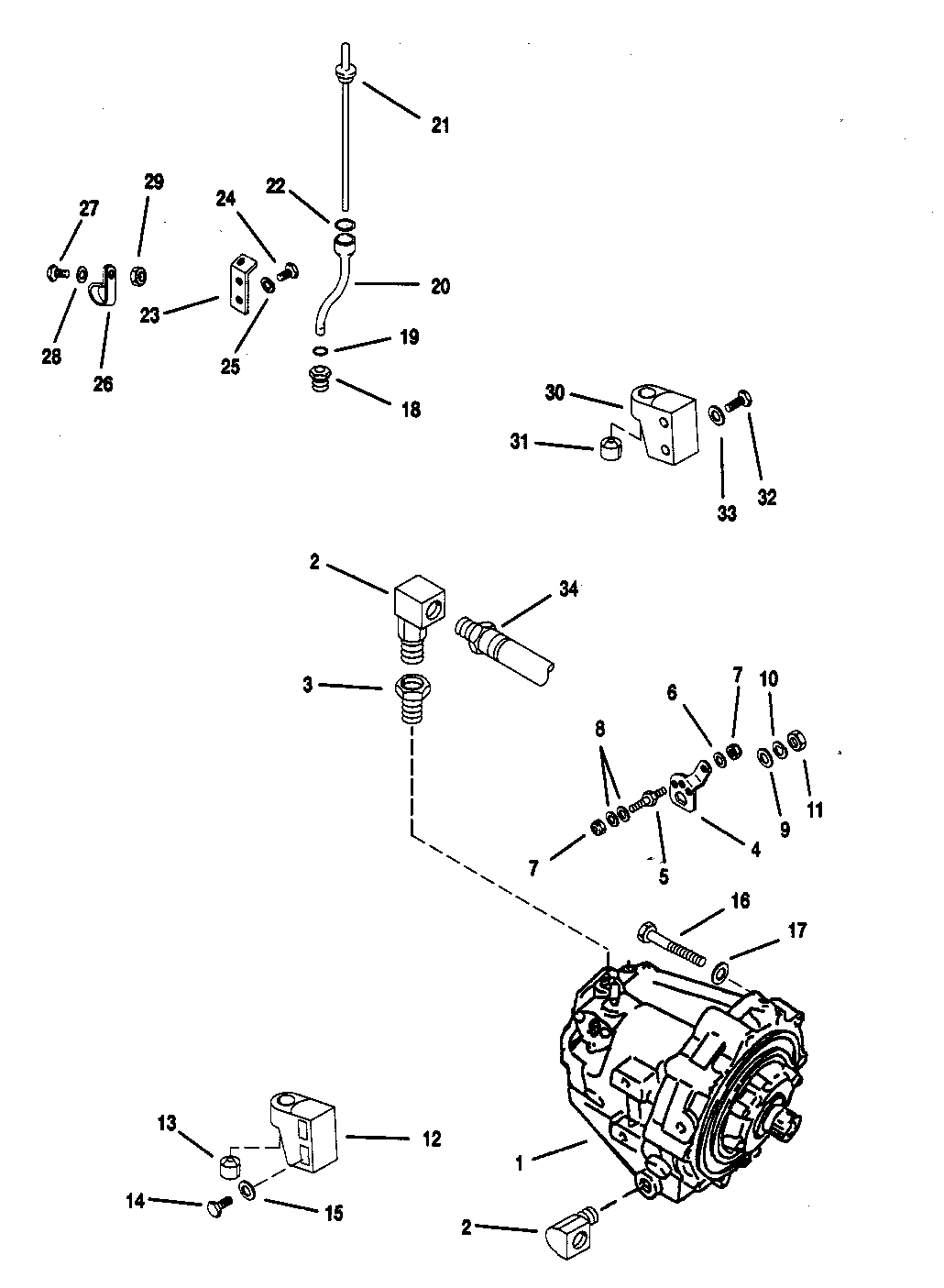

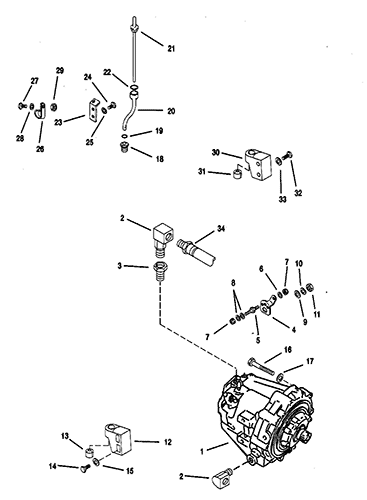

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841918A07         TRANSMISSION ASSEMBLY 1 14750A1
2 22-47629         ELBOW 2

3 22-88517         ADAPTOR 1

4 12128         LEVER-Shift 1

5 16-63335         STUD 1   This Part is No Longer Available
6 12-39143         WASHER 1

7 11-8267089         NUT (1/4-28) 2 11-20361
8 12-29245     700-21490   WASHER 2

9 12-20722         WASHER 1   This Part is No Longer Available
10 13-39107     700-21496   LOCKWASHER (5/16") 1

11 11-22053         NUT (5/16-24) 1

12 47334A2         BRACKET ASSEMBLY-Mounting (STARBOARD) 1   This Part is No Longer Available
13 35852         MOUNT 1

14 10-47462         SCREW (7/16-14 x 1-1/4") 2

15 13-32993         LOCKWASHER (7/16") 2

16 10-60179         SCREW (7/16-14 x 3-1/2") 6

17 13-32993         LOCKWASHER (7/16") 6

18 48461         ADAPTOR-Dipstick Tube to Transmission 1   This Part is No Longer Available
19 25-48462         O RING 1

20 48463         TUBE-Dipstick 1   This Part is No Longer Available
21 48464         DIPSTICK 1   This Part is No Longer Available
22 25-35276         O RING 1

23 48466         BRACKET-Dipstick Tube 1   This Part is No Longer Available
24 10-32417         SCREW (1/4-28 x 5/8") 2

25 13-26992         LOCKWASHER (1/4") 2

26 54-859172         CLAMP 1 54-67015
27 10-60300         SCREW (1/4-28 x 3/4") 1

28 12-29245     700-21490   WASHER 2

29 11-8267089         NUT (1/4-28) 1 11-20361
30 47340A1         BRACKET ASSEMBLY-Mounting (PORT) 1

31 35852         MOUNT 1

32 10-47462         SCREW (7/16-14 x 1-1/4") 2

33 13-32993         LOCKWASHER (7/16") 2

34 32-475166         HOSE ASSEMBLY (30") 2
