465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Shift Linkage

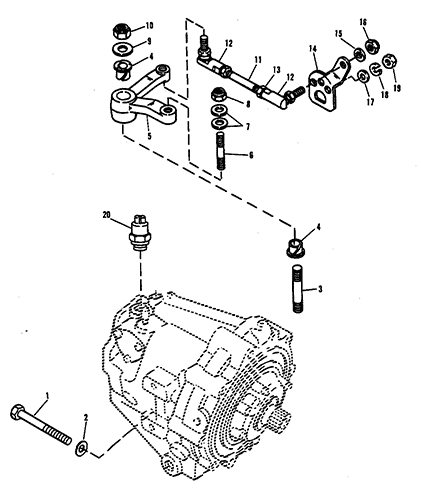

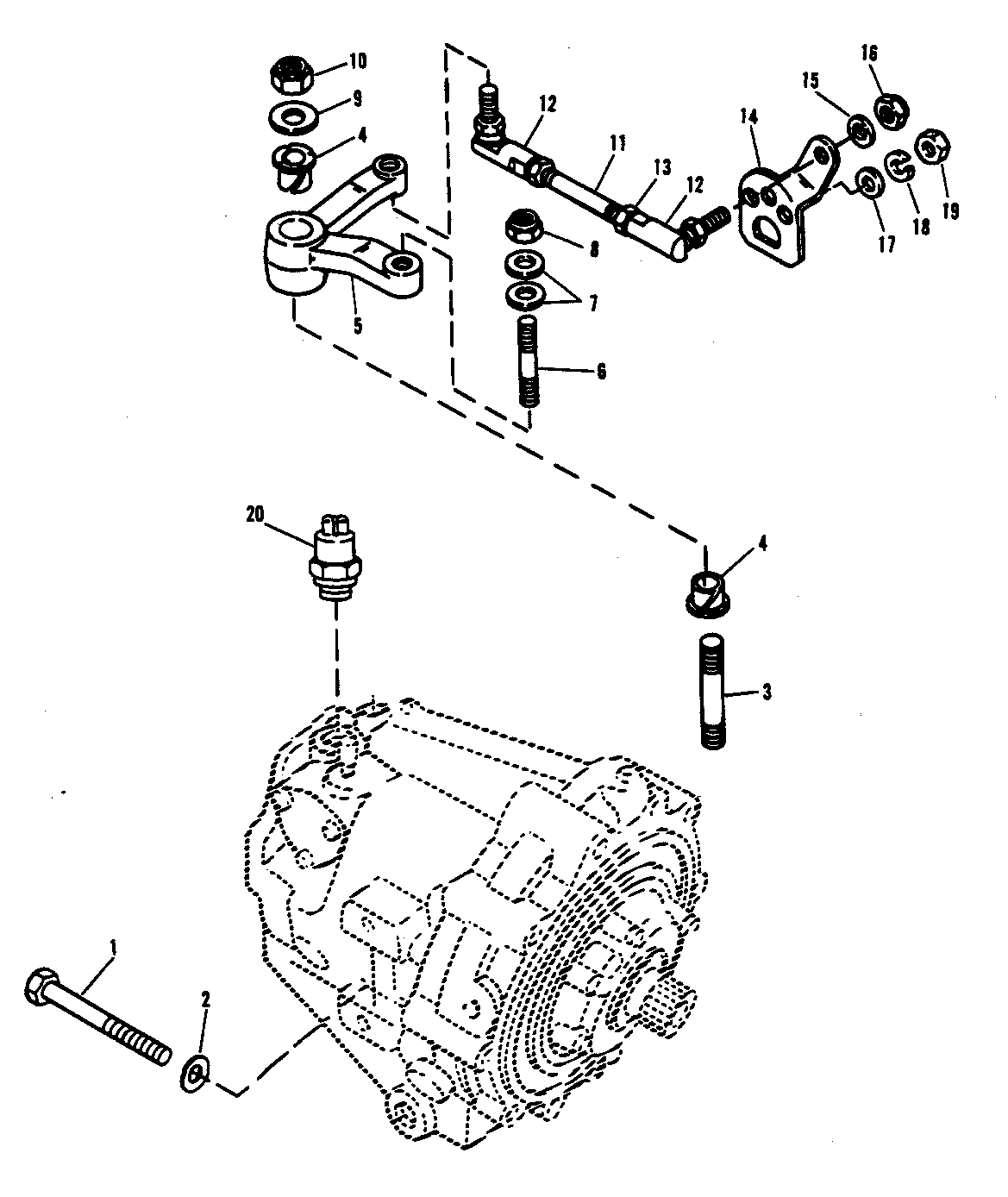

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 10-60179 | SCREW (7/16-14 x 3-1/2")-Transmission to Engine | 6 | ||||||
| 2 | 13-32993 | LOCKWASHER (7/16")-Transmission Screw | 6 | ||||||
| 3 | 16-8M0034438 | STUD-Shift Crank to Tailstock | 1 | 16-87163 | |||||
| 4 | 23-26954 | BUSHING-Shift Crank Stud | 2 | ||||||
| 5 | 98301A3 | SHIFT CRANK ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 6 | 16-728091 | STUD-Shift Crank | 1 | 16-72809 | |||||
| 7 | 12-69056 | WASHER-Shift Crank Stud | 2 | ||||||
| 8 | 11-35888 | 676-9-72001 | 700-21180 | NUT (1/4-28)-Shift Crank Stud | 1 | ||||
| 9 | 12-34931 | WASHER-Shift Crank Stud | 1 | ||||||
| 10 | 11-82671013 | NUT (3/8-24)-Shift Crank Stud | 1 | 11-34932 | |||||
| 11 | 98299A2 | SHIFT ROD ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 12 | 73393 | BALL JOINT | 2 | This Part is No Longer Available | |||||
| 13 | 11-25168 | NUT (1/4-28) | 2 | This Part is No Longer Available | |||||
| 14 | 12128 | LEVER-Shift-Transmission | 1 | ||||||
| 15 | 12-29245 | 700-21490 | WASHER-Shift Rod | 1 | |||||
| 16 | 11-35888 | 676-9-72001 | 700-21180 | NUT (1/4-28)-Shift Rod | 1 | ||||
| 17 | 12-20722 | WASHER-Shift Lever to Transmission | 1 | This Part is No Longer Available | |||||
| 18 | 13-26993 | LOCKWASHER (7/16")-Shift Lever to Transmission | 1 | ||||||
| 19 | 11-22053 | NUT (5/16-24)-Shift Lever to Transmission | 1 | ||||||
| 20 | 87-88031 | SWITCH-Temperature | 1 |
