465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Shift Bracket

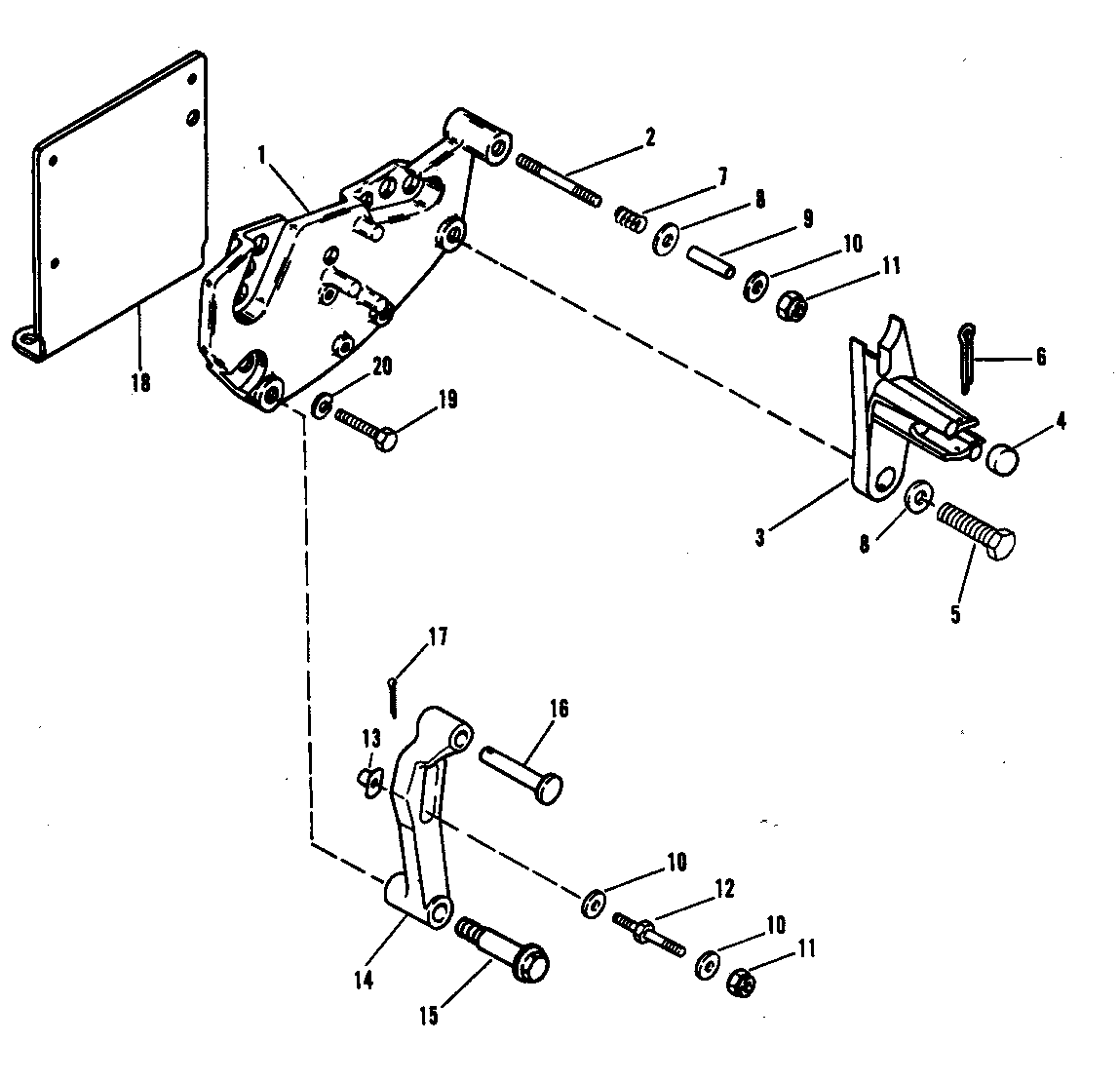

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY-Shift | 1 | 99237A10 | |||||
| 2 | 16-865154A02 | STUD-Shift Cable | 1 | 16-987981 | |||||
| 3 | 865434A02 | RETAINER-Shift Cable | 1 | 123811 | |||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 10-53167 | SCREW (5/16-18 x 7/8") | 1 | ||||||
| 6 | 18-328571 | PIN-Cotter-Shift Cable Retaining | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING-Shift Cable Stud | 1 | ||||||
| 8 | 12-56720 | WASHER-Shift Bracket Stud | 2 | ||||||
| 9 | 23-90523 | SPACER-Shift Cable Stud | 1 | ||||||
| 10 | 12-35462 | WASHER-Shift Cable Stud | 4 | ||||||
| 11 | 11-8267119 | NUT (1/4-28)-Shift Cable Stud | 2 | 11-13438 | |||||
| 12 | 16-96112 | STUD-Shift Cable | 1 | ||||||
| 13 | 11-63341 | TEE NUT-Shift Cable Stud | 1 | ||||||
| 14 | 863911A12 | LEVER-Shift | 1 | 138981 | |||||
| 15 | 10-13743 | SCREW (5/16-18 x 1-27/32")-Shoulder-Shift Lever | 1 | ||||||
| 16 | 17-68402 | PIN-Shoulder-Shift Lever | 1 | ||||||
| 17 | 18-210711 | PIN-Cotter-Shift Lever | 1 | 18-21071 | |||||
| 18 | 8M0052632 | ADAPTER | 1 | 816283 | |||||
| 19 | 10-98256 | SCREW (1/4-28 x 1/2") | 3 | ||||||
| 20 | 13-26992 | LOCKWASHER (1/4") | 3 |
