| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

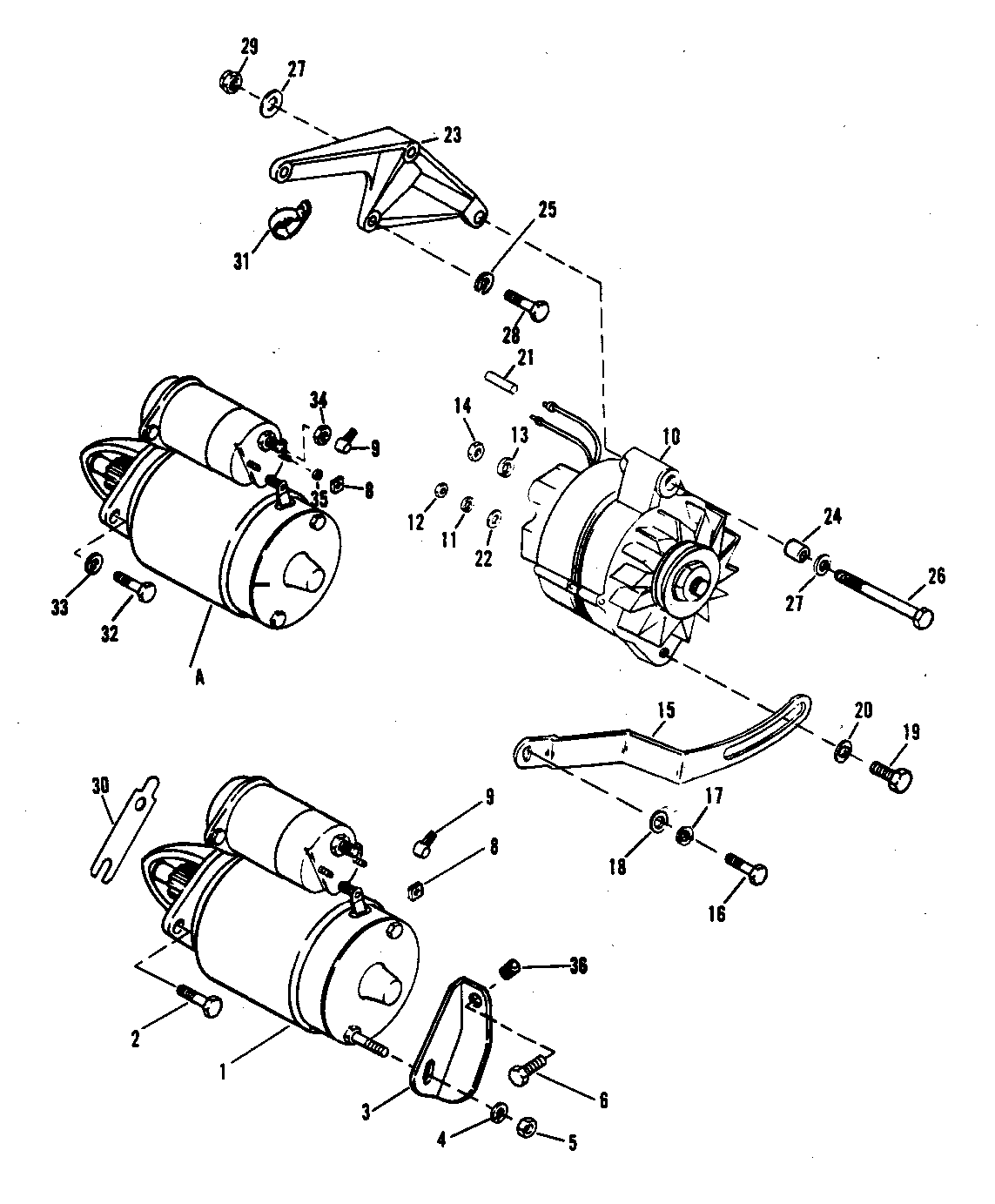

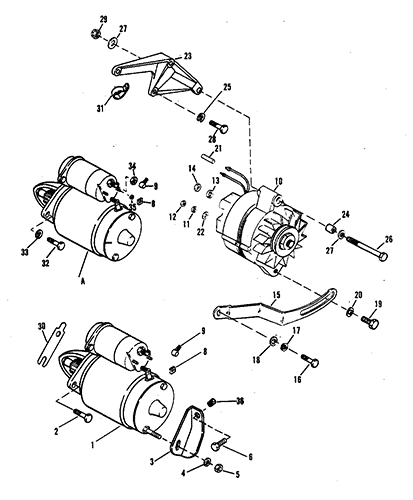

| 1 |
50-863007A1 |
|
|
|
|
STARTER ASSEMBLY |
1 |
50-99418A2 |
|
| 1A |
50-808011A05 |
|
|
|
|
STARTER ASSEMBLY(Transmission & Driveline Models) |
1 |
50-17251A3 |
|
| 2 |
10-94435001 |
|
|
|
|
SCREW (3/8-16 x 4-21/32")-Starter Motor |
2 |
10-94435 |
|
| 3 |
89057 |
|
|
|
|
BRACE-Starter Motor |
1 |
|
This Part is No Longer Available |
| 4 |
13-26996 |
|
|
|
|
LOCKWASHER (#10)-Starter Motor Stud |
1 |
|
|
| 5 |
11-15874 |
|
|
|
|
NUT (10MM)-Battery Terminal |
1 |
|
|
| 6 |
10-35765A1 |
|
|
|
|
SCREW & WASHER (5/16-18 x 5/8")-Brace to Engine |
1 |
|
|
| 8 |
11-400211 |
|
|
|
|
NUT (5MM)-Starter Switch Terminal |
1 |
|
|
| 9 |
85-79695T |
|
|
|
|
BOOT-Insulator-Starter Terminal |
1 |
85-79695 |
|
| 10 |
817119A4 |
620-3186M |
676-9-19101 |
|
|
ALTERNATOR ASSEMBLY (Black) |
1 |
|
|
| 10 |
8171191 |
|
|
|
|
ALTERNATOR ASSEMBLY (Blue) |
1 |
|
|
| 11 |
13-26996 |
|
|
|
|
LOCKWASHER (#10)-Alternator Terminal |
1 |
|
|
| 12 |
11-79989 |
|
|
|
|
NUT (10-24)-Alternator Terminal |
1 |
|
|
| 13 |
13-26992 |
|
|
|
|
LOCKWASHER (1/4")-Alternator Terminal |
1 |
|
|
| 14 |
11-8267098 |
|
|
|
|
NUT (1/4-20)-Alternator Terminal |
1 |
11-56374 |
|
| 15 |
85013T |
|
|
|
|
BRACE-Alternator Adjusting |
1 |
|
|
| 16 |
10-47462 |
|
|
|
|
SCREW (7/16-14 x 1-1/4")-Alternator Brace |
1 |
|
|
| 17 |
13-32993 |
|
|
|
|
LOCKWASHER (7/16")-Alternator Brace Screw |
1 |
|
|
| 18 |
12-31263 |
|
|
|
|
WASHER-Alternator Brace Screw |
1 |
|
|
| 19 |
10-29198 |
|
|
|
|
SCREW & LOCKWASHER (5/16-18 x 7/8")-Alt Brace |
1 |
|
|
| 20 |
12-26168 |
|
|
|
|
WASHER-Alternator Brace Screw |
1 |
|
|
| 21 |
5790811 |
|
|
|
|
SLEEVE-Alternator Lead |
1 |
|
|
| 22 |
12-96457 |
|
|
|
|
WASHER-Alternator Terminal |
1 |
|
|
| 23 |
815251T1 |
|
|
|
|
BRACKET KIT-Alternator Mount (3/8" Holes) |
1 |
815251A1 |
This Part is No Longer Available |
| 23 |
848146T |
|
|
|
|
BRACKET-Alternator Mount (7/16" Holes) |
1 |
848146 |
|
| 24 |
23-33186 |
|
|
|
|
BUSHING-Alternator Bracket Screw |
1 |
|
|
| 25 |
13-35048 |
|
|
|
|
LOCKWASHER (3/8")-Alternator Bracket Screw |
3 |
|
|
| 25 |
13-32993 |
|
|
|
|
LOCKWASHER (7/16")-Alternator Bracket Screw |
3 |
|
|
| 26 |
10-48308 |
|
|
|
|
SCREW (3/8-24 x 3-3/4")-Alternator |
1 |
|
|
| 27 |
12-20553 |
|
|
|
|
WASHER-Alternator Bracket Screw |
3 |
|
|
| 28 |
10-37612 |
|
|
|
|
SCREW (3/8-16 x 1-1/4")-Alternator Bracket |
1 |
|
|
| 28 |
10-34353 |
|
|
|
|
SCREW (3/8-16 x 1")-Alternator Bracket |
2 |
|
|
| 28 |
10-47462 |
|
|
|
|
SCREW (7/16-14 x 1-1/4")-Alternator Bracket |
1 |
|
|
| 28 |
10-47461 |
|
|
|
|
SCREW (7/16-14 x 1")-Alternator Bracket |
2 |
|
|
| 29 |
11-23161 |
|
|
|
|
NUT (3/8-24)-Alternator Bracket Screw |
1 |
|
|
| 30 |
15-817272 |
|
|
|
|
SHIM |
AR |
|
1 |
| 31 |
54-848130 |
|
|
|
|
CLIP-Hose-Circulating Pump |
1 |
|
No longer made, limited availability |
| 32 |
10-47461 |
|
|
|
|
SCREW (7/16-14 x 1") |
2 |
|
|
| 33 |
13-32993 |
|
|
|
|
LOCKWASHER (7/16") |
2 |
|
|
| 34 |
11-4013610 |
|
|
|
|
NUT (M10 x 1.5) |
1 |
11-400266 |
|
| 35 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
1 |
|
|
| 36 |
22-325611 |
|
|
|
|
PLUG (Special)-Mounting Bolt to Block |
1 |
|
|
