465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Oil Pan And Oil Pump (D725647-F213244)

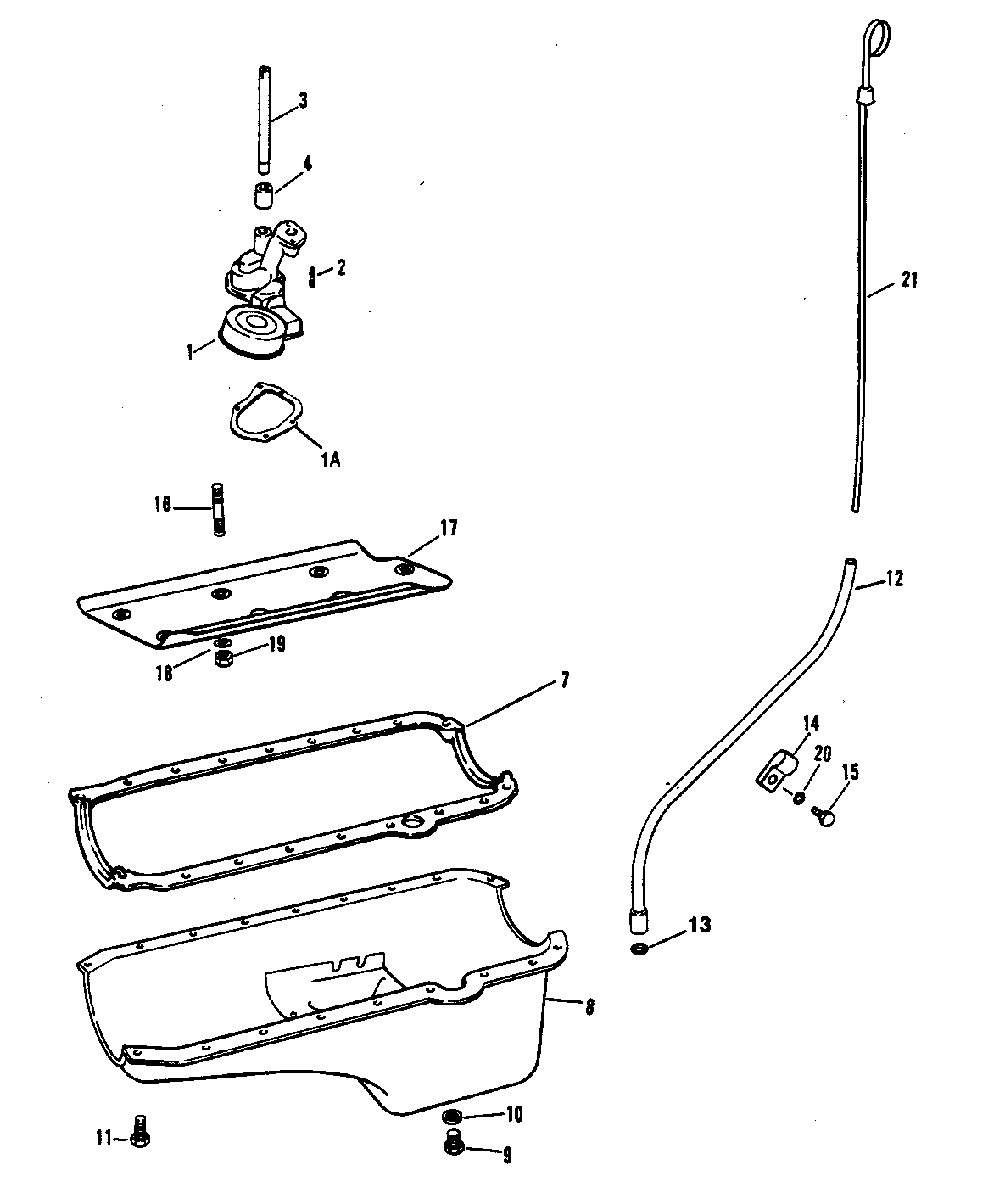

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827589T1 | PUMP ASSEMBLY-Oil | 1 | 827589A1 | |||||
| 1A | FI5000254 | GASKET-Oil Pump Cover | 1 | This Part is No Longer Available | |||||
| 2 | 16-845599 | STUD | 1 | 16-49108 | |||||
| 3 | 14761 | SHAFT | 1 | ||||||
| 4 | 23-36183 | RETAINER | 1 | ||||||
| 7 | 27-845628 | GASKET | 1 | 27-811566 | 5 | ||||
| 8 | 845668T | PAN ASSEMBLY-Oil | 1 | 811549 | |||||
| 9 | 22-808708 | PLUG-Oil Drain | 1 | ||||||
| 10 | 27-8M0077608 | GASKET-Oil Drain Plug | 1 | 27-49955 | |||||
| 11 | 10-841389 | SCREW (5/16-18 x 5/8") | 20 | 10-808707 | |||||
| 12 | 818631A6 | TUBE ASSEMBLY-Dipstick | 1 | ||||||
| 13 | 25-62704 | O RING | 1 | ||||||
| 14 | 54-822279 | CLIP | 1 | ||||||
| 15 | 10-66293 | SCREW (1/4-20 x 1/2") | 1 | This Part is No Longer Available | |||||
| 16 | 16-811683 | STUD | 5 | ||||||
| 17 | 843945T | BAFFLE | 1 | 811682 | |||||
| 18 | 12-20553 | WASHER | 5 | ||||||
| 19 | 11-37500 | NUT (3/8-16) | 5 | ||||||
| 20 | 13-26992 | LOCKWASHER (1/4") | 1 | ||||||
| 21 | 861942T9 | DIPSTICK-Oil Level | 1 | 805567T | |||||
| 22 | 822546A93 | COMPONENTS OF GASKET SET | - |
