465 (Gen 5) GM 502 V8 1992-1994 - Serial 0C849992 Thru 0F213244 - Mount Plates (Staggered)

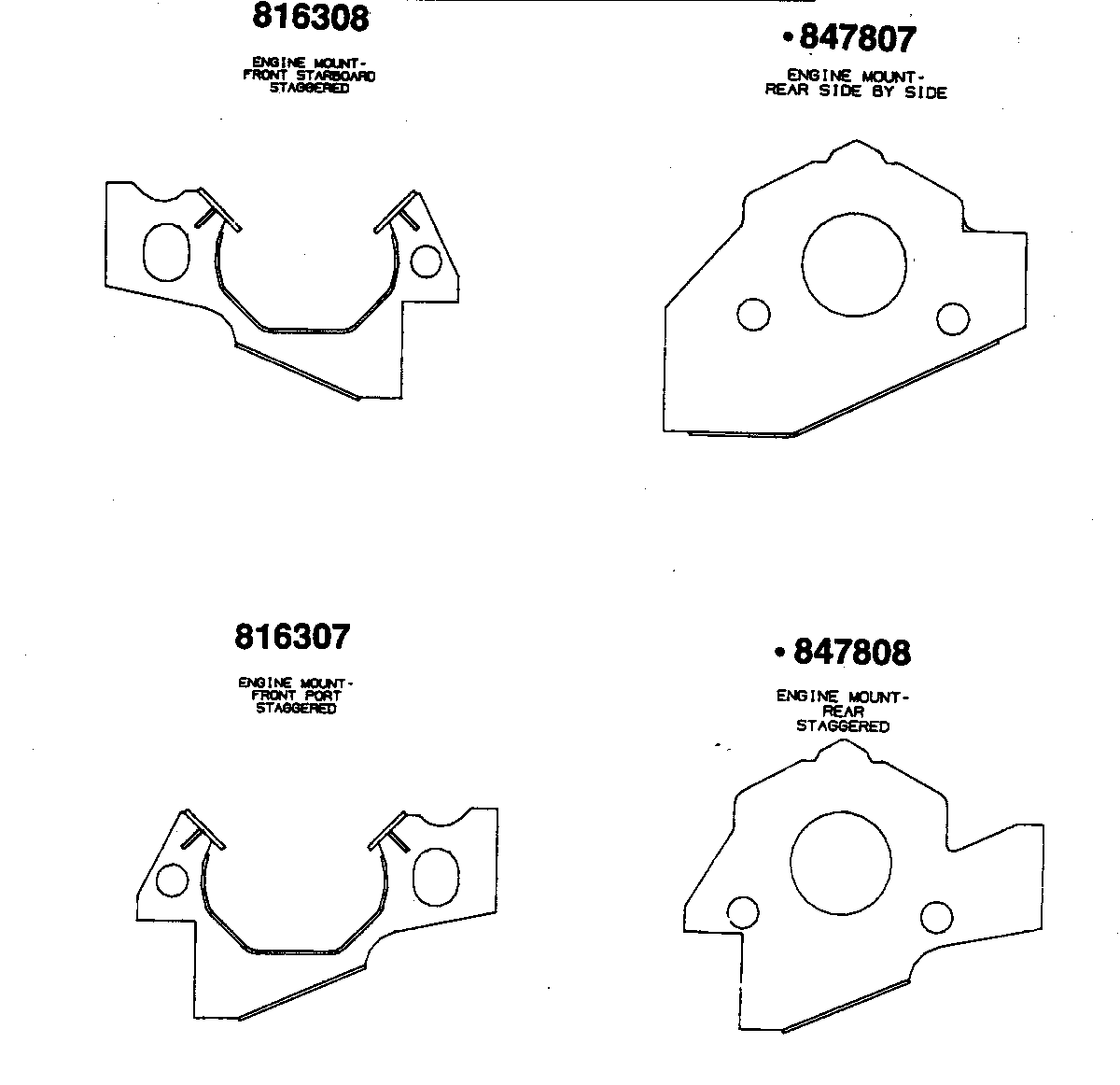

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 10-86518 | SCREW (3/8-16X1") | 6 | |||||||
| 12-20553 | WASHER | 6 | |||||||
| 849310T | ENGINE MOUNT (FRONT STARBOARD STAGGERED) | 816308 | |||||||
| 847807T | ENGINE MOUNT (REAR SIDE BY SIDE) | 847807 | This Part is No Longer Available | ||||||
| 849335T | ENGINE MOUNT (FRONT PORT STAGGERED) | 816307 | |||||||
| 847808T | ENGINE MOUNT (REAR STAGGERED) | 847808 |
