TR-TRS - Serial 4794900 and Up - Bell Housing

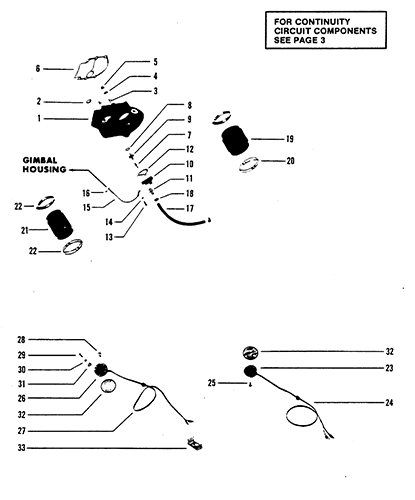

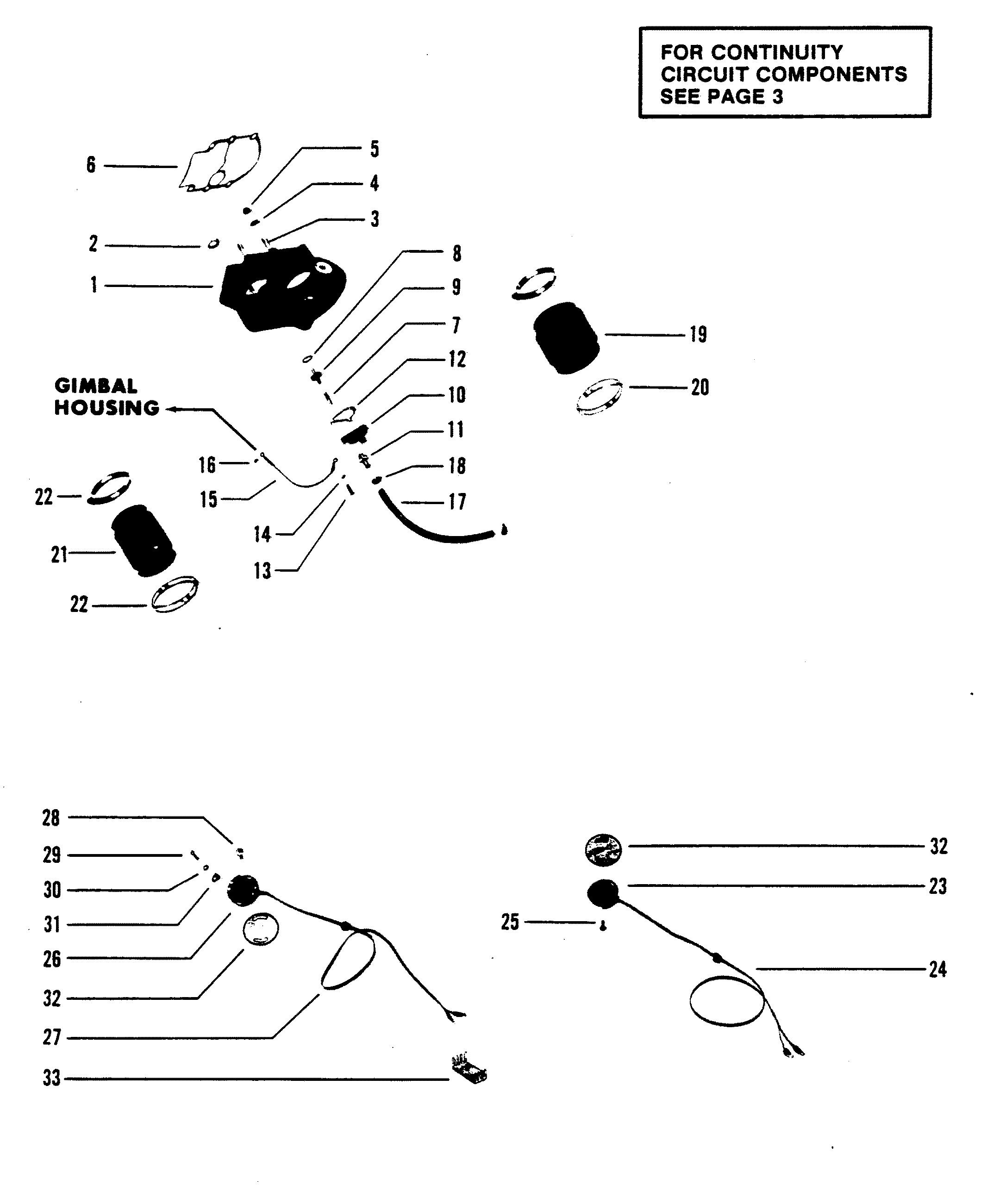

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 62814A3         BELL HOUSING ASSEMBLY 1

2 26-48443         OIL SEAL, BELL HOUSING 1

3 16-54011         STUD, BELL HOUSING (3-1/4") 6   This Part is No Longer Available
4 12-54012         WASHER, BELL HOUSING STUD 6

5 11-35000         NUT, BELL HOUSING STUD 6

6 27-54014Q1         GASKET, BELL HOUSING 1 27-54014A1
7 24-48442         SPRING, TENSION - OIL RELEASE CHECK VALVE 1

8 25-48452         QUAD RING, OIL RELEASE CHECK VALVE 1

9 20-48219         CHECK VALVE, OIL RELEASE 1

10 54170A1         COVER ASSEMBLY, CHECK VALVE GUIDE 1   This Part is No Longer Available
11 22-34982         CONNECTOR, CHECK VALVE GUIDE COVER 1

12 27-540211         GASKET, CHECK VALVE GUIDE COVER 1 27-54021 This Part is No Longer Available
13 10-36137         SCREW, CHECK VALVE GUIDE COVER (1") 3

14 13-26992         LOCKWASHER, CHECK VALVE GUIDE COVER SCREW 3

15 57292         JUMPER CABLE, GIMBAL HOUSING TO COVER 1   This Part is No Longer Available
16 10-47225         SCERW, JUMPER CABLE 1   This Part is No Longer Available
17 32-34423         HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (12-5/8") 1

18 54-815504104         CLAMP, HOSE 2 54-54428
19 60932A4         BELLOWS ASSEMBLY, UNIVERSAL JOINT 1

-- 54-86049   676-9-73116 700-89440   CLIP, GROUNDING 2

20 54-815504372     700-01100   CLAMP, BELLOWS 2 54-31765
21 78632A1         TUBE, EXHAUST 1

22 54-815504360         CLAMP, EXHAUST BELLOWS 2 54-38889
23 805320A2         SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE) 1 96863A10
24 84-19279         HARNESS, TRIM LIMIT SWITCH (PORT SIDE) 1 84-63405 This Part is No Longer Available
25 10-63400         SCEW, HARNESS ATTACHING (5/23") (PORT SIDE) 2
No longer made, limited availability
26 64947         SENDER, DUMMY (STARBOARD SIDE) 1
This is a plastic dummy sender only, it does not do anything.
27 84-64987         HARNESS, DUMMY SENDER (STARBOARD SIDE) 1   This Part is No Longer Available
28 19-96069         PLUG, HARNESS ATTACHING (STARBOARD SIDE) 2   This Part is No Longer Available
29 10-37978         SCREW, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4") 4

30 13-26996         LOCKWASHER, TRIM SENDER AND SWITCH SCREW 4

31 57008         RETAINER, TRIM SENDER AND SWITCH SCREW 4

32 85-63990         INSULATOR, SWITCH AND SENDER 2

33 79146         RETAINER, CONNECTOR - TRIM SWITCH LEADS 1

- 805320A2         SINGLE STATION SENDER KIT (OPTIONAL) 1 96863A11
- 805130A8         DUAL STATION SENDER KIT (OPTIONAL) 1
- 42385A7         GIMBAL RING KIT -
