TR-TRS - Serial 4794900 and Up - Trim Cylinders And Hoses (External Lines)

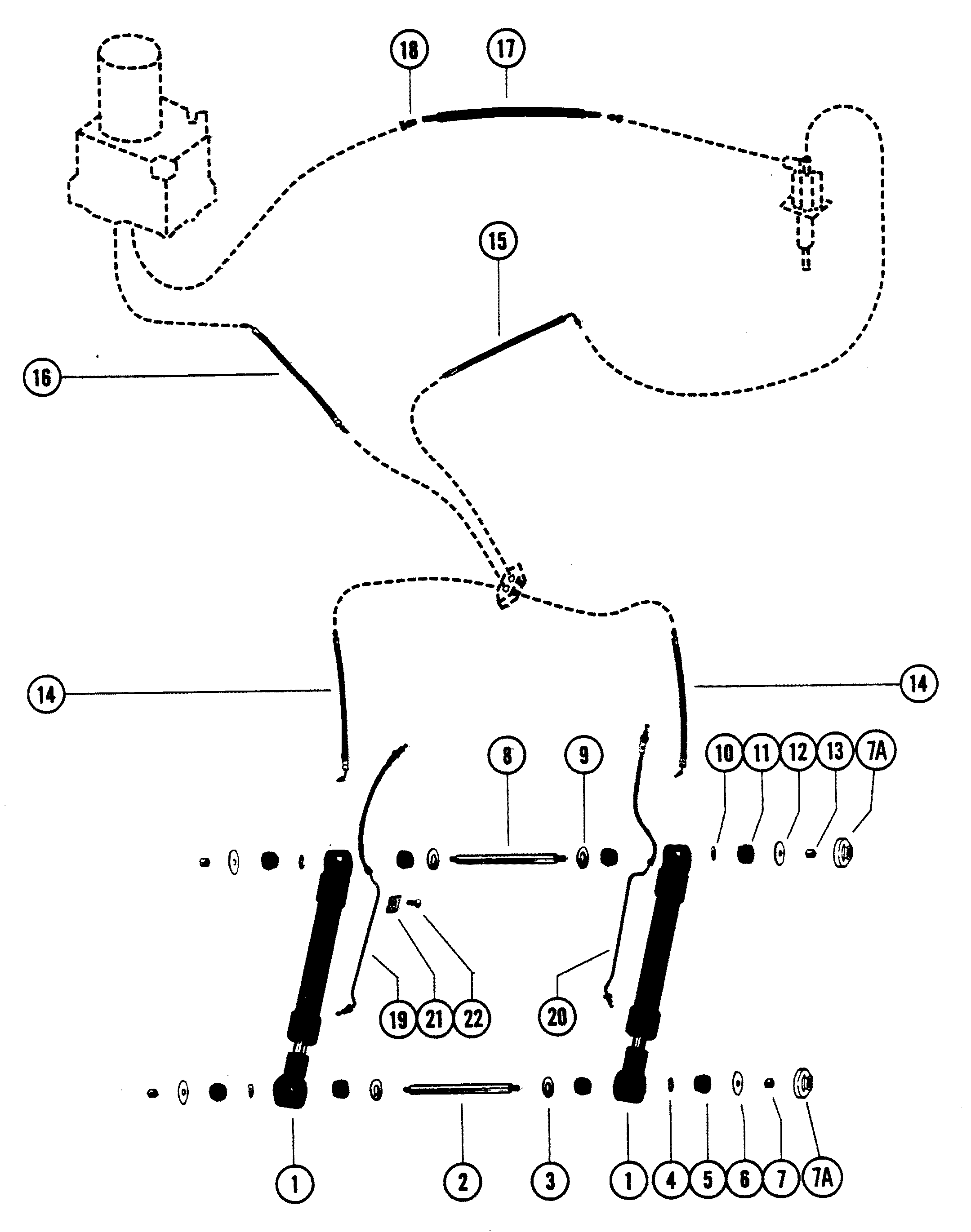

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
-- 87412A3



TRIM CYLINDER ASS'Y, COMPLETE (STBD.) 1
SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN
1 87411A3



TRIM CYLINDER ASS'Y, COMPLETE (PORT) 1
SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN
2 17-14874A1



ANCHOR PIN, REAR (1/2-20 THREADS) 1 17-49279
3 12-89664



WASHER, ANCHOR PIN (1/2-20 THREADS) 2

4 24-49593



SPRING, ANCHOR PIN (1/2-20 THREADS) 2
No longer made, limited availability
5 23-90203



BUSHING, RUBBER (1/2-20 THREADS) 4

6 12-89665



WASHER, ANCHOR PIN (1/2-20 THREADS) 2

7 11-35000



NUT, ANCHOR PIN (1/2-20 THREADS) 2

8 17-14875A1



ANCHOR PIN, FRONT (1/2-20 THREADS) 1 17-47374
9 12-89664



WASHER, ANCHOR PIN (1/2-20 THREADS) 2

10 24-49593



SPRING, ANCHOR PIN (1/2-20 THREADS) 2
No longer made, limited availability
11 23-90203



BUSHING, RUBBER (1/2-20 THREADS) 4

12 12-89665



WASHER, ANCHOR PIN (1/2-20 THREADS) 2

13 11-35000



NUT, ANCHOR PIN (1/2-20 THREADS) 2

2 17-14874A1



PIN ASSEMBLY, ANCHOR (REAR) (7/16-20 THREADS) 1

3 12-89664



WASHER, REAR ANCHOR PIN (7/16-20 THREADS) 2 12-47395
5 23-90203



BUSHING, RUBBER (7/16-20 THREADS) 4

6 12-44163



WASHER, REAR ANCHOR PIN (7/16-20 THREADS) 2

7 11-859116



NUT, REAR ANCHOR PIN (7/16-20 THREADS) 2 11-134391
7A 19-14842
676-9-77200 700-26480
CAP, REAR ANCHOR PIN (7/16-20 THREADS) 2

8 17-14875A1



PIN ASSEMBLY, ANCHOR (FRONT) (7/16-20 THREADS) 1

9 12-89664



WASHER, FRONT ANCHOR PIN (7/16-20 THREADS) 2

11 23-90203



BUSHING, RUBBER (7/16-20 THREADS) 4

12 12-44163



WASHER, FRONT ANCHOR PIN (7/16-20 THREADS) 2

13 11-859116



NUT, FRONT ANCHOR PIN (7/16-20 THREADS) 2 11-134391
7A 19-14842
676-9-77200 700-26480
CAP, FRONT ANCHOR PIN 97/16-20 THREADS) 2

14 32-86036Q



HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2") 2 32-86036
15 32-63158A1



HOSE, CONNECTOR TO VALVE (25")- PRESTOLITE PUMP 1
16 32-63157A1



HOSE, CONNECTOR PUMP (50-1/2") -PRESTOLITE PUMP 1
15 32-97010A1



HOSE, CONNECTOR TO VALVE (47-1/2") -OILDYNE PUMP 1
16 32-97009A1



HOSE, CONNECTOR TO PUMP (46")- OILDYNE PUMP 1
17 32-58432A2



TUBING ASS'Y, PUMP TO REVERSE LOCK VALVE (40") 1
18 22-49718



NUT, COMPRESSION - HYDRAULIC TUBING 2
19 32-87558



HOSE, PORT CYLINDER 1
20 32-87559



HOSE, STARBOARD CYLINDER 1
21 85060



PLATE, CLAMPING - HYDRAULIC HOSE 2
22 10-85486



SCREW, CLAMPING PLATE 4
