| Note: DO NOT SUBSTITUTE "O" RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL |

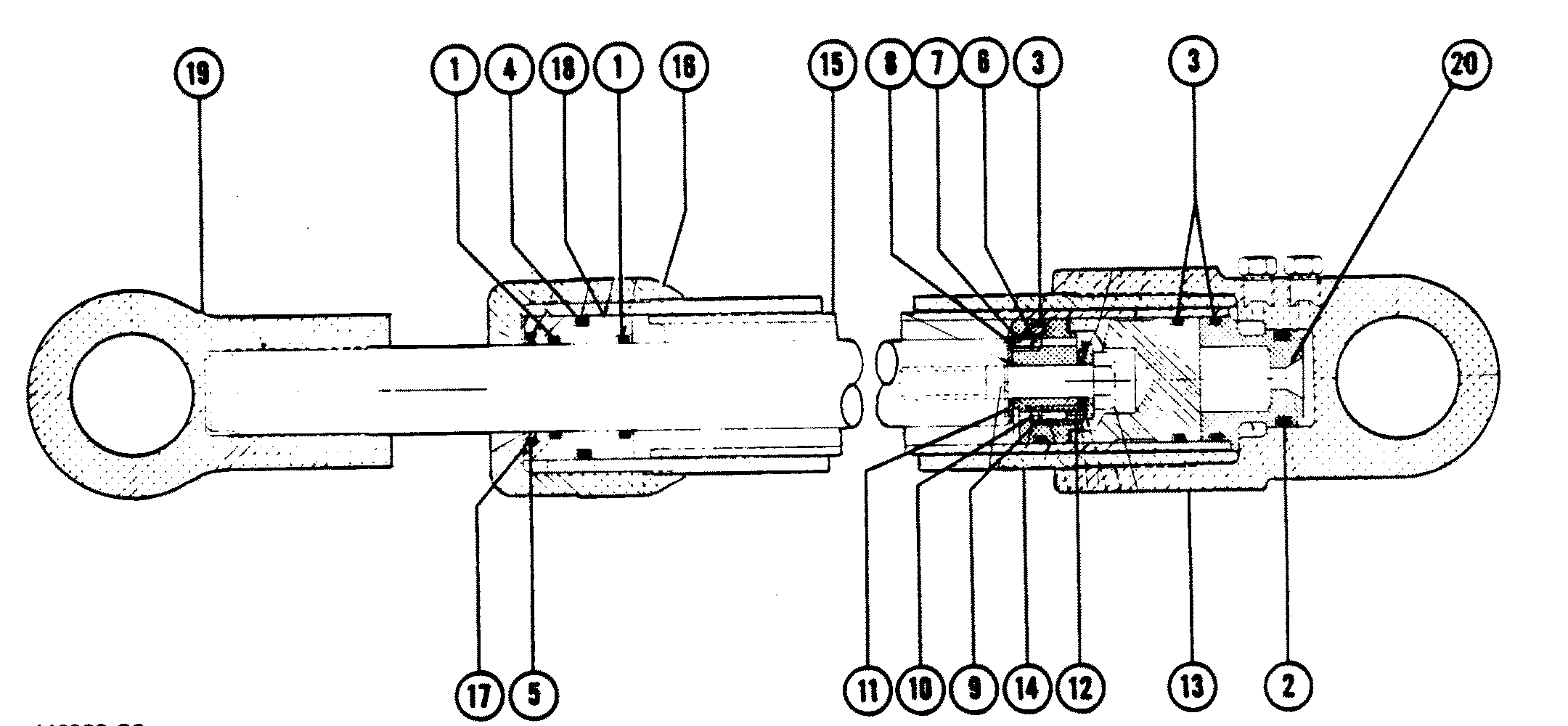

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| -- |
25-47389A2 |
|
|
|
|
O-RING KIT |
1 |
25-47389A1 |
|
| 1 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE O-RING (1" X 1-3/16" X 3/32") |
2 |
|
This part sold separately 14 |
| 2 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE O-RING (7/8" X 1-1/8" X 1/8") |
1 |
|
This part sold separately14 |
| 3 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE O-RING (1-1/4" X 1-7/16" X 3/32") |
3 |
|
This part sold separately14 |
| 4 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE O-RING (1-3/8" X 1-5/8" X 1/8") |
1 |
|
This part sold separately14 |
| 5 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE ROD SCRAPER |
1 |
|
This part sold separately14 |
| -- |
47348A1 |
|
|
|
|
SHOCK PISTON ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 6 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE BALL, STEEL |
8 |
|
This part sold separately14 |
| 7 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE RIVET, TUBULAR |
1 |
|
This part sold separately14 |
| 8 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE SPRING, COMPRESSION |
1 |
|
This part sold separately14 |
| 9 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE RIVET, TUBULAR |
7 |
|
This part sold separately14 |
| 10 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE PISTON, SHOCK |
1 |
|
This part sold separately14 |
| 11 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE WASHER, SEALING |
1 |
|
This part sold separately14 |
| 12 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE SPRING, COMPRESSION |
7 |
|
This part sold separately14 |
| -- |
47342A22 |
|
|
|
|
OUTER CYLINDER ASSEMBLY, 13-3/4" IN LENGTH |
1 |
47342A9 |
|
| 13 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE END CAP, CYLINDER |
1 |
|
This part sold separately14 |
| 14 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE TUBE, OUTER - 13-3/4" IN LENGTH |
1 |
|
This part sold separately14 |
| -- |
47342A25 |
|
|
|
|
OUTER CYLINDER ASSEMBLY, 11-3/8" IN LENGTH |
1 |
47342A10 |
This Part is No Longer Available |
| 13 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE END CAP, CYLINDER |
1 |
|
This part sold separately14 |
| 14 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE TUBE, OUTER - 11-3/8" IN LENGTH |
1 |
|
This part sold separately14 |
| 15 |
32-47387 |
|
|
|
|
INNER CYLINDER TUBE ASS'Y (12-1/2" IN LENGTH) |
1 |
32-47387A1 |
|
| 15 |
32-49275A1 |
|
|
|
|
INNER CYLINDER TUBE ASS'Y (10-1/8" IN LENGTH) |
1 |
|
This Part is No Longer Available |
| -- |
55825A1 |
|
|
|
|
END CAP ASSEMBLY |
1 |
|
|
| 16 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE END CAP |
1 |
|
This part sold separately14 |
| 17 |
N.S.S. |
|
|
|
|
NOT SOLD SEPARATE WASHER, END CAP |
1 |
|
This part sold separately14 |
| -- |
23-57093A1 |
|
|
|
|
BUSHING KIT |
1 |
|
This Part is No Longer Available |
| 18 |
55824 |
|
|
|
|
BEARING, PISTON ROD |
1 |
|
|
| 19 |
47343T |
|
|
|
|
PIVOT END |
1 |
47343 |
No longer made, limited availability |
| 20 |
47344 |
|
|
|
|
GUIDE, INNER TUBE |
1 |
|
|
