| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| -- |

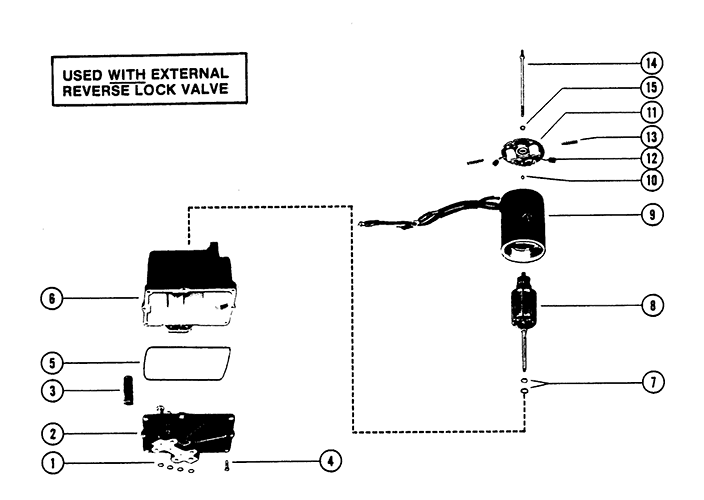

93247A7 |
|
|
|
|
HYDRAULIC PUMP ASSEMBLY, COMPLETE |
1 |
79271A4 |
|
| 1 |
25-48171 |
|
|
|
|
O-RING, HYDRAULIC PUMP |
4 |
|
|
| 2 |
392-7734 |
|
|
|
|
VALVE BODY AND GEAR ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 3 |
392-2618 |
|
|
|
|
CAN, VALVE BODY |
1 |
|
This Part is No Longer Available |
| 4 |
10-20411 |
|
|
|
|
SCREW, VALVE BODY TO RESERVOIR (5/8") |
8 |
|
no longer made, limited availability |
| 5 |
392-7735 |
|
|
|
|
SEAL, RESERVOIR TO VALVE BODY AND GEAR |
1 |
392-2937 |
|
| 6 |
392-2939 |
|
|
|
|
RESERVOIR ASSEMBLY (METAL) |
1 |
|
This Part is No Longer Available |
| 7 |
392-2623 |
|
|
|
|
WASHER, THURST - ARMATURE |
AR |
|
This Part is No Longer Available 22 |
| 8 |
392-2943 |
|
|
|
|
ARMATURE, FIELD AND FRAME |
1 |
|
|
| 9 |
392-2942 |
|
|
|
|
FIELD AND FRAME ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 10 |
392-2944 |
|
|
|
|
BALL, COMMUTATOR END PLATE |
1 |
|
no longer made, limited availability |
| 11 |
392-2940 |
|
|
|
|
PLATE ASSEMBLY, COMMUTATOR END |
1 |
|
|
| 12 |
392-8989 |
|
|
|
|
BRUSH SET, COMMUTATOR END PLATE |
1 |
392-2941 |
|
| 13 |
392-2529 |
|
|
|
|
SPRING SET BRUSH TENSION |
1 |
|
|
| 14 |
392-2938 |
|
|
|
|
BOLT SET, THRU - PLATE AND FRAME |
1 |
|
This Part is No Longer Available |
| 15 |
13-26996 |
|
|
|
|
LOCKWASHER, THRU BOLT |
2 |
|
|
