| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

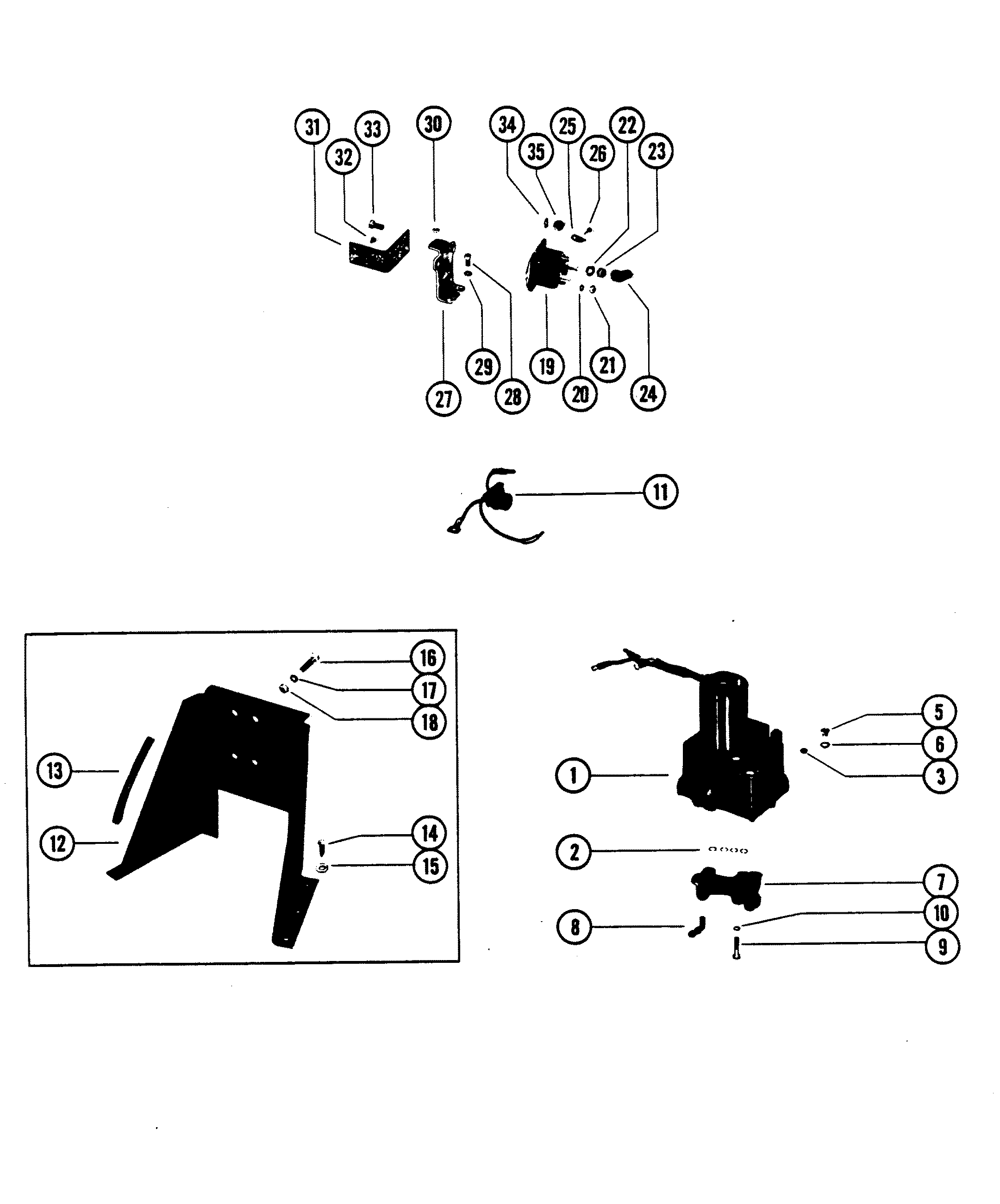

| 1 |
93247A7 |
|
|
|
|
HYD PUMP ASS'Y (PLASTIC RESERVOIR) |
1 |
88475A5 |
11,12 |
| 1 |
93247A7 |
|
|
|
|
HYD PUMP ASS'Y (PLASTIC RESERVOIR) |
1 |
93247A4 |
11,12 |
| 1 |
93247A7 |
|
|
|
|
HYD PUMP ASS'Y (METAL RESERVOIR) |
1 |
79271A4 |
|
| 1 |
25-48171 |
|
|
|
|
O-RING, HYDRAULIC PUMP |
4 |
|
|
| 3 |
10-22028 |
|
|
|
|
SCREW, VENT - HYDRAULIC PUMP |
1 |
10-46918 |
No longer made, limited availability |
| 5 |
10-79953Q04 |
|
|
|
|
SCREW, FILTER |
1 |
10-79953 |
|
| 6 |
12-191833 |
|
|
|
|
WASHER, SEALING - FILTER SCREW |
1 |
12-20260 |
|
| 7 |
48077T3 |
|
|
|
|
CONTROL VALVE ASSEMBLY |
1 |
48077A3 |
NOT USED WITH 93247A4 HYDRAULIC PUMP |
| -- |
25-48171 |
|
|
|
|
O-RING, PUMP TO VALVE (SAME AS REF. #2) |
4 |
|
NOT USED WITH 93247A4 HYDRAULIC PUMP |
| 8 |
22-52666 |
|
|
|
|
ELBOW, CONTROL VALVE |
1 |
|
This Part is No Longer Available NOT USED WITH 93247A4 HYDRAULIC PUMP |
| 9 |
10-21091 |
|
|
|
|
SCREW, CONTROL VALVE (1-1/8") |
4 |
|
This Part is No Longer Available NOT USED WITH 93247A4 HYDRAULIC PUMP No longer made, limited availability |
| 10 |
13-26992 |
|
|
|
|
LOCKWASHER, CONTROL VALVE SCREW |
4 |
|
NOT USED WITH 93247A4 HYDRAULIC PUMP |
| 11 |
84-74023A1 |
|
|
|
|
CONNECTOR AND HARNESS (USE WITHOUT FUSE) |
1 |
|
This Part is No Longer Available |
| 11 |
84-79147A3 |
|
|
|
|
CONNECTOR AND HARNESS (USE WITH FUSE) |
1 |
|
|
| 12 |
862548A1 |
|
|
|
|
BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP |
1 |
88893A4 |
|
| 13 |
58491 |
|
|
|
|
BUMPER, RUBBER |
2 |
|
|
| 14 |
10-59784 |
|
|
|
|
SCREW, PUMP MOUNTING BRACKET (1") |
6 |
|
|
| 15 |
12-29245 |
|
|
|
|
WASHER, PUMP MOUNTING BRACKET SCREW |
6 |
|
|
| 16 |
10-35386 |
|
|
|
|
SCREW, HYDRAULIC PUMP (1") |
4 |
|
|
| 17 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, HYDRAULIC PUMP SCREW |
|
|
|
| 18 |
11-21908 |
|
|
|
|
NUT, HYDRAULIC PUMP SCREW |
4 |
|
|
| 19 |
89-853654A1 |
|
676-9-15111 |
700-72370 |
|
TRIM MOTOR SOLENOID |
2 |
89-68258A4 |
|
| 20 |
13-26996 |
|
|
|
|
LOCKWASHER, STARTER SOLENOID TERMINAL (#10) |
4 |
|
|
| 21 |
11-68219 |
|
|
|
|
NUT, STARTER SOLENOID TERMINAL (#10) |
4 |
|
|
| 22 |
13-26993 |
|
|
|
|
LOCKWASHER, STARTER SOLENOID TERMINAL (5/16") |
4 |
|
|
| 23 |
11-68292 |
|
|
|
|
NUT, STARTER SOLENOID TERMINAL (5/16" -18) |
4 |
|
|
| 24 |
46265 |
|
|
|
|
BOOT, RUBBER - STARTER SOLENOID TERMINAL |
3 |
|
|
| 25 |
53-78201 |
|
|
|
|
BRACKET, STARTER SOLENOID TERMINAL |
1 |
26551 |
|
| 26 |
10-62568 |
|
|
|
|
SCREW, HYDRAULIC PUMP LEAD TO BRACKET (3/8") |
1 |
|
|
| 27 |
74407T |
|
|
|
|
BRACKET, MOUNTING - STARTER SOLENOID |
1 |
|
This Part is No Longer Available |
| 28 |
10-28638 |
|
|
|
|
SCEW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2") |
2 |
10-48063 |
|
| 29 |
13-26992 |
|
|
|
|
LOCKWASHER, MOUNTING BRACKET SCREW |
2 |
|
|
| 30 |
11-24656 |
|
|
|
|
NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT |
1 |
|
This Part is No Longer Available |
| 31 |
74406 |
|
|
|
|
BRACKET STARTER SOLENOID MOUNTING |
1 |
|
This Part is No Longer Available |
| 32 |
269011 |
|
|
|
|
BUMPER, HYDRAULIC PUMP TO MOUNTING BRACKET |
1 |
26901 |
|
| 33 |
10-34290 |
|
|
|
|
SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8") |
2 |
|
|
| 33 |
10-69028 |
|
|
|
|
SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4") |
2 |
|
|
| 34 |
13-26992 |
|
|
|
|
LOCKWASHER, STARTER SOLENOID SCREW |
4 |
|
|
| 35 |
11-21825 |
|
|
|
|
NUT, STARTER SOLENOID SCREW |
4 |
|
|
