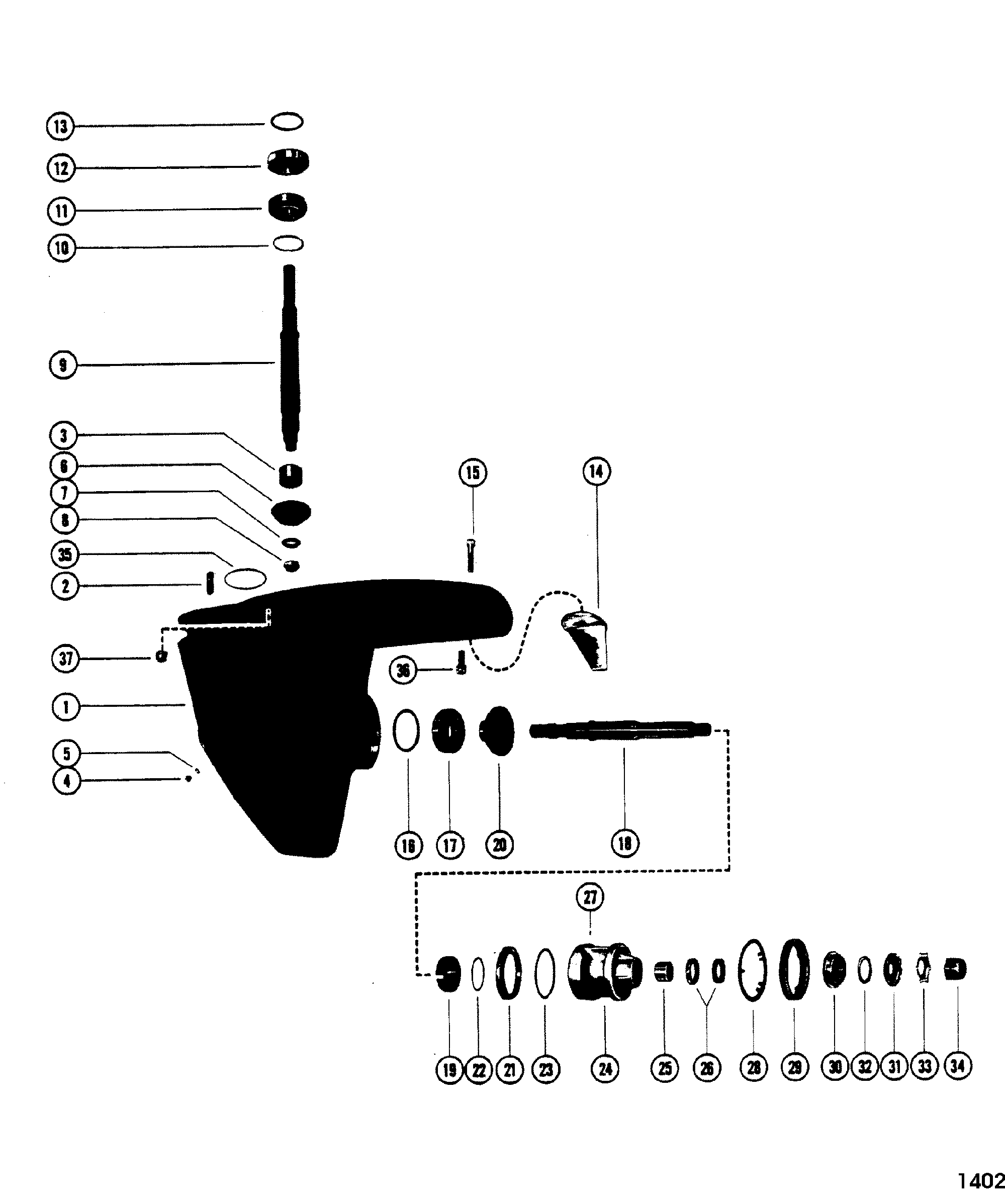

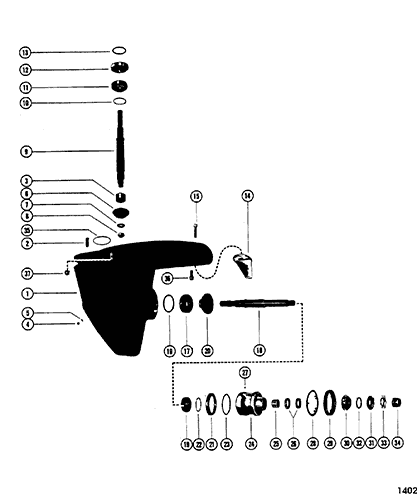

| Note: OVERALL DRIVE RATIO WILL BE 1.5:1 USING THE 17/17 HEAVY DUTY GEAR SET ON TR DRIVES |
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| -- |
1641-4855A13 |
|
|
|
|
GEAR HSG ASS'Y, COMPLETE (LEFT HAND ROTATION) |
1 |
|
This Part is No Longer Available |
| -- |
1641-4855A14 |
|
|
|
|
GEAR HSG ASS'Y, COMPLETE (RIGHT HAND ROTATION) |
1 |
|
This Part is No Longer Available |
| 1 |
1641-4855A6 |
|
|
|
|
GEAR HOUSING ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 2 |
16-57982 |
|
|
|
|
STUD, GEAR HOUSING (1-7/8") |
1 |
|
|
| 3 |
31-35246 |
|
|
|
|
ROLLER BRG, DRIVE SHAFT |
1 |
|
|
| 4 |
10-79953Q04 |
|
|
|
|
SCREW, VENT - GEAR HOUSING |
1 |
10-79953 |
|
| 5 |
12-191833 |
|
|
|
|
WASHER, SEAL - VENT SCREW |
1 |
12-20260 |
|
| 6 |
43-62880T1 |
|
|
|
|
PINION GEAR (16 TEETH) |
1 |
43-62880T |
|
| 7 |
12-54048 |
|
|
|
|
WASHER, PINION GEAR TO DRIVE SHAFT |
1 |
|
|
| 8 |
11-55819 |
|
|
|
|
NUT, PINION GEAR TO DRIVE SHAFT |
1 |
|
|
| 9 |
45-62783T |
|
|
|
|
DRIVE SHAFT |
1 |
|
This Part is No Longer Available |
| 10 |
15-26320A1 |
|
|
|
|
SHIM ASS'Y, ROLLER BEARING TO GEAR HOUSING |
AR |
|
This Part is No Longer Available 22 |
| 11 |
31-48941A1 |
|
|
|
|
TAPERED ROLLER BEARING ASS'Y, DRIVE SHAFT |
1 |
|
This Part is No Longer Available |
| 12 |
31-35990A1 |
|
|
|
|
TAPERED ROLLER BEARING ASS'Y, DRIVE SHAFT |
1 |
|
|
| 13 |
25-54030 |
|
|
|
|
O-RING, GEAR HOUSING |
1 |
|
|
| 14 |
31640Q4 |
|
|
|
|
TIRM TAB ASSEMBLY, GEAR HOUSING |
1 |
31640A1 |
|
| 15 |
10-41350 |
|
|
|
|
SCREW, TRIM TAB TO GEAR HOUSING (2-1/2") |
1 |
|
|
| 16 |
15-55499A1 |
|
|
|
|
SHIM ASS'Y, ROLLER BEARING (LEFT HAND ROTATION) |
AR |
|
22 |
| 17 |
31-54038A1 |
|
|
|
|
TAPERED ROLLER BEARING ASS'Y (LEFT HAND ROTATION) |
1 |
|
|
| 18 |
44-62820T1 |
|
|
|
|
PROPELLER SHAFT (LEFT HAND ROTATION) |
1 |
44-62820 |
|
| 19 |
31-54036A1 |
|
|
|
|
TAPERED ROLLER BEARING ASS'Y (LEFT HAND ROTATION) |
1 |
|
|
| 16 |
15-47397A1 |
|
|
700-23220 |
|
SHIM ASS'Y, ROLLER BEARING (RIGHT HAND ROTATION) |
AR |
|
22 |
| 17 |
31-62801A1 |
|
|
|
|
TAPERED ROLLER BEARING ASS'Y (RIGHT HAND ROTATION) |
1 |
|
This Part is No Longer Available |
| 18 |
44-62792 |
|
|
|
|
PROPELLER SHAFT (RIGHT HAND ROTATION) |
1 |
44-62792T |
This Part is No Longer Available |
| 19 |
31-62799A1 |
|
|
|
|
TAPERED ROLLER BEARING ASS'Y (RIGHT HAND ROTATION) |
1 |
|
|
| 20 |
43-62881T1 |
|
|
|
|
DRIVE GEAR (24 TEETH) |
1 |
43-62881T |
|
| 21 |
66103A1 |
|
|
|
|
THRUST RING ASSEMLBY |
1 |
|
This Part is No Longer Available |
| 22 |
23-66093T |
|
|
|
|
LOAD RING, THURST RING |
1 |
23-66093 |
|
| 23 |
25-34821 |
|
|
|
|
O-RING, BEARING CARRIER |
1 |
|
|
| 24 |
863913A04 |
|
|
|
|
BEARING CARRIER ASSEMBLY |
1 |
62813A4 |
|
| 25 |
31-54042T |
|
|
|
|
ROLLER BEARING, BEARING CARRIER |
1 |
|
|
| 26 |
26-821092 |
|
|
|
|
OIL SEAL, BEARING CARRIER |
2 |
26-54926 |
|
| 27 |
28-30281 |
|
|
|
|
KEY, LOCATING - BEARING CARRIER |
1 |
|
|
| 28 |
14-54167 |
|
|
|
|
TAB WASHER, GEAR HOUSING COVER |
1 |
|
|
| 29 |
54163 |
|
|
|
|
COVER, GEAR HOUSING |
1 |
|
|
| 30 |
55074T |
|
|
|
|
THRUST HUB |
1 |
|
|
| 31 |
12-55073A2 |
|
|
|
|
WASHER ASSEMBLY, SPLINED - PROPELLER SHAFT |
1 |
|
|
| 32 |
12-55072 |
|
|
|
|
THURST WASHER, BEARING CARRIER |
1 |
|
|
| 33 |
14-34817 |
|
|
|
|
TAB WASHER, PROPELLER NUT |
1 |
|
|
| 34 |
11-82671127 |
|
|
|
|
NUT, PROPELLER (1-1/4-7 THREAD) |
1 |
11-54034 |
|
| 35 |
25-54029 |
|
|
|
|
"O" RING, GEAR HOUSING |
1 |
|
|
| 36 |
10-47557 |
|
|
|
|
SCREW, GEAR HOUSING (1-1/2") |
1 |
|
This Part is No Longer Available No longer made, limited availability |
| 37 |
11-34933 |
|
676-9-72004 |
|
|
NUT, DRIVE SHAFT HOUSING STUD |
1 |
|
|
