TR-TRS - Serial 4794900 and Up - Gimbal Ring And Steering Lever

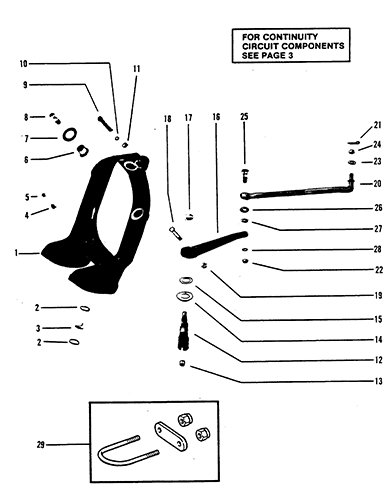

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Note 1: SPLINED GIMBAL RING AND SPLINED/SPLINED SWIVEL SHAFT ARE NLA. ORDER GIMBAL RING KIT P/N [42385A7]. Note 2: SQUARE GIMBAL RING WITH THRU BOLTS IS NLA. ORDER GIMBAL RING KIT P/N [42385A 7]. Note 3: SPLINED STEERING LEVER AND SQUARE/SPINED SWIVEL SHAFT ARE NLA. ORDER STEERING LEVER/SHAFT KIT P/N [44448A 1] |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | SEENOTE1 | GIMBAL RING ASSEMBLY (SPLINED) | 1 | ||||||
| 1 | SEENOTE2 | GIMBAL RING ASSEMBLY (SQUARE WITH THRU BOLTS) | 1 | ||||||
| 1 | 8M0057395 | GIMBAL RING ASSEMBLY (SQUARE WITH U-BOLTS) | 1 | 42385A8 | |||||
| 2 | 26-54927 | OIL SEAL, GIMBAL RING | 2 | ||||||
| 3 | 31-54928 | ROLLER BEARING, GIMBAL | 1 | ||||||
| 4 | 22-69059 | GREASE FITTING (1/8 - 27) | 1 | ||||||
| 5 | 19-77633Q | LUBRICAP, GREASE FITTING | 1 | 19-77633 | |||||
| 6 | 23-54002 | BUSHING, GIMBAL RING | 2 | ||||||
| 7 | 12-54019 | WASHER, ANTI-GALLING - BELL HOUSING | 2 | This Part is No Longer Available | |||||
| 8 | 17-59812 | HINGE PIN, GIMBAL RING TO HOUSING | 2 | ||||||
| 9 | 10-45833 | SCREW, UPPER SWIVEL SHAFT RETAINING (2-1/2") (SPLINED) | 1 | No longer made, limited availability | |||||
| 10 | 12-20546 | WASHER, UPPER SWIVEL SHAFT RETAINING SCREW (SPLINED) | 1 | ||||||
| 9 | 10-68299 | SCREW, UPPER SWIVEL SHAFT RETAINING (3") (SQUARE) | 2 | ||||||
| 10 | 12-34931 | WASHER, UPPER SWIVEL SHAFT RETAINING SCREW (SQUARE) | 4 | ||||||
| 11 | 11-82671112 | NUT, UPPER SWIVEL SHAFT RETAINING SCREW (SQUARE) | 2 | 11-99405 | |||||
| 12 | SEENOTE1 | SHAFT, UPPER SWIVEL (SPLINED/SPLINED) | 1 | ||||||
| 13 | 22-32561 | PIPE PLUG, UPPER SWIVEL SHAFT (SPLINED/SPLINED) | 1 | ||||||
| 12 | SEENOTE3 | SHAFT, UPPER SWIVEL (SQUARE/SPLINED) | 1 | ||||||
| 13 | 19-88559 | PLUG, UPPER SWIVEL SHAFT ( SQUARE/SPLINED) | 1 | ||||||
| 12 | 44448T | SHAFT, UPPER SWIVEL (SQUARE/SQUARE) | 1 | ||||||
| 13 | 19-88559 | PLUG, UPPER SWIVEL SHAFT (SQUARE/SQUARE) | 1 | ||||||
| 14 | 12-54026 | WASHER, UPPER SWIVEL SHAFT (2" O.D.) | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 15 | 12-54027 | WASHER, UPPER SWIVEL SHAFT (1-5/8" O.D.) | 1 | No longer made, limited availability | |||||
| 16 | SEENOTE3 | LEVER, STEERING (SPLINED) | 1 | ||||||
| 16 | 44447T | LEVER, STEERING (SQUARE) | 1 | ||||||
| 17 | 11-8M2014641 | NUT, STEERING LEVER TO UPPER SWIVEL SHAFT | 1 | 11-25599 | |||||
| 18 | 10-68479 | SCREW, STEERING LEVER (2-1/4") | 1 | No longer made, limited availability | |||||
| 19 | 11-8M2008293 | NUT, STEERING LEVER SCREW | 1 | 11-98533 | |||||
| 20 | 67538A1 | LINK ROD ASSEMBLY, STEERING | 1 | This Part is No Longer Available | |||||
| 21 | 18-45882 | COTTER PIN, RETAINING | 2 | ||||||
| 22 | 11-55438 | NUT, LINK ROD BOLT | 1 | ||||||
| 23 | 12-20086 | WASHER, LINK ROD | 1 | ||||||
| 24 | 11-55438 | NUT, LINK ROD | 1 | ||||||
| 25 | 10-66389 | BOLT, LINK ROD TO STEERING LEVER | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 26 | 12-34966 | WASHER, NYLON - LINK ROD BOLT | 1 | No longer made, limited availability | |||||
| 27 | 13-54667 | WASHER, WAVE - LINK ROD BOLT | 1 | No longer made, limited availability | |||||
| 28 | 12-20086 | WASHER, LINK ROD BOLT | 1 | ||||||
| 29 | 10-41455A1 | "U" BOLT KIT | 1 | ||||||
| - | 42385A7 | GIMBAL RING KIT | 1 | ||||||
