| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

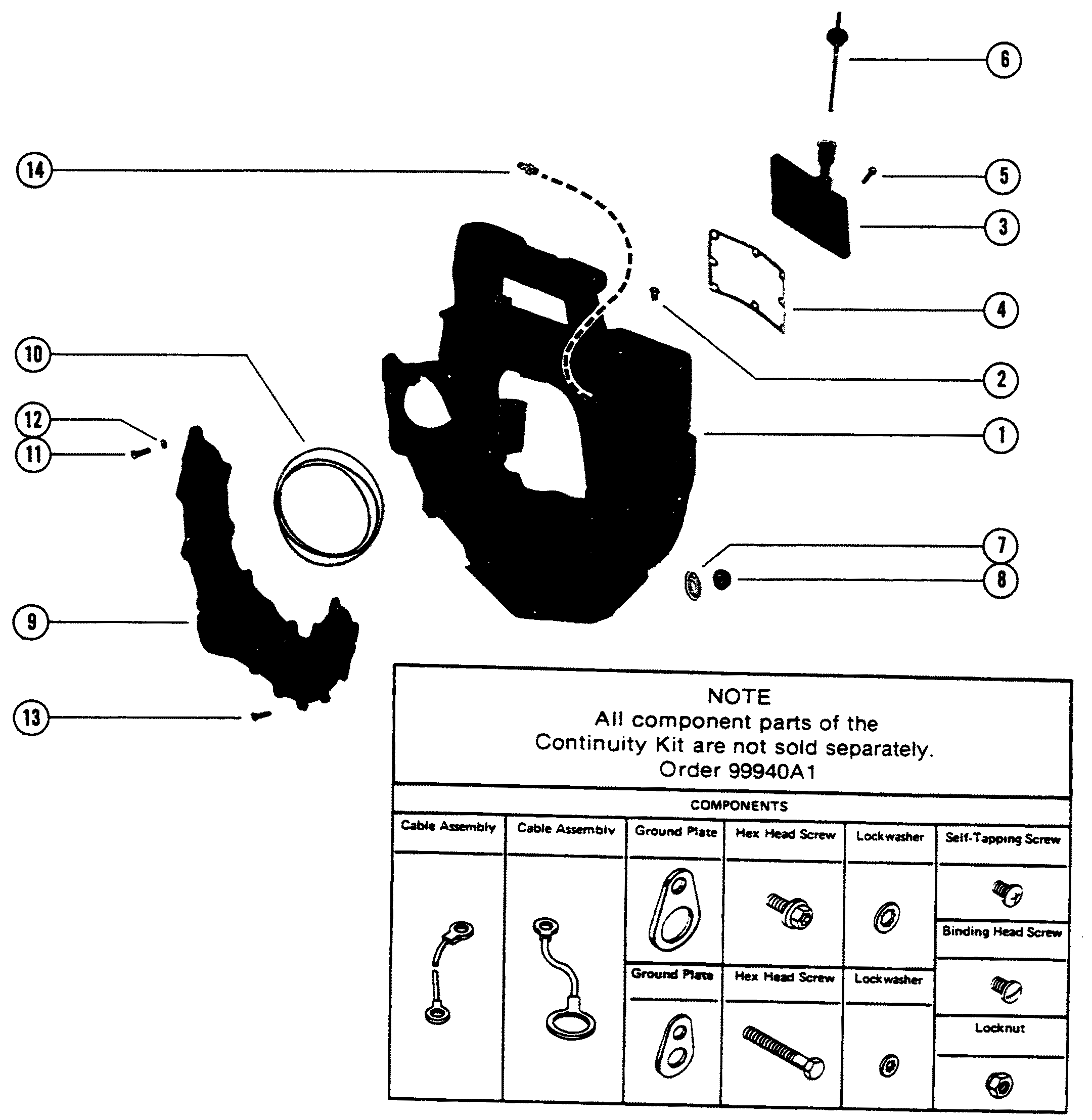

| 1 |
62952T |
|
|
|
|
TRANSOM PLATE |
1 |
|
This Part is No Longer Available |
| 2 |
22-47902 |
|
|
|
|
VENT, OIL RESERVOIR |
1 |
|
|
| 3 |
54244A3 |
|
|
|
|
COVER ASSEMBLY, OIL RESERVOIR |
1 |
54244A1 |
This Part is No Longer Available |
| 4 |
27-543071 |
|
|
|
|
GASKET, OIL RESERVOIR COVER |
1 |
27-54307 |
This Part is No Longer Available No longer made, limited availability |
| 5 |
10-54523 |
|
|
|
|
SCREW, OIL RESERVOIR COVER (1") |
8 |
|
|
| 6 |
55083T |
|
|
|
|
DIPSTICK, OIL LEVEL - OIL RESERVOIR |
1 |
55083 |
This Part is No Longer Available |
| 7 |
12-34876 |
|
|
|
|
WASHER GIMBAL HOUSING STUD |
8 |
|
|
| 8 |
11-35000 |
|
|
|
|
NUT, GIMBAL HOUSING STUD |
8 |
|
|
| 9 |
54234T |
|
|
|
|
COVER, EXHAUST |
1 |
54234 |
This Part is No Longer Available |
| 10 |
55897 |
|
|
|
|
SEAL, EXHAUST COVER |
1 |
|
No longer made, limited availability |
| 11 |
10-20639 |
|
|
|
|
SCREW, EXHAUST COVER (1-1/8") |
15 |
|
This Part is No Longer Available |
| 12 |
11-29250 |
|
|
|
|
NUT, EXHAUST COVER SCREW |
15 |
|
|
| 13 |
10-35386 |
|
|
|
|
SCREW, EXHAUST COVER - BOTTOM (1") |
2 |
|
|
| 14 |
22-34982 |
|
|
|
|
CONNECTOR, TRANSOM PLATE (OIL BASE) |
1 |
|
|
| - |
79430 |
|
|
|
|
PLATE, EXHAUST TUBE BLOCK-OFF |
2 |
|
This Part is No Longer Available |
| - |
99940A2 |
|
|
|
|
CONTINUITY KIT (COMPONENTS NOT SOLD SEPARATELY) |
1 |
99940A1 |
|
