TR-TRS - Serial 4794900 and Up - Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)

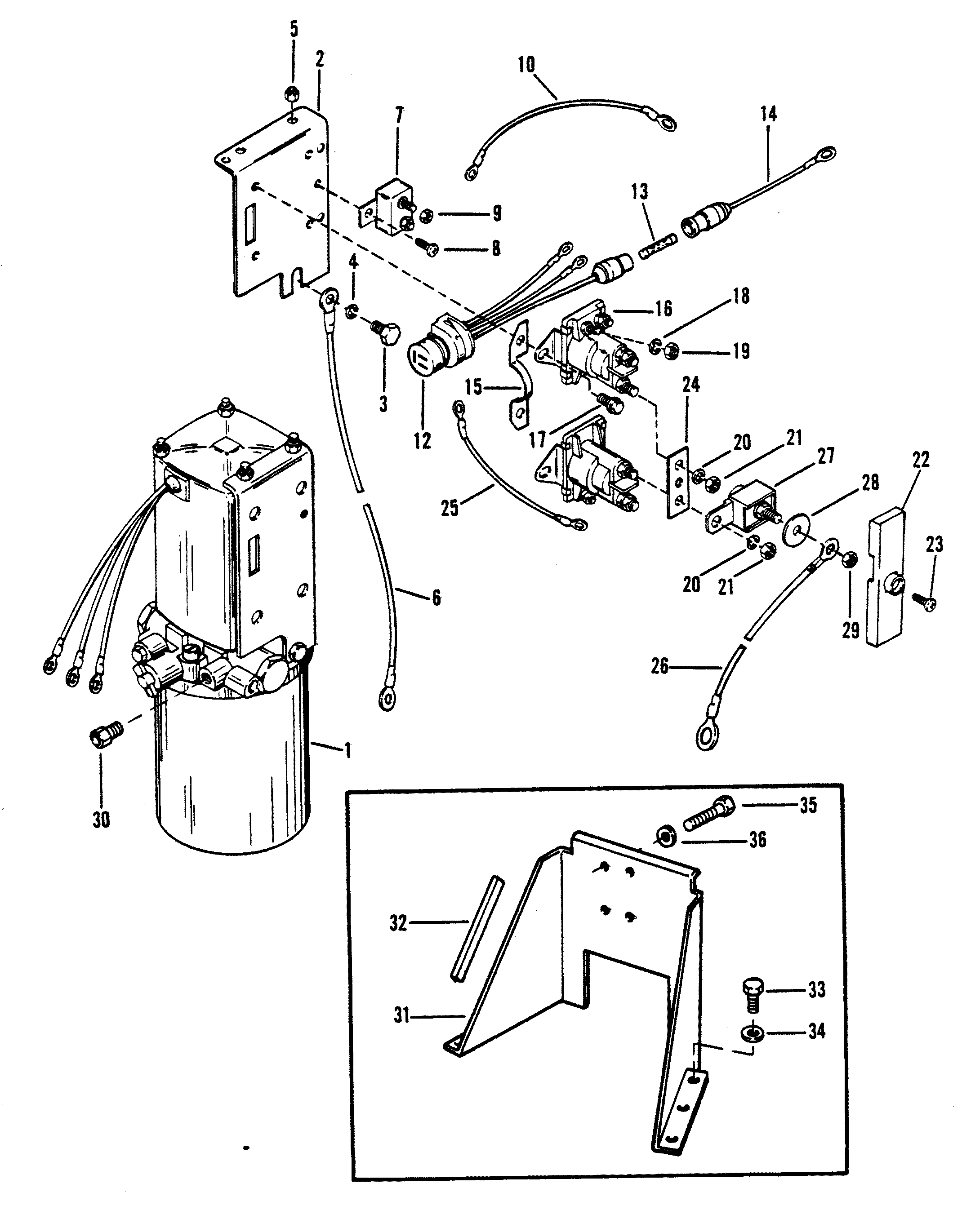

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: COMPLETE HYDRAULIC PUMP [88183A12] (INCLUDES ALL PARTS ON THIS PAGE)
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865380A13



HYDRAULIC PUMP ASSEMBLY 1 88183A5
2 90426F1



BRACKET, MOUNTING - STARTER SOLENOID 1 90426T
3 10-90285



SCREW, MOUNTING BRACKET (5/8") 1

4 12-56720



WASHER, MOUNTING BRACEKT SCREW 1

5 11-29488

700-21163
NUT, MOUNTING BRACKET TO HYDRAULIC PUMP 2
No longer made, limited availability
6 84-79138A9



BATTEY CABLE, BLACK (NEGATIVE) 1

7 88-79149



CIRCUIT BREAKER (20 AMP.) 1

8 10-807754



SCREW, CIRCUIT BREAKER 1 10-69014
9 11-45076



NUT, CIRCUIT BREAKER TERMINAL 2

10 84-87379A5



WIRE, SOLENOID TO SOLENOID (RED) 1
no longer made, limited availability
12 84-79147A3



HARNESS ASSEMBLY, HYDRAULIC PUMP 1

13 88-79091



FUSE (20 AMP.) 1

14 84-95084A2



WIRE, FUSE 1

15 88075



RETAINER, HARNESS TO MOUNTING BRACKET 1

16 89-96158T



SOLENOID, TRIM PUMP 2 89-96158
17 10-41508



SCERW, STARTER SOLENOID TO BRACKET (3/8") 4

18 13-26995



LOCKWASHER, STARTER SOLENOID TERMINAL (#8) 4

19 11-26419



NUT, STARTER SOLENOID TERMINAL (#8-32) 4

20 13-26992



LOCKWASHER, STARTER SOLENOID TERMINAL (1/4") 4

21 11-94330



NUT, STARTER SOLENOID TERMINAL (1/4-20) 4

22 85-861680



BOOT, RUBBER - STARTER SOLENOID TERMINAL 1 85-96535
23 10-48409



SCREW, SOLENOID INSULATOR 1 10-32024
24 94275



CONNECTOR, SOLENOID TO SOLENOID 1

25 84-86322A15



WIRE, SOLENOID TO SOLENOID (BLACK) 1

26 84-79139A12



BATTERY CABLE, RED (POSITIVE) 1

27 79023T10



FUSE (110 AMP.) 1 88-79023A10
28 12-96457



WASHER, FUSE TERMINAL 1

29 11-21825



NUT, FUSE TERMINAL 1

30 22-89029



ADAPTOR, HYDRAULIC PUMP 1

31 862548A1



BRACKET ASS'Y, MOUNTING - HYD. PUMP (FLOOR MOUNTED) 1 88893A4
32 58491



BUMPER, RUBBER - PUMP MOUNTING BRACKET 2

33 10-59784



SCREW, PUMP MOUNTING BRACKET ATTACHING (1") 6

34 12-29245



WASHER, PUMP MOUNTING BRACKET SCREW 6

35 10-90271



SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET 2

36 13-58643



LOCKWASHER, HYDRAULIC PUMP SCREW 2

37 865380A25



COMPLETE HYDRAULIC PUMP (INCLUDES ALL PARTS ON THIS PAGE)
88183A12
