TR-TRS - Serial 4794900 and Up - Hydraulic Pump (Prestolite Pump)

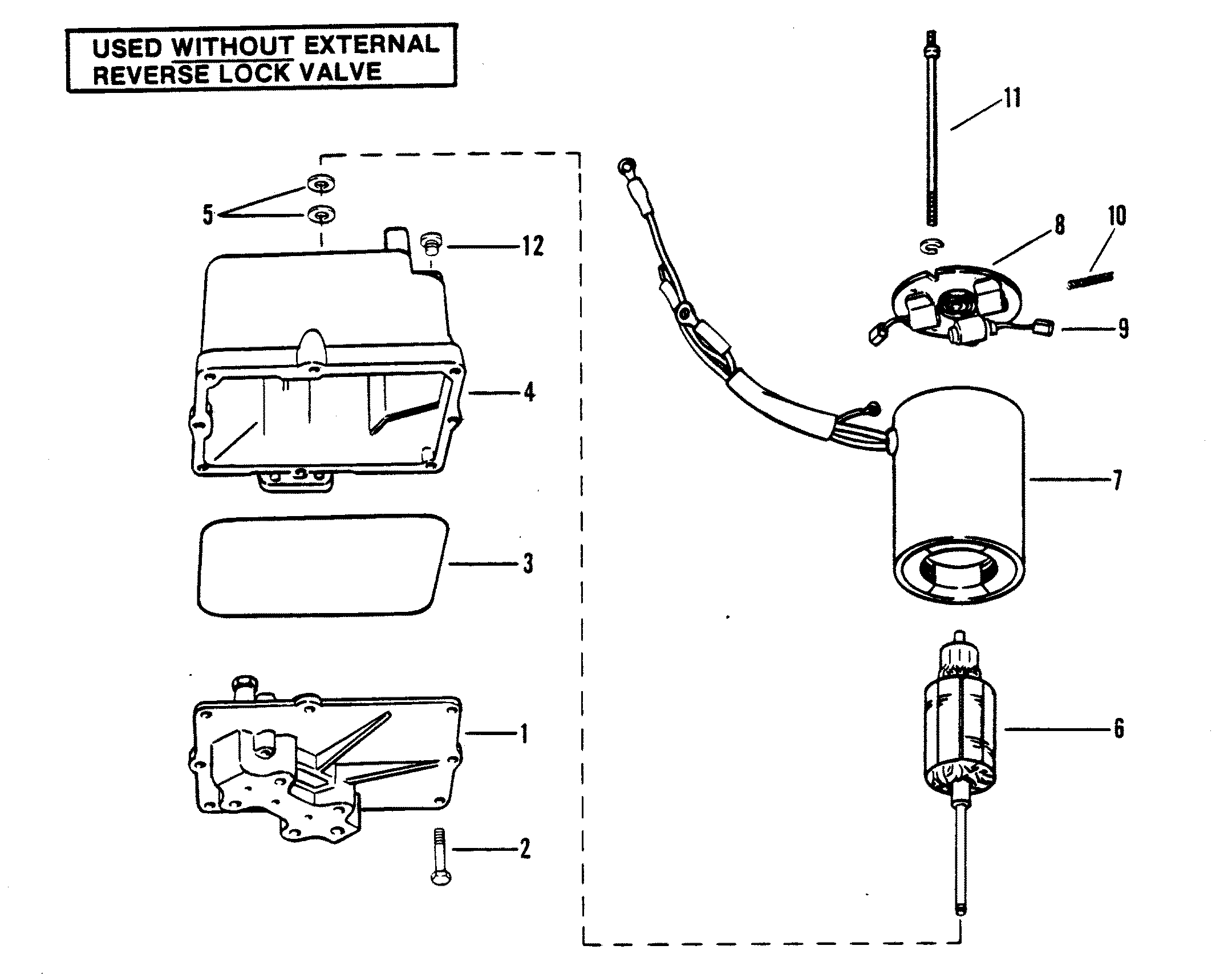

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 865380A25 | HYDRAULIC PUMP ASSEMBLY | 1 | 96477A3 | |||||
| 1 | 88183A12 | VALVE BODY AND GEAR ASSEMLBY | 1 | 392-9252 | |||||
| 2 | 10-69570 | SCREW, VALVE BODY TO RESERVOIR | 8 | ||||||
| 3 | 392-7735 | SEAL, RESERVOIR TO VALVE BODY AND GEAR | 1 | ||||||
| 4 | 392-7731 | RESERVOIR ASSEMBLY (PLASTIC) | 1 | ||||||
| 5 | 392-7732 | WASHER, THRUST - ARMATURE | 1 | This Part is No Longer Available | |||||
| 6 | 88183A12 | ARMATURE, FIELD AND FRAME | 1 | 392-9248 | |||||
| 7 | 88183A12 | FIELD AND FRAME ASSEMBLY | 1 | 392-9249 | |||||
| 8 | 392-9250 | PLATE ASSEMBLY, COMMUTATOR END | 1 | This Part is No Longer Available | |||||
| 9 | 392-8989 | BRUSH SET, COMMUTATOR END PLATE | 1 | ||||||
| 10 | 392-8993 | SPRING SET, BRUSH TENSION | 1 | ||||||
| 11 | 392-9251 | BOLT SET, THRU | 1 | This Part is No Longer Available | |||||
| 12 | 392-7727 | COUPLER AND SHAFT | 1 | This Part is No Longer Available | |||||
| 13 | 392-7728 | FILL PLUG, RESERVOIR | 1 | This Part is No Longer Available |
