TR-TRS - Serial 4794900 and Up - Gear Housing (TRS)

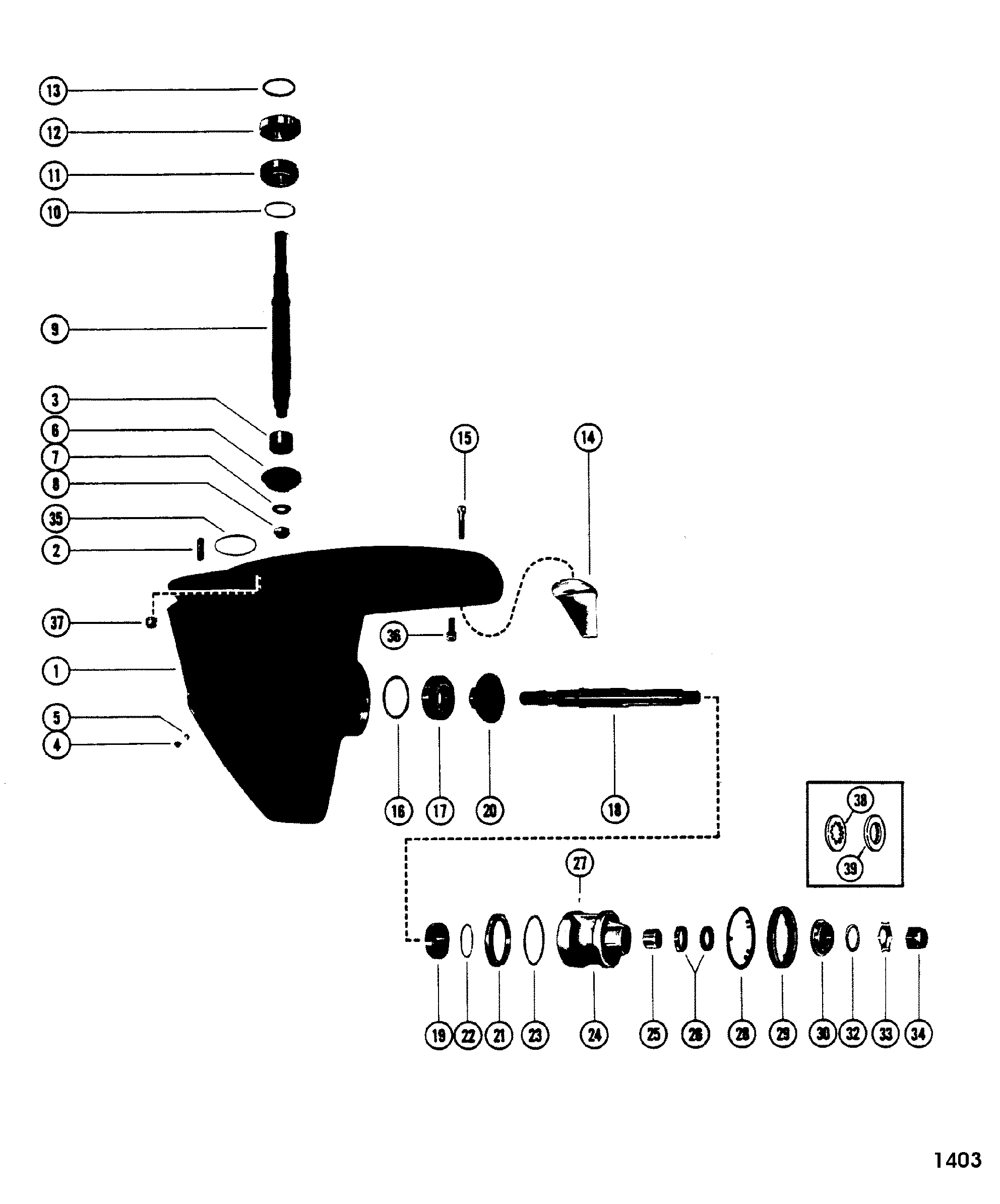

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
-- 1646-5321A14         GEAR HSG ASS'Y, COMPLETE (LEFT HAND ROTATION) 1   This Part is No Longer Available
-- 1646-5321A13         GEAR HSG ASS'Y, COMPLETE (RIGHT HAND RATATION) 1   This Part is No Longer Available
1 1646-5321A6         GEAR HOUSING ASSEMBLY 1
Special price, soon to be NLA
2 16-57982         STUD, GEAR HOUSING (1-7/8") 1

3 31-68290A1         ROLLER BRG, DRIVE SHAFT 1

4 10-79953Q04         SCREW, VENT - GEAR HOUSING 1 10-79953
5 12-191833         WASHER SEAL - VENT SCREW 1 12-20260
6 43-70934T1         PINION GEAR (16 TEETH) 1 43-70934
7 12-54048         WASHER PINION GEAR TO DRIVE SHAFT 1

8 11-55819         NUT, PINION GEAR TO DRIVE SHAFT 1

9 45-66666         DRIVE SHAFT 1 45-66666T This Part is No Longer Available
10 15-66672A1         SHIM ASS'Y, ROLLER BEARING TO GEAR HOUSING AR
No longer made, limited availability
11 31-66670A1         TAPERED ROLLER BEARING ASS'Y, DRIVE SHAFT 1

12 31-68266A1         TAPERED ROLLER BEARING ASS'Y, DRIVE SHAFT 1

13 25-54030         O-RING, GEAR HOUSING 1

14 31640Q4         TRIM TAB ASSEMBLY, GEAR HOUSING 1 31640A1
15 10-41350         SCREW, TRIM TAB TO GEAR HOUSING (2-1/2") 1

16 15-47397A1     700-23220   SHIM ASS'Y, ROLLER BEARING (LEFT HAND ROTATION) AR

17 31-35928T1         TAPERED ROLLER BEARING ASS'Y (LEFT HAND ROTATION) 1 31-35928A1
18 44-92327         PROPELLER SHAFT (LEFT HAND ROTATION) 1

19 31-99328A1         TAPERED ROLLER BEARING ASS'Y (LEFT HAND ROTATION) 1 31-66668A1
16 15-39899A1         SHIM ASS'Y, ROLLER BEARING (RIGHT HAND ROTATION) AR

17 31-68266A1         TAPERED ROLLER BEARING ASS'Y (RIGHT HAND ROTATION) 1

18 44-92328         PROPELLER SHAFT (RIGHT HAND ROTATION) 1   This Part is No Longer Available
19 31-35928T1         TAPERED ROLLER BEARING ASS'Y (RIGHT HAND ROTATION) 1 31-35928A1
20 43-70933         DRIVE GEAR (18 TEETH) 1

21 12-66667         THRUST RING 1   This Part is No Longer Available
22 67440T         LOAD RING, THRUST RING 1

23 25-31534         O-RING, BEARING CARRIER 1

24 66663A1         BEARING CARRIER ASSEMBLY 1

25 31-30956T         ROLLER BEARING, BEARING CARRIER 1 31-30956
26 26-76868         OIL SEAL, BEARING CARRIER 2

27 28-30281         KEY, LOCATING - BEARING CARRIER 1

28 14-79447     700-11380   TAB WASHER, GEAR HOUSING COVER 1

29 8M2011027         COVER, GEAR HOUSING 1 79448
30 92950         THRUST HUB 1   This Part is No Longer Available (USE WITH RUBBER HUB CLEAVER PROPELLERS) No longer made, limited availability
32 12-31211Q03         WASHER, BEARING HUB 1 12-31211A2 (USE WITH RUBBER HUB CLEAVER PROPELLERS)
33 14-816629Q     700-21200   TAB WASHER, PROPELLER NUT 1 14-31210 USE WITH RUBBER HUB CLEAVER PROPELLERS
34 11-52707Q1         NUT, PROPELLER 1 11-52707A1
35 25-54029         "O" RING, GEAR HOUSING 1

36 10-47557         SCREW, GEAR HOUSING (1-1/2") 1   This Part is No Longer Available No longer made, limited availability
37 11-34933   676-9-72004     NUT, DRIVE SHAFT HOUSING STUD 1

38 12-39701         WASHER, SPLINED 1
USE WITH SOLID HUB CLEAVER PROPELLERS
39 12-39698         WASHER, FLAT 1
USE WITH SOLID HUB CLEAVER PROPELLERS
