TR-TRS - Serial 4794900 and Up - Hydraulic Pump (Plastic Reservoir)

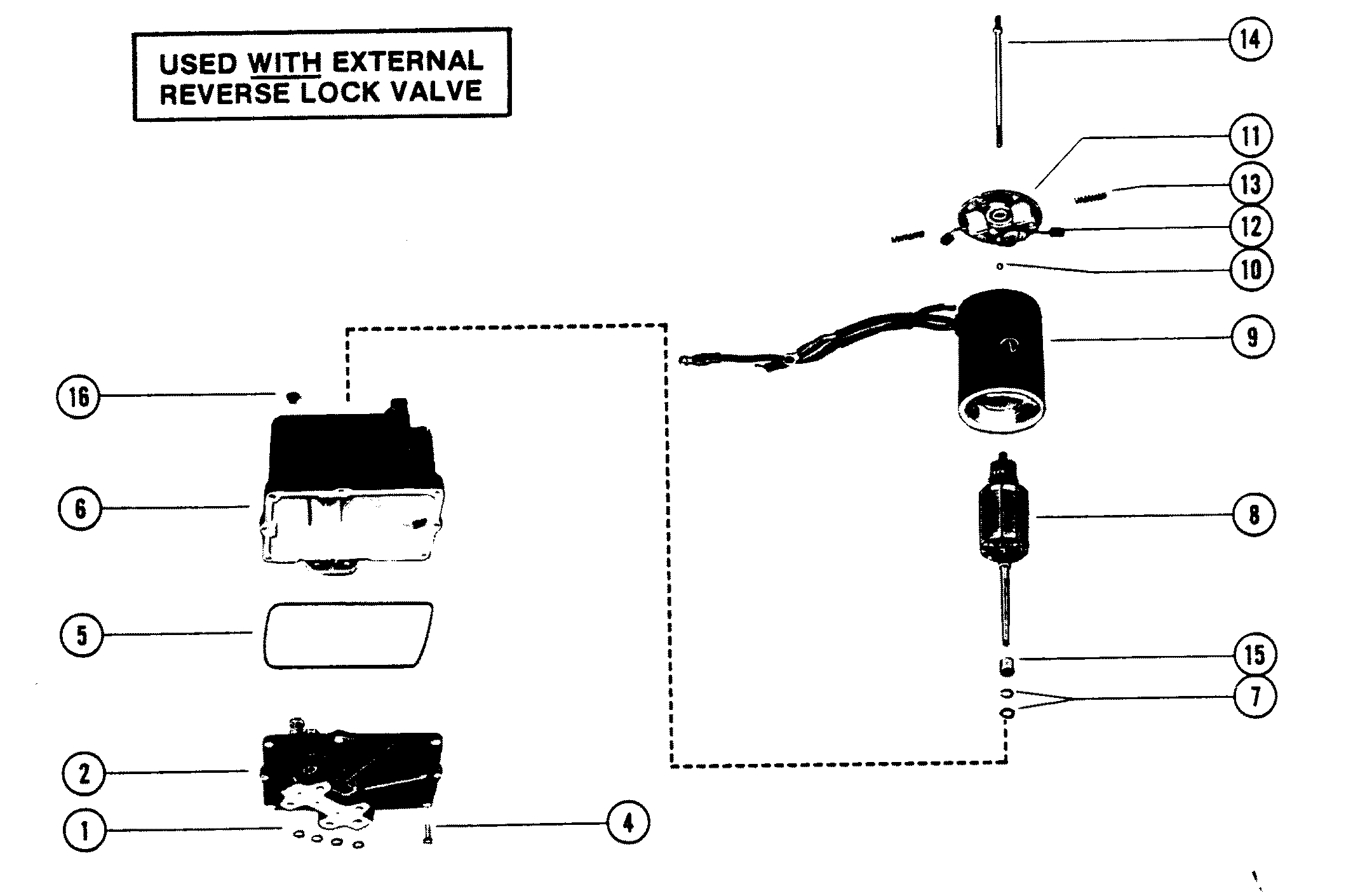

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
-- 93247A7         HYDRAULIC PUMP ASSEMBLY, COMPLETE 1 88475A5
-- 88475A4         HYDRAULIC PUMP ASSEMBLY, COMPLETE 1

1 25-48171         O-RING, HYDRAULIC PUMP 4

2 392-7734         VAVLE BODY AND GEAR ASSEMBLY 1   This Part is No Longer Available
2 93247A7         VAVLE BODY AND GEAR ASSEMBLY 1 392-8263
4 10-69570         SCREW, VALVE BODY TO RESERVOIR 8,8

5 392-7735         SEAL, RESERVOIR TO VALVE BODY AND GEAR 1,1

6 392-7731         RESERVOIR ASSEMBLY (PLASTIC) 1,1

7 392-7732         WASHER, THRUST - ARMATURE AR,AR   This Part is No Longer Available 22
8 392-7729         ARMATURE, FIELD AND FRAME 1,1   This Part is No Longer Available
9 392-2942         FILED AND FRAME ASSEMBLY 1   This Part is No Longer Available
9 392-8261         FILED AND FRAME ASSEMBLY 1   This Part is No Longer Available
10 392-7730         BALL, COMMUTATOR END PLATE 1,1   This Part is No Longer Available
11 392-2940         PLATE ASSEMBLY, COMMUTATOR END 1

11 392-8262         PLATE ASSEMBLY, COMMUTATOR END 1

12 392-8989         BRUSH SET, COMMUTATOR END PLATE 1,1 392-2941
13 392-2529         SPRING SET, BRUSH TENSION 1,1

14 392-7733         BOLT SET, THRU - PLATE AND FRAME 1,1   This Part is No Longer Available
15 392-7727         COUPLER AND SHAFT 1,1   This Part is No Longer Available
16 392-7728         FILL PLUG, RESERVOIR 1,1   This Part is No Longer Available
