| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

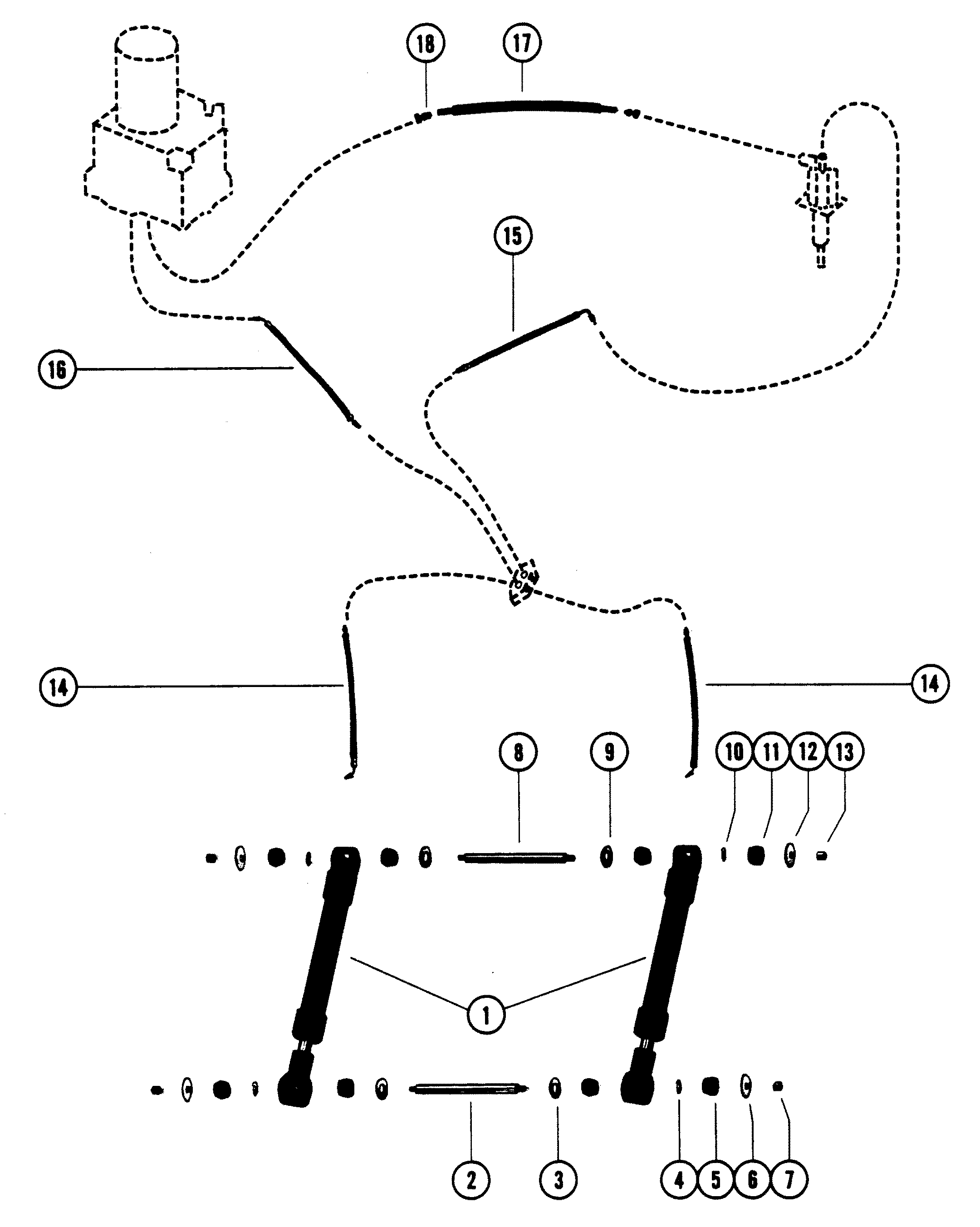

| 1 |
47342A23 |
|
|
|
|
TRIM CYLINDERS ASS'Y, COMPLETE |
2 |
47342A12 |
This Part is No Longer Available SEE TRIM CYLINDER REPAIR KIT (INTERNAL LINES) FOR REPAIR KIT BREAKDOWN |
| 2 |
17-14874A1 |
|
|
|
|
ANCHOR PIN, DRIVE SHAFT HOUSING (10-3/4") |
1 |
14-49279 |
|
| 3 |
12-89664 |
|
|
|
|
WASHER, ANCHOR PIN (59/64" I.D.) |
2 |
|
|
| 4 |
24-49593 |
|
|
|
|
SPRING, ANCHOR PIN |
2 |
|
No longer made, limited availability |
| 5 |
23-90203 |
|
|
|
|
BUSHING, RUBBER - ANCHOR PIN |
4 |
|
|
| 6 |
12-89665 |
|
|
|
|
WASHER, ANCHOR PIN (33/64" I.D.) |
2 |
|
|
| 7 |
11-35000 |
|
|
|
|
NUT, ANCHOR PIN |
2 |
|
|
| 8 |
17-14875A1 |
|
|
|
|
ANCHOR PIN, GIMBAL RING (13-1/4") |
1 |
17-47374 |
|
| 9 |
12-89664 |
|
|
|
|
WASHER, ANCHOR PIN (59/64" I.D.) |
2 |
|
|
| 10 |
24-49593 |
|
|
|
|
SPRING, ANCHOR PIN |
2 |
|
No longer made, limited availability |
| 11 |
23-90203 |
|
|
|
|
BUSHING, RUBBER - ANCHOR PIN |
4 |
|
|
| 12 |
12-89665 |
|
|
|
|
WASHER, ANCHOR PIN (33/64" I.D.) |
2 |
|
|
| 13 |
11-35000 |
|
|
|
|
NUT, ANCHOR PIN |
2 |
|
|
| 14 |
32-86036Q |
|
|
|
|
HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2") |
4 |
32-86036 |
|
| 15 |
32-63158A1 |
|
|
|
|
HOSE, CONNECTOR TO VALVE (25") |
1 |
|
|
| 16 |
32-63157A1 |
|
|
|
|
HOSE, CONNECTOR TO PUMP (50-1/2") |
1 |
|
|
| 17 |
32-58432A2 |
|
|
|
|
TUBING ASSEMBLY, PUMP TO REVERSE LOCK VALVE (49") |
1 |
|
|
| 18 |
22-49718 |
|
|
|
|
NUT, COMPRESSION - HYDRAULIC TUBING |
2 |
|
|
