502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Alternator (Mando)

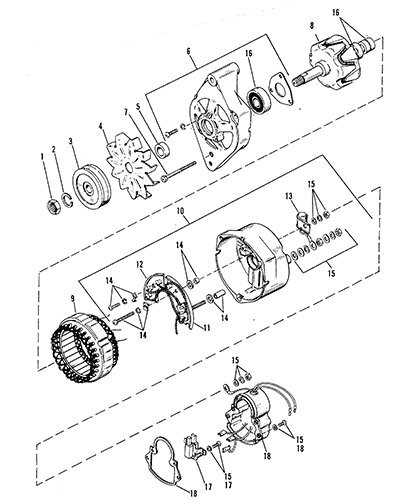

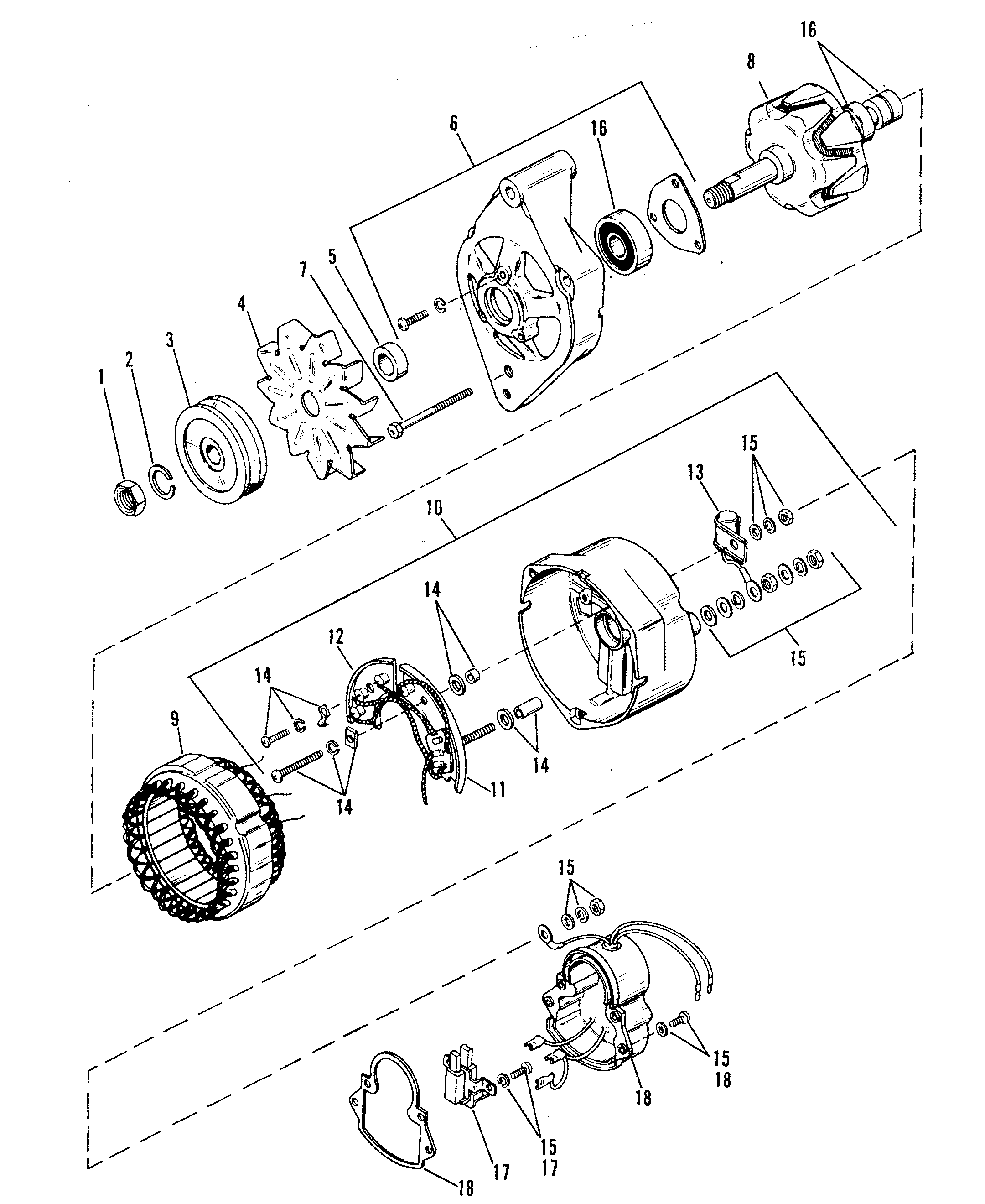

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 11-809136         NUT 1 11-42768
2 13-42769         LOCKWASHER 1

3 809134         PULLEY 1 42770
4 42771         FAN 1   This Part is No Longer Available
5 23-42772         SPACER 1   This Part is No Longer Available
6 42774         FRONT BRACKET 1   This Part is No Longer Available
7 10-42773         BOLT 3   This Part is No Longer Available
8 42775         ROTOR (INCLUDES BEARINGS) 1   This Part is No Longer Available
9 42776         STATOR 1   This Part is No Longer Available
10 42777         REAR BRACKET 1   This Part is No Longer Available
11 42778         HEAT SINK (+) 1   This Part is No Longer Available
12 42779         HEAT SINK (-) 1   This Part is No Longer Available
13 42780         CONDESER 1   This Part is No Longer Available
14 42783         HARDWARE KIT (INTERNAL) 1   This Part is No Longer Available
15 42782         HARDWARE KIT (EXTERNAL) 1   This Part is No Longer Available
16 42781         BEARING KIT 1   This Part is No Longer Available
17 42784         BRUSH HOLDER KIT (INCL. SPRINGS & BRUSHES) 1

18 42785         REGULATOR KIT 1
No longer made, limited availability
