502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Flywheel Housing

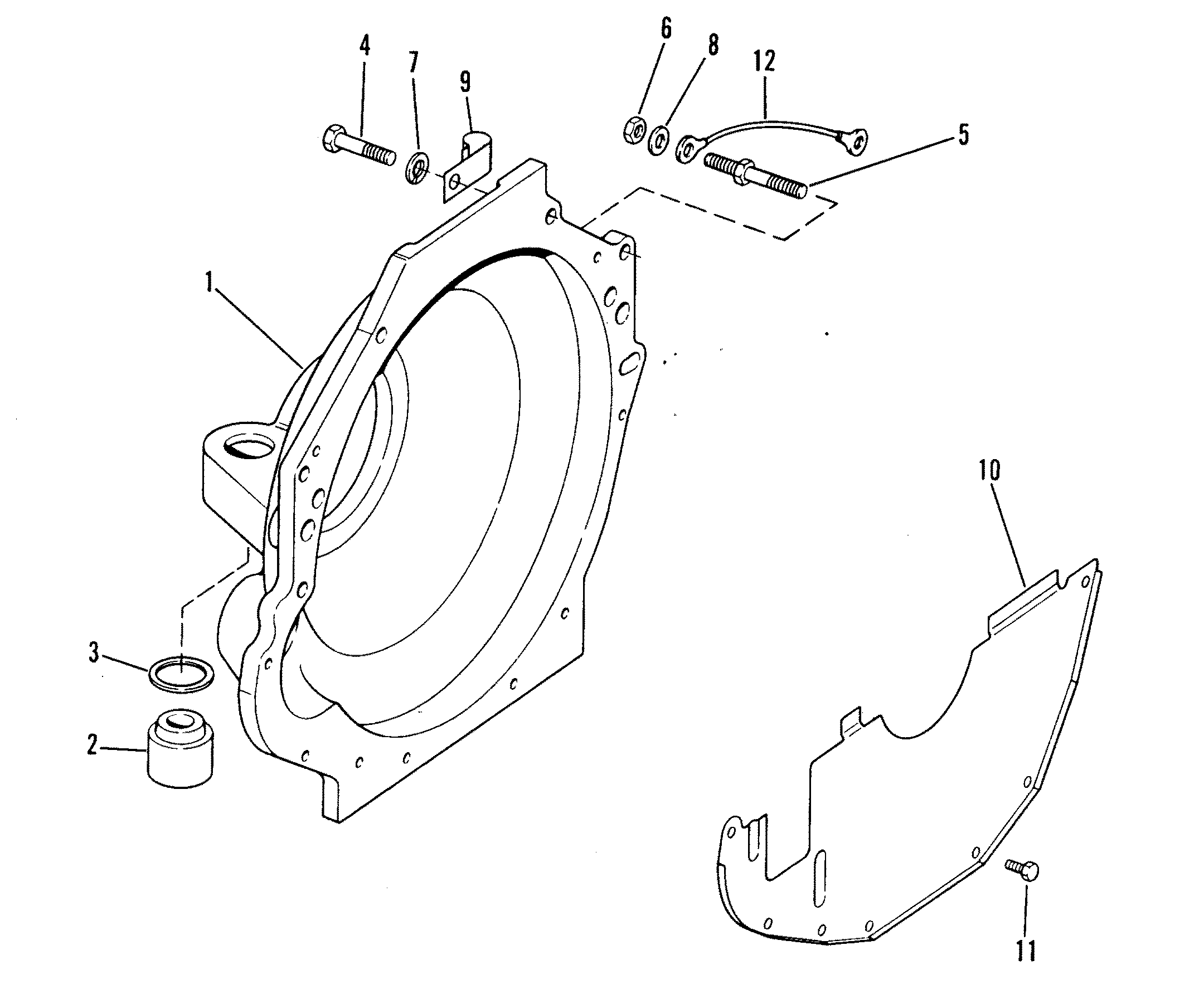

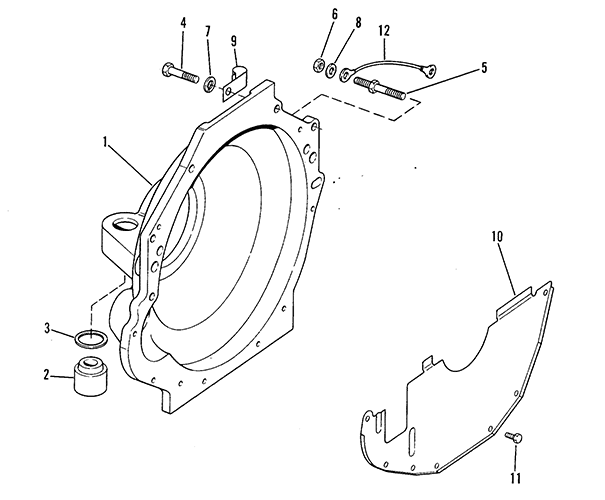

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865657A04


525-57621 FLYWHEEL HOUSING 1 12675A7
2 865330A02



MOUNT 2 88791
3 23-99322

700-21050
SPACER 2

4 10-37612



SCREW (1-1/4") 4

4 10-358701



SCREW (2") 1 10-64900
5 16-64066



STUD (2-1/4") 1

6 11-32219



NUT 1

7 13-35048

700-21495
LOCKWASHER 7

8 12-20572



WASHER 1

9 54-78945



"J" CLAMP 1

9 54-92850



CLAMP 2

10 807260A2



COVER ASSEMBLY 1 812600A2
11 10-32773



SCREW 7

12 84-62826A6



WIRE 1
