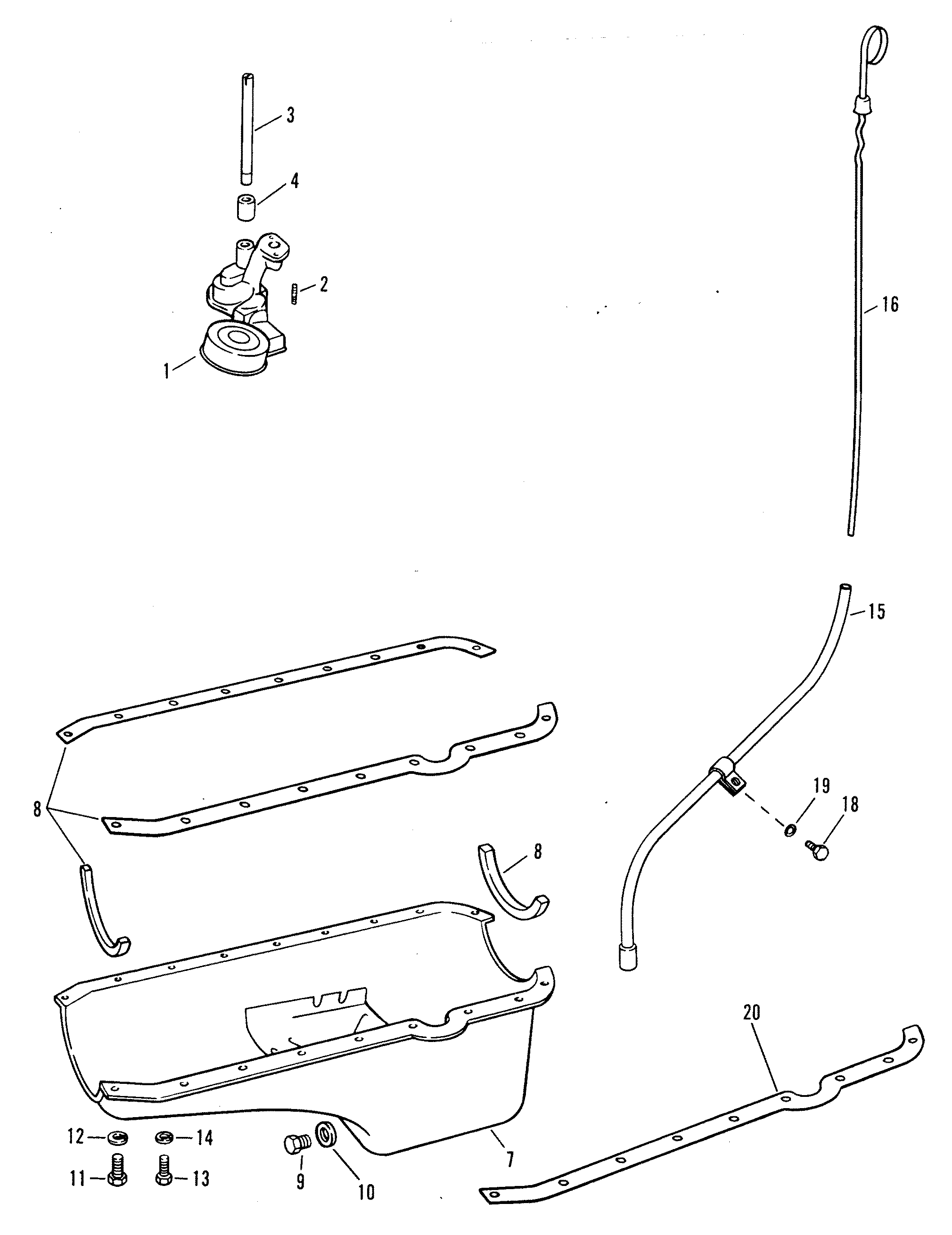

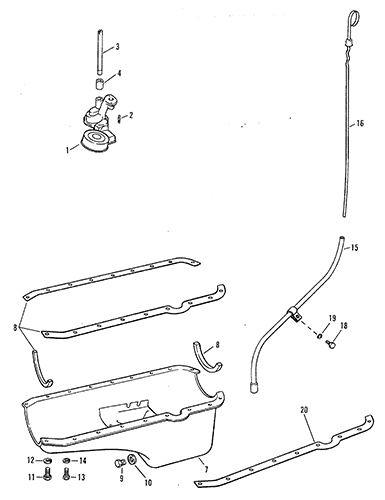

502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Oil Pan And Oil Pump
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite) 8EM2003KA
- Audio Warning System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Cast Iron)
- Exhaust Manifold And Exhaust Elbow (Stainless Steel)
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
- Wiring Harness, Electrical And Ignition
Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 827643 | OIL PUMP | 1 | 816496 | 3 = [27-811207A90] GASKET SET , ENGINE OVERHAUL | ||||
2 | 16-845599 | STUD | 1 | 16-49108 | |||||
3 | 848511 | SHAFT | 1 | 49149 | |||||
4 | 23-52193 | RETAINER | 1 | This Part is No Longer Available | |||||
7 | 19221T | OIL PAN | 1 | 19221 | This Part is No Longer Available | ||||
8 | 27-52550 | 676-9-61501 | 700-39490 | GASKET SET | 1 | 3 | |||
9 | 10-49956 | SCREW | 1 | 3 | |||||
10 | 27-49955 | 676-9-60104 | 700-30370 | GASKET | 1 | ||||
11 | 10-34500 | SCREW (5/16-18) | 20 | ||||||
13 | 10-14070 | SCREW | 2 | ||||||
15 | 32-816200A2 | DIPSTICK TUBE | 1 | ||||||
16 | 86194218 | DIPSTICK | 1 | 14607 | |||||
18 | 10-76926 | SCREW | 1 | ||||||
19 | 13-35048 | 700-21495 | LOCKWASHER | 1 | |||||
20 | 814510 | REINFORCEMENT (PORT) | 1 | This Part is No Longer Available | |||||
20 | 814511 | REINFORCEMENT (STARBOARD) | 1 | This Part is No Longer Available |
