| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

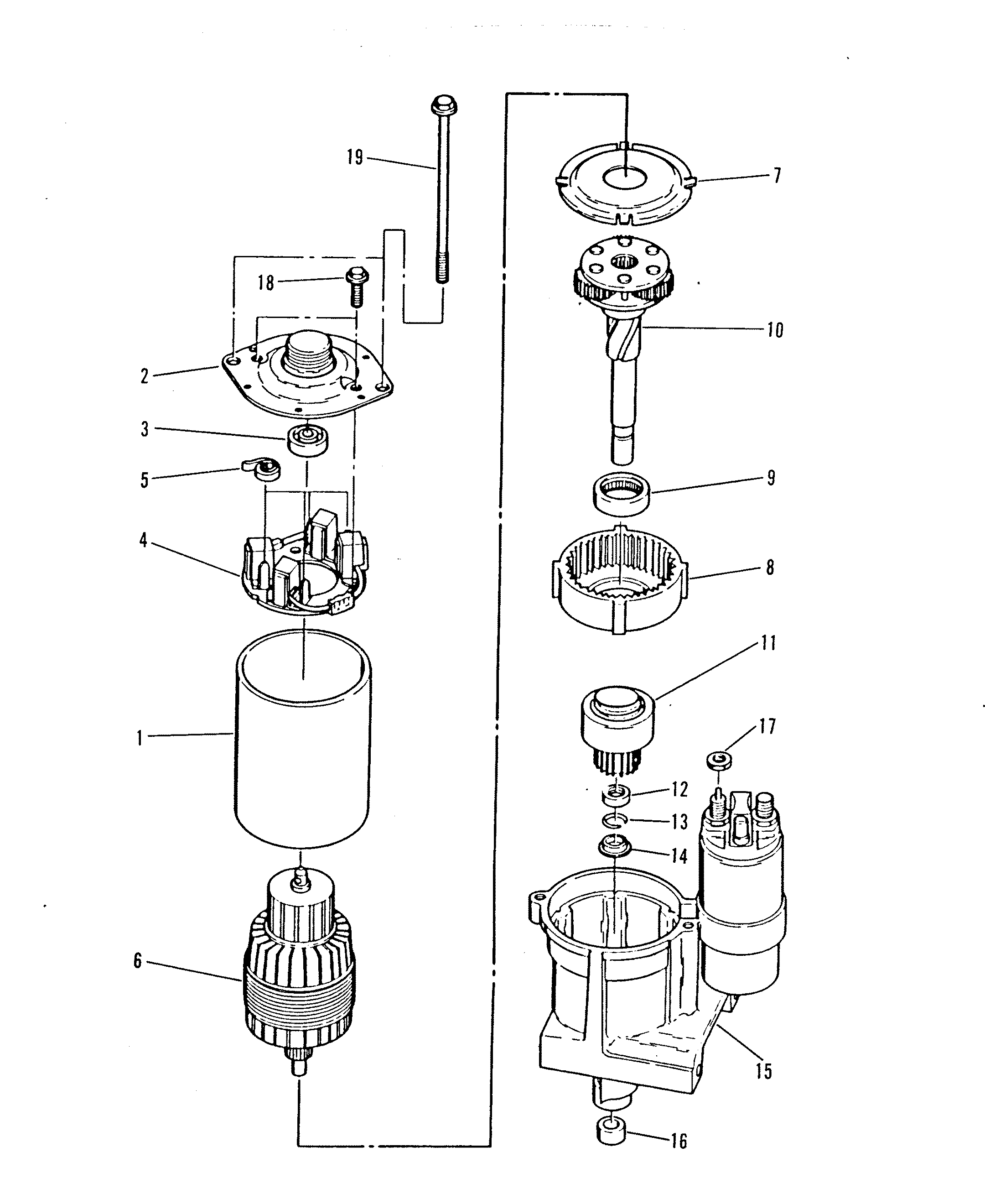

| 1 |
50-863007A1 |
|
|
|
|
STARTER MOTOR |
1 |
50-812428A3 |
8 = DRIVE HOUSING INCLUDES SWITCH, PLUNGER, RETURN SPRING, AND SHIFT LEVER. |
| 2 |
814464 |
|
|
|
|
FRAME |
1 |
|
This Part is No Longer Available |
| 3 |
30-814465 |
|
|
|
|
BALL BEARING |
1 |
|
No longer made, limited availability |
| 4 |
814466 |
|
|
|
|
BRUSH HOLDER |
1 |
|
This Part is No Longer Available |
| 5 |
24-814467 |
|
|
|
|
SPRING |
4 |
|
No longer made, limited availability |
| 6 |
814469 |
|
|
|
|
ARMATURE |
1 |
|
This Part is No Longer Available |
| 7 |
811882 |
|
|
|
|
SHIELD |
1 |
814470 |
This Part is No Longer Available |
| 8 |
814471 |
|
|
|
|
GEAR AND BEARING |
1 |
|
This Part is No Longer Available |
| 9 |
814479 |
|
|
|
|
BEARING ROLLER |
1 |
|
This Part is No Longer Available |
| 10 |
50-863007A1 |
|
|
|
|
SHAFT AND GEAR |
1 |
814472 |
|
| 11 |
811896 |
|
|
|
|
DRIVE |
1 |
814473 |
|
| 12 |
33291 |
|
|
|
|
COLLAR |
1 |
|
|
| 13 |
53-33290 |
|
|
|
|
RETAINING RING |
1 |
|
|
| 14 |
23-809457 |
|
|
|
|
THRUST COLLAR |
1 |
814474 |
This Part is No Longer Available |
| 15 |
814475 |
|
|
|
|
DRIVE HOUSING |
1* |
|
This Part is No Longer Available 8 |
| 16 |
23-814476 |
|
|
|
|
BUSHING |
1 |
|
This Part is No Longer Available |
| 17 |
N.S.S. |
|
|
|
|
NUT |
1 |
|
|
| 18 |
10-814468 |
|
|
|
|
SCREW |
2 |
|
This Part is No Longer Available |
| 19 |
10-814477 |
|
|
|
|
THRU BOLT |
2 |
|
This Part is No Longer Available |
