502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Exhaust Manifold And Exhaust Elbow (Cast Iron)

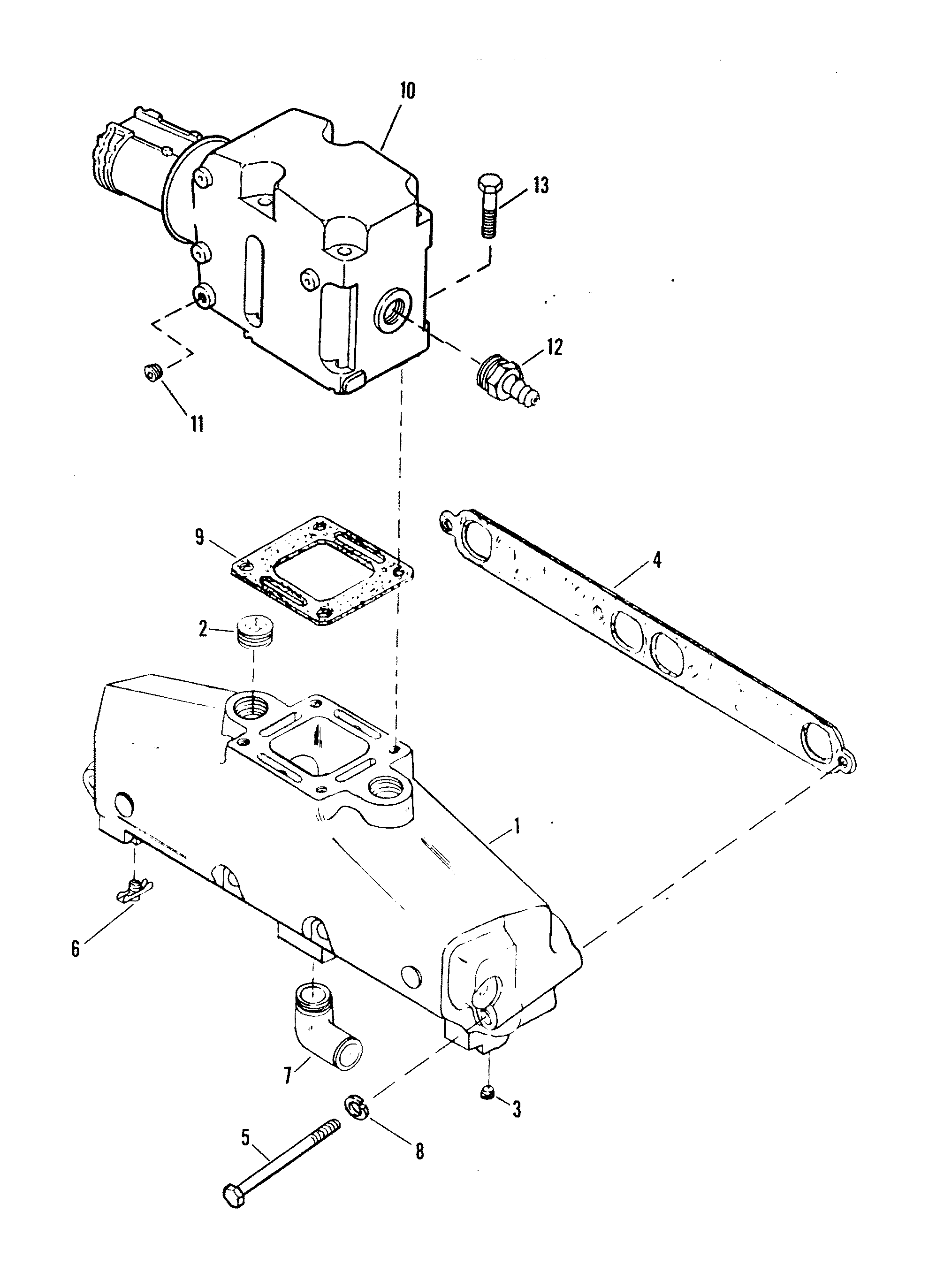

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807078T10



EXHAUST MANIFOLD ASSEMBLY 2 89011A8
2 22-41622
676-9-41205 700-21892
PLUG AR 22-33198A1
3 22-73379



PIPE PLUG 4

4 27-46820
676-9-61400 700-33760
GASKET 2

5 10-37612



SCREW (1-1/4") 8

5 10-48424



SCREW (1-5/8") 8

6 22-16951Q1



DRAIN COCK 2 22-16951A1
7 22-36305T



ELBOW 2 22-36305
8 13-35048



LOCKWASHER 16

9 27-863724



GASKET (STANDARD COOLING) 2 27-41813
10 807988A03



EXHAUST ELBOW ASSEMBLY (7) 2 44354A3
11 22-36382

700-21887
-PIPE PLUG 2

12 22-865159



FITTING (45) 1 22-92499
12 22-45084



FITTING (STRAIGHT) 1
No longer made, limited availability
13 10-43749



SCREW 6

13 10-44387



SCREW 2
