502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Engine Mounting

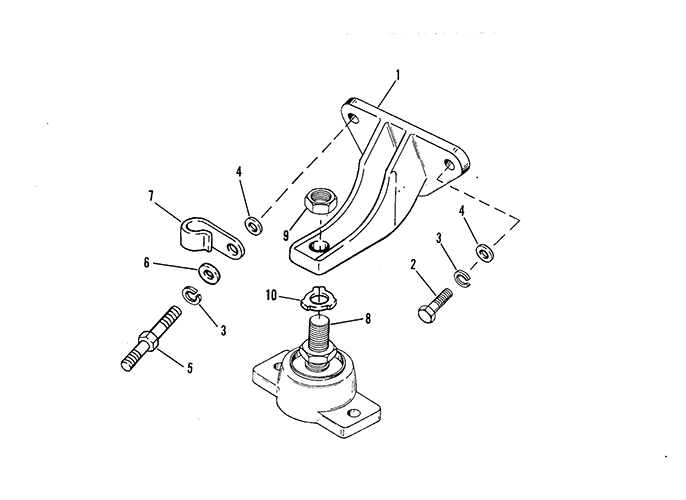

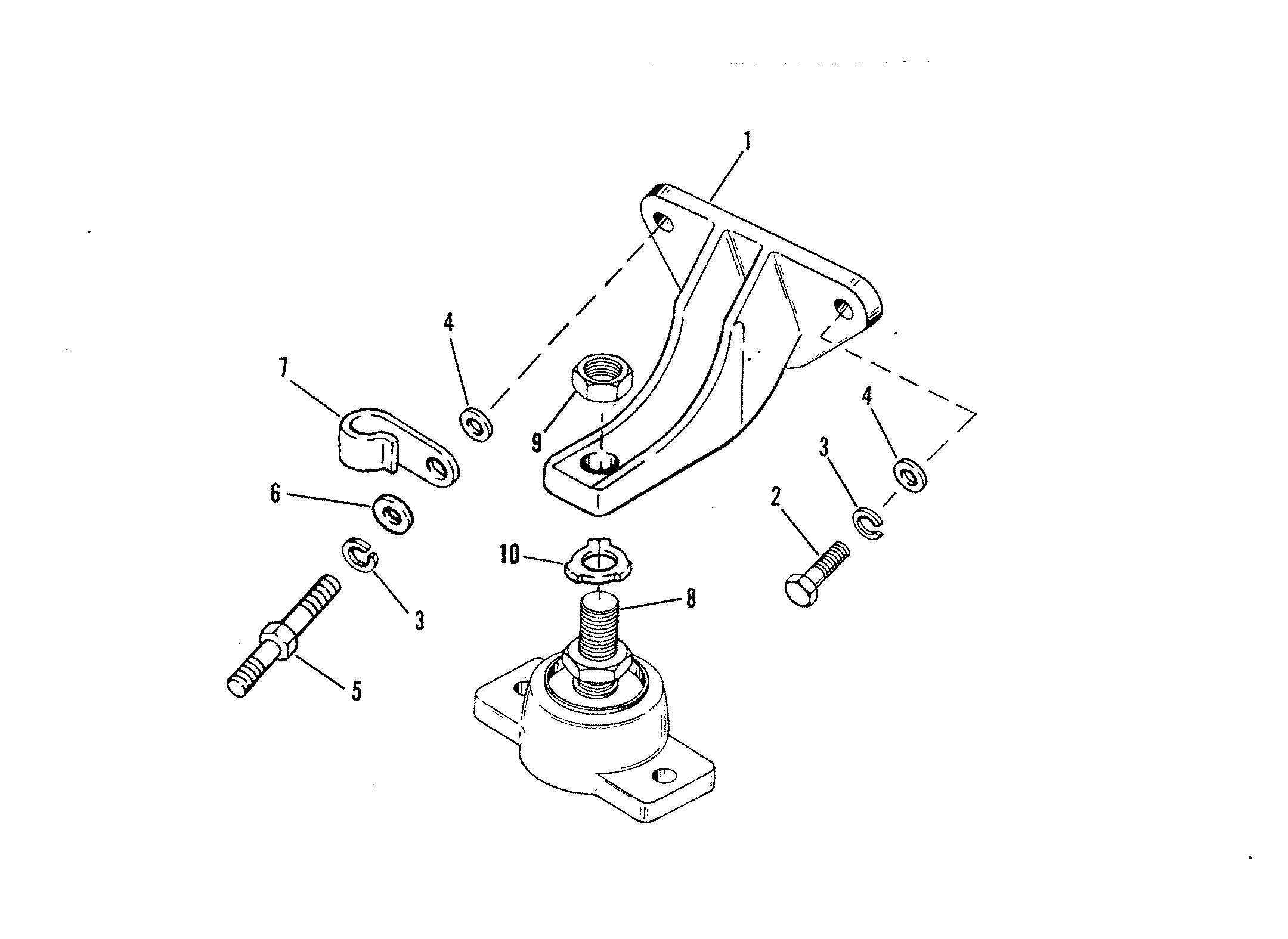

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite) 8EM2003KA
- Audio Warning System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Cast Iron)
- Exhaust Manifold And Exhaust Elbow (Stainless Steel)
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | MOUNTING BRACKET (FRONT) | 2 | ||||||
| 2 | 10-68101 | SCREW (1-3/8") - PORT | 1 | ||||||
| 2 | 10-358701 | SCREW (2") - PORT | 2 | 10-64900 | |||||
| 3 | 13-35048 | 700-21495 | LOCKWASHER - PORT | 3 | |||||
| 4 | 12-46132 | WASHER - PORT | 2 | ||||||
| 2 | 10-68101 | SCREW (1-3/8") - STARBOARD | 2 | ||||||
| 3 | 13-35048 | 700-21495 | LOCKWASHER - STARBOARD | 2 | |||||
| 5 | 16-64066 | STUD - STARBOARD | 1 | ||||||
| 6 | 12-46132 | WASHER - STARBOARD | 1 | ||||||
| 7 | 54-78945 | CLAMP - STARBOARD | 1 | ||||||
| 8 | 814263A1 | BASE | 2 | ||||||
| 9 | 11-859126 | JAM NUT | 4 | 11-49252 | |||||
| 10 | 14-12657 | TAB WASHER | 2 |
