502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Carburetor And Linkage

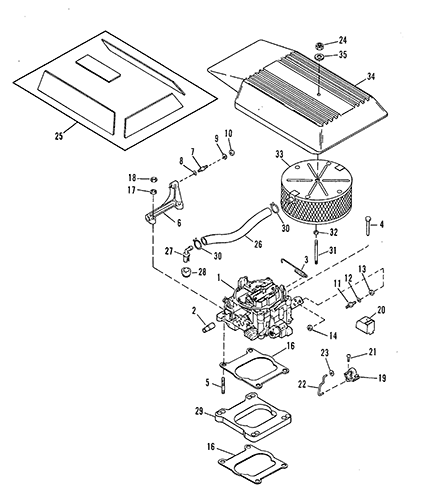

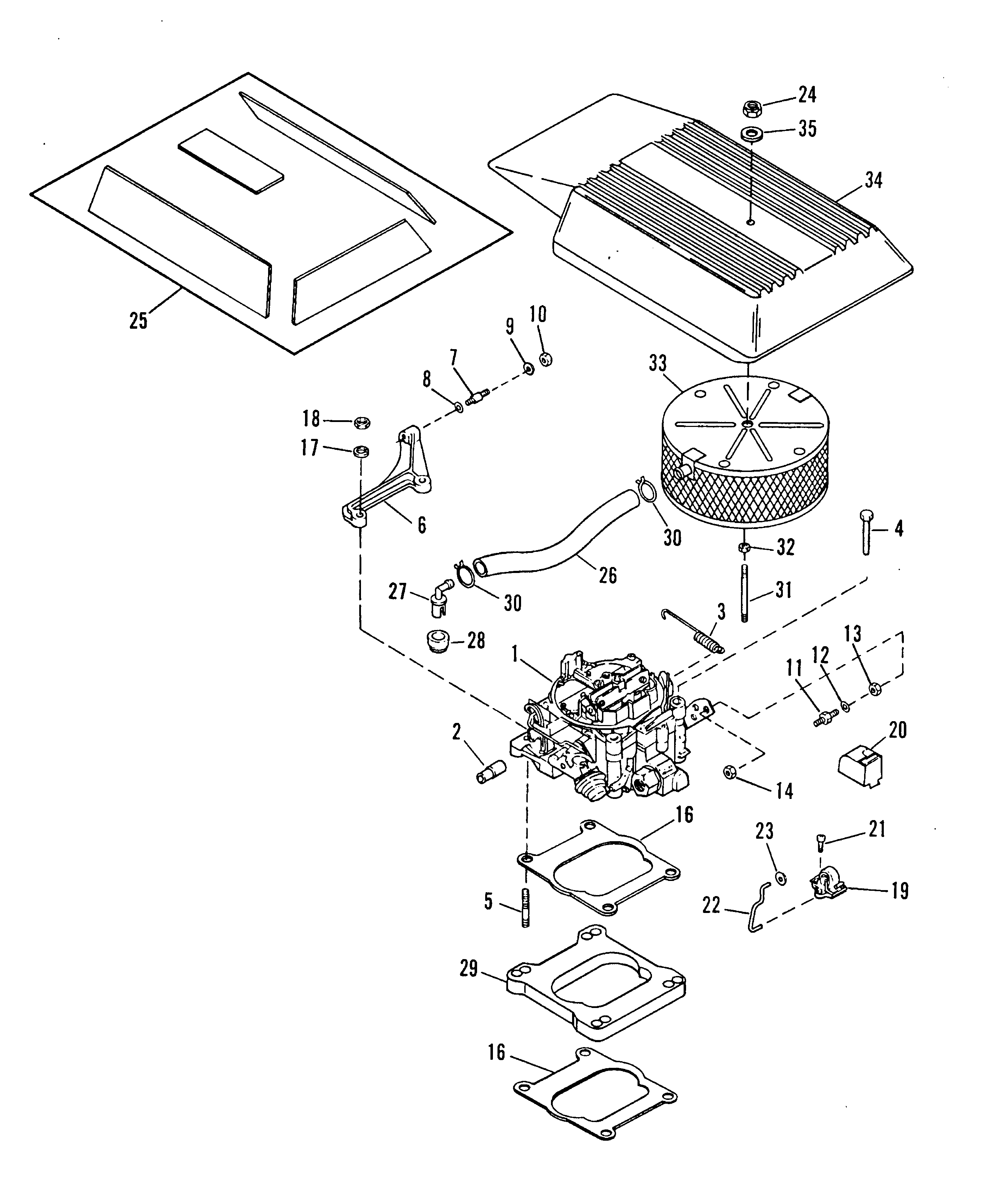

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1347-804627R02         CARBURETOR ASSEMBLY 1 1347-814623A2
2 22-97282         CONNECTOR 1   This Part is No Longer Available
3 24-897454         SPRING 1 24-32817
4 10-61161         SCREW (4-1/4") 2   This Part is No Longer Available
5 16-70237         STUD (2-1/2") 2 16-814954
6 805359A02         BRACKET 1 41329A3
7 16-38525         STUD 1

8 12-24664         WASHER 2

9 13-39107     700-21496   LOCKWASHER 2

10 11-826709109         NUT 1 11-35045
11 16-96112         STUD 1

12 12-29245         WASHER 2

13 11-8267089         NUT 1 11-20361
14 11-826709109         NUT 1 11-35045
16 27-524572         GASKET 2
3
17 12-20084         WASHER 2

18 11-29250         NUT 2

19 66205         CHOKE 1   This Part is No Longer Available
20 63922         COVER 1 66198
21 10-69235         SCREW 1

22 816334         CHOKE LEVER 1 815292 This Part is No Longer Available
23 54-49290         CLIP 1   This Part is No Longer Available
24 11-826709109         NUT 1 11-20586
25 37-812776A17         DECAL SET 1   This Part is No Longer Available
26 32-8M0062669         HOSE 2 32-9331512
27 97850T         CONNECTOR 2 97850
28 25-59987         GROMMET 2
