502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Starter Motor And Alternator
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite) 8EM2003KA
- Audio Warning System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Cast Iron)
- Exhaust Manifold And Exhaust Elbow (Stainless Steel)
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
- Wiring Harness, Electrical And Ignition

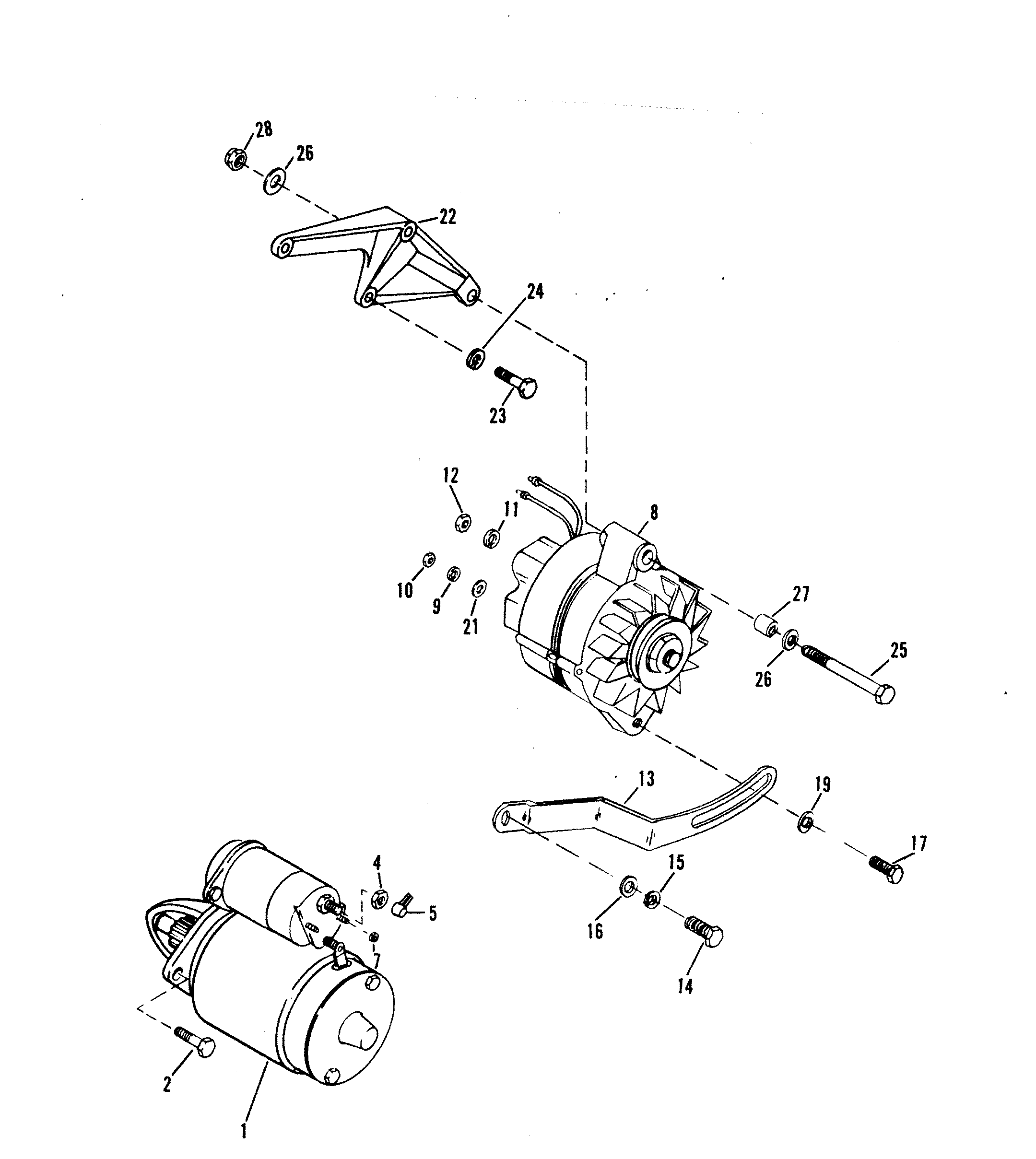

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 50-863007A1 | STARTER MOTOR | 1 | 50-812428A3 | |||||
2 | 10-8053432 | SCREW | 2 | 10-813642 | |||||
4 | 11-15874 | NUT (10MM) | 1 | ||||||
5 | 85-79695T | BOOT | 1 | 85-79695 | |||||
7 | 11-400211 | NUT (5MM) | 1 | ||||||
8 | 817119A4 | ALTERNATOR | 1 | 92497A3 | |||||
9 | 13-26996 | LOCKWASHER | 1 | ||||||
10 | 11-79989 | NUT | 1 | ||||||
11 | 13-26992 | LOCKWASHER | 1 | ||||||
12 | 11-64015 | NUT | 1 | ||||||
13 | 85013T | BRACE | 1 | ||||||
14 | 10-47462 | SCREW (1-1/4") | 1 | ||||||
15 | 13-32993 | LOCKWASHER | 1 | ||||||
16 | 12-31263 | WASHER | 1 | ||||||
17 | 10-29198 | SCREW (7/8") | 1 | ||||||
19 | 12-26168 | WASHER | 1 | ||||||
21 | 12-96457 | WASHER | 1 | ||||||
22 | 806394A1 | BRACKET | 1 | 96116A1 | This Part is No Longer Available | ||||
23 | 10-34354 | SCREW (1-1/2") | 2 | ||||||
23 | 10-37612 | SCREW (1-1/4") | 1 | ||||||
24 | 13-35048 | LOCKWASHER | 3 | ||||||
25 | 10-48308 | SCREW (3-3/4") | 1 | ||||||
26 | 12-20553 | WASHER | 2 | ||||||
27 | 23-33186 | BUSHING | 1 | ||||||
28 | 11-23161 | NUT | 1 |
