502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Intake Manifold And Front Cover

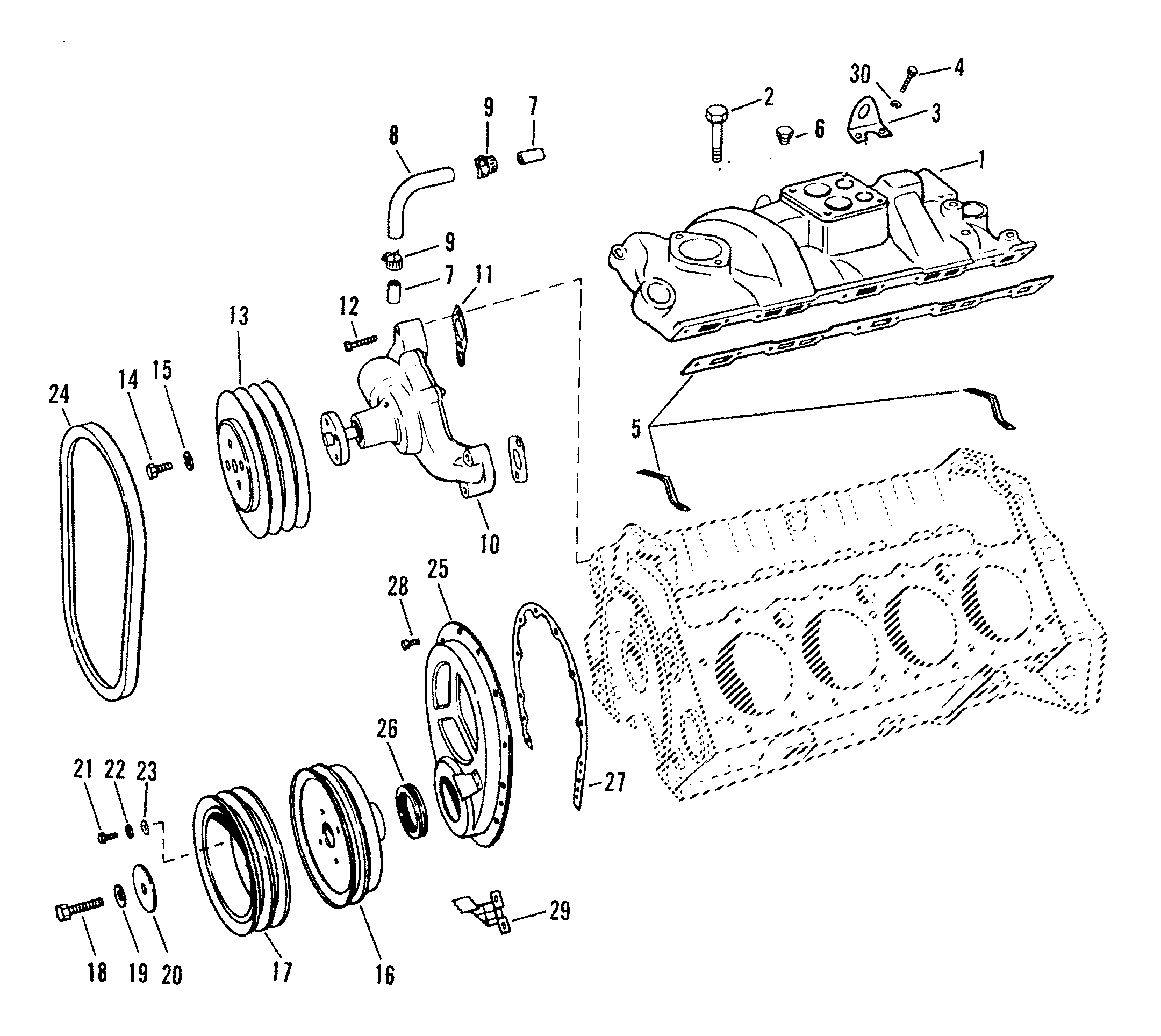

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 72608T         INTAKE MANIFOLD 1 72608 This Part is No Longer Available 3 = [27-811207A90] GASKET SET , ENGINE OVERHAUL
2 10-37510         BOLT 12
No longer made, limited availability
2 NSS         NOT SOLD SEPARATE, BOLT (GM#9439637) 4
This part is not sold separate
3 54-64628         LIFTING EYE 1

4 10-34354     700-22447   SCREW 2

5 27-805722A1   676-9-61217     GASKET SET 1 27-812712 3
6 10-49011         SET SCREW 4   This Part is No Longer Available
7 22-806242         CONNECTOR 2 22-66201
8 32-99520         HOSE 1 32-66206
9 54-815504412         CLAMP 2

10 8504541         WATER PUMP ASSEMBLY 1 17670
11 27-49110   676-9-60066 700-31770   GASKET 2
3
12 10-32132         SCREW (1-3/4") 4

13 19692T01         PULLEY 1 19692T
14 10-47277         SCREW (3/4") 4

15 13-39107     700-21496   LOCKWASHER 4

16 67858         TORSIONAL DAMPER 1   This Part is No Longer Available
17 90081T         PULLEY 1

18 10-14758         BOLT 3
No longer made, limited availability
19 13-14759         LOCKWASHER 1 13-49102 This Part is No Longer Available
20 12-49103         WASHER 1

21 10-358701         BOLT 3 10-64900
22 13-35048     700-21495   LOCKWASHER 3

23         WASHER 3

24 57-48122Q         BELT 1 57-48122
25 66215         COVER 1   This Part is No Longer Available
26 26-8219471   676-9-61612     OIL SEAL 1 26-49154 3
27 27-54529   676-9-61601 700-30440   GASKET 1
3
28 10-35366         SCREW (7/16") 10

29 59966

TIMING POINTER 1
30 13-35048

700-21495
LOCKWASHER 2
