502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Fuel Pump And Fuel Filter

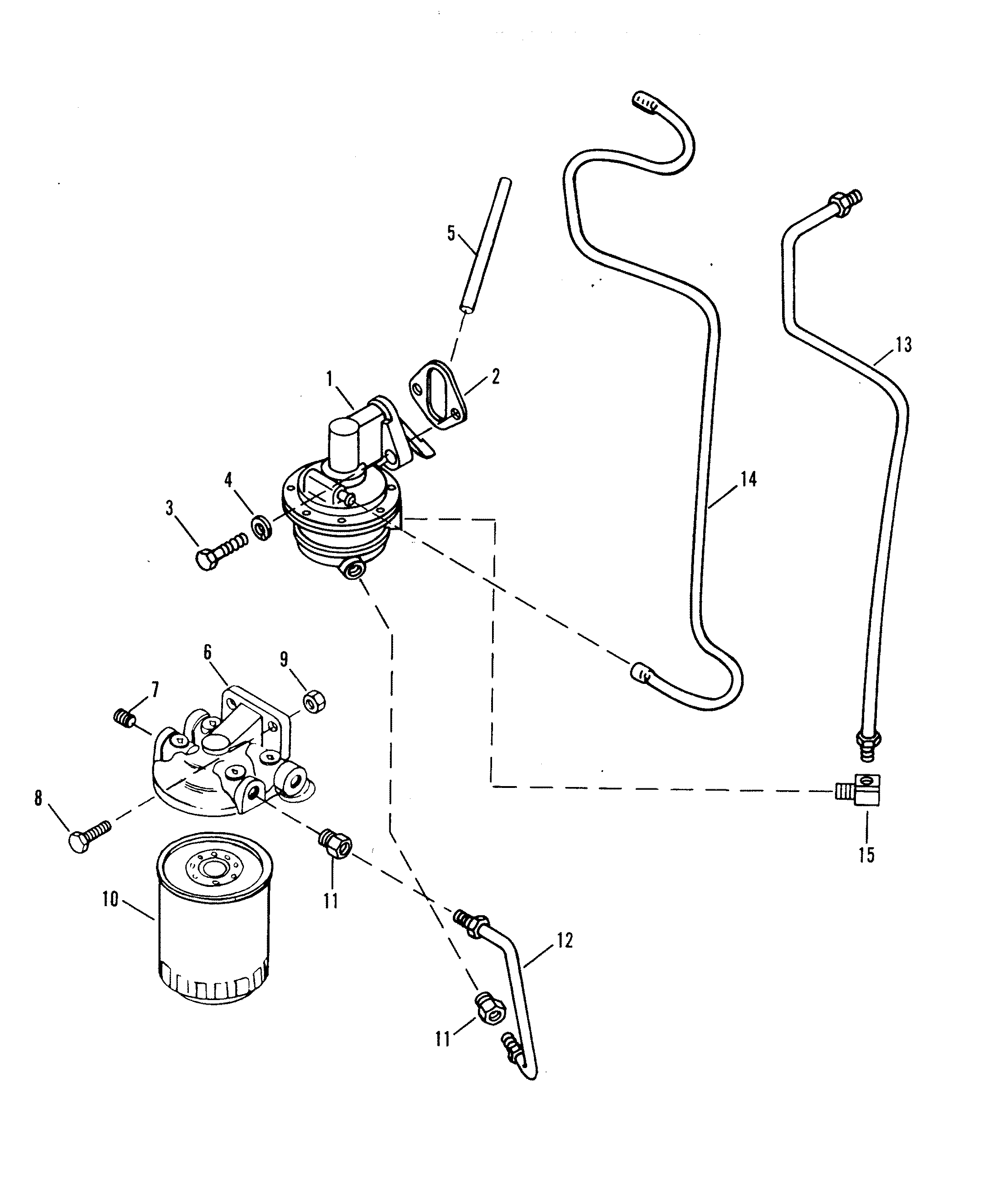

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite) 8EM2003KA
- Audio Warning System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Cast Iron)
- Exhaust Manifold And Exhaust Elbow (Stainless Steel)
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862049A1 | FUEL PUMP | 1 | 814624A2 | |||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET | 1 | 3 | |||
| 3 | 10-34354 | SCREW (1-1/2") | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER | 2 | ||||||
| 5 | 35377 | PUSH ROD | 1 | ||||||
| 6 | 89876A3 | BASE | 1 | ||||||
| 7 | 22-36382 | 700-21887 | PIPE PLUG | 3 | |||||
| 8 | 10-26066 | SCREW | 2 | No longer made, limited availability | |||||
| 9 | 11-82670911 | NUT | 2 | 11-35814 | |||||
| 10 | 35-802893Q01 | FUEL FILTER | 1 | 35-604941 | |||||
| 11 | 22-33821 | CONNECTOR | 2 | ||||||
| 12 | 32-814884T | FUEL LINE, FILTER TO PUMP | 1 | This Part is No Longer Available | |||||
| 13 | 32-814885T | FUEL LINE, FUEL PUMP TO CARBURETOR | 1 | This Part is No Longer Available | |||||
| 14 | 32-7381567 | HOSE, FUEL PUMP TO CARBURETOR | 1 | 32-7381563 | |||||
| 15 | 22-93385 | ELBOW | 1 |
