502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Crankshaft, Pistons And Conn. Rods

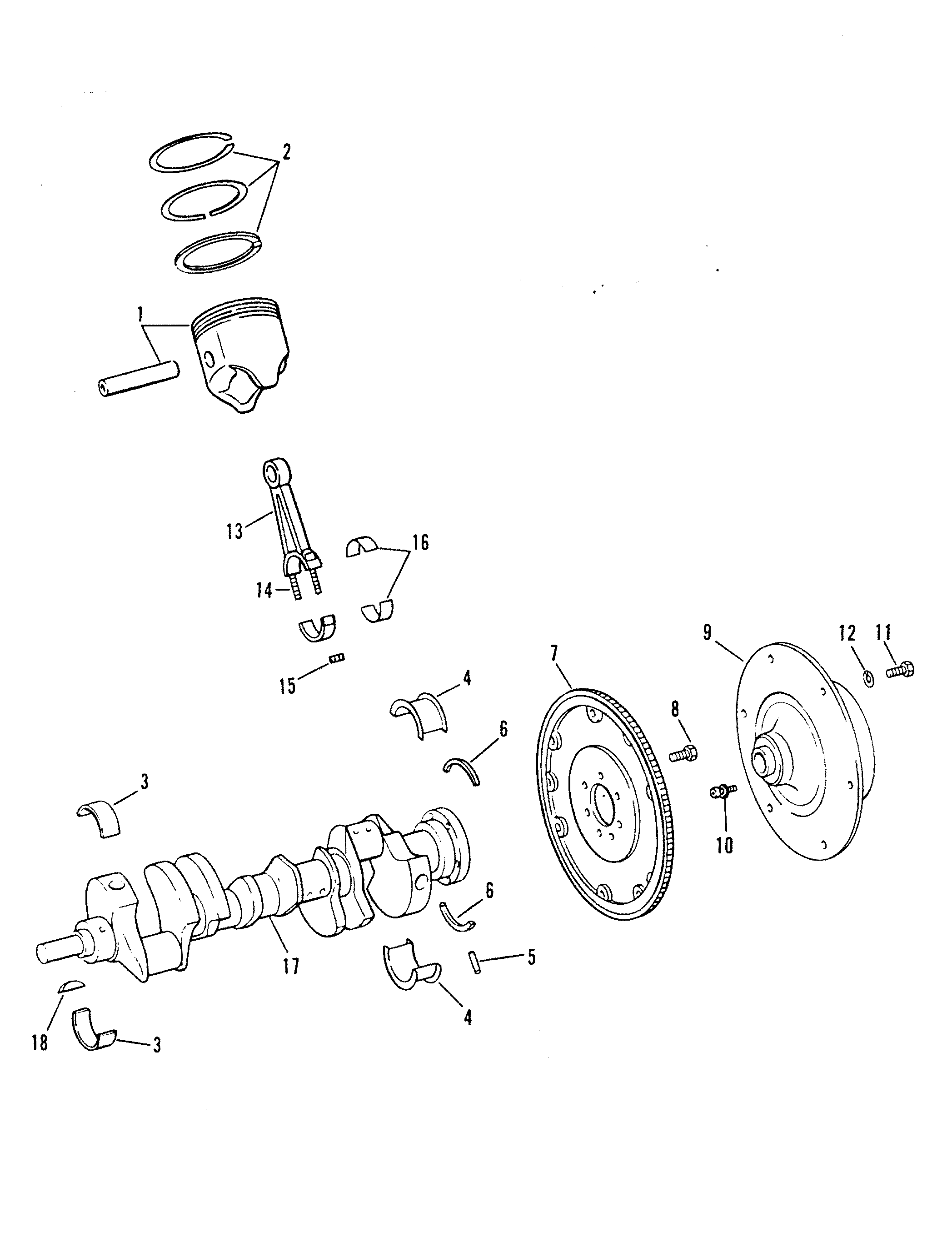

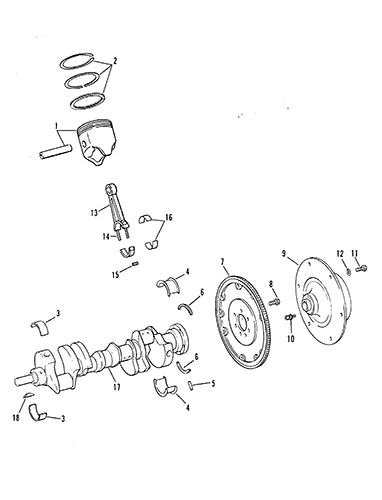

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 737-827664         PISTON & PISTON PIN (STANDARD) 8 737-821090 3 = [27-811207A90] GASKET SET , ENGINE OVERHAUL
1 737-827665A1         PISTON & PISTON PIN (.032 O.S.) AR 737-817412 This Part is No Longer Available No longer made, limited availability
2 39-827660T         PISTON RING (STANDARD) 8 39-821091
2 737-827665A1         PISTON RING (.032 O.S.) AR 39-817413 This Part is No Longer Available No longer made, limited availability
3/4 23-818473001         BEARING SET (STANDARD) 1 23-818473
3/4 23-818474         BEARING SET (.001 U.S.) AR

3/4 23-818475         BEARING SET (.002 U.S.) AR

3/4 818476001         BEARING SET (.010 U.S.) AR 23-818476
3/4 23-818477         BEARING SET (.020 U.S.) AR

5 17-843378         DOWEL PIN (1.4" DIA.) 1 17-35312
6 26-14756         OIL SEAL 1
3
7 230-6540         FLYWHEEL 1

8 10-845757         SCREW 6 10-49845
9 861523A9         ENGINE COUPLING ASSEMBLY 1 18311A2
10 22-49099         GREASE FITTING 2

11 10-14883         SCREW 6

12 12-20572         WASHER 6

13 614-9641T         CONNECTING ROD 8 614-9641
14 10-19234         BOLT 16

15 11-58056         NUT 16
No longer made, limited availability
16 23-85726001         BEARING UNIT (STANDARD) 8 23-85726
16 23-85727         BEARING UNIT (.001 U.S.) AR

16 23-85728         BEARING UNIT (.002 U.S.) AR   This Part is No Longer Available
16 23-85691         BEARING UNIT (.010 U.S.) AR

16 23-85729         BEARING UNIT (.020 U.S.) AR

17 429-5880         CRANKSHAFT 1   This Part is No Longer Available
18 28-34466         KEY 2
