502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Audio Warning System

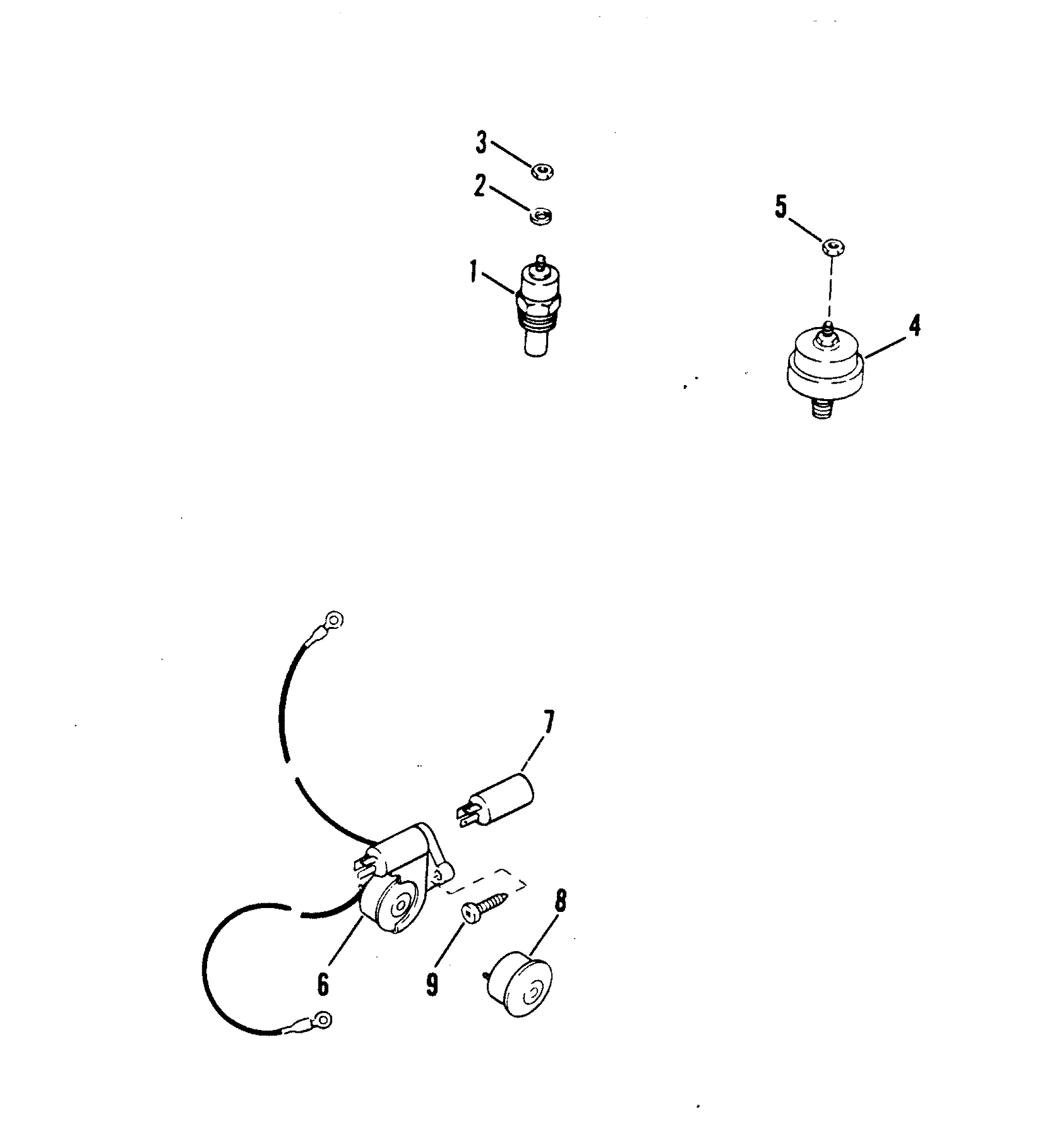

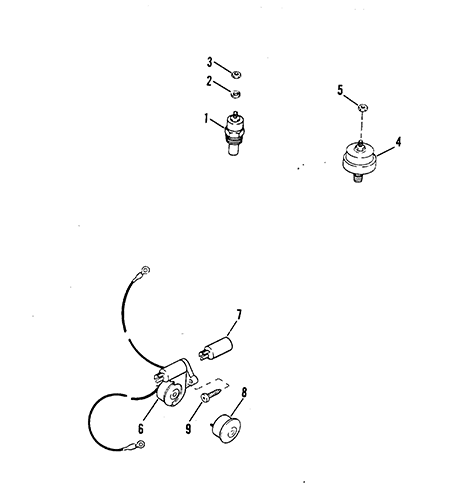

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 48952



WATER TEMPERATURE SWITCH 1

2 13-26996



LOCKWASHER 1

3 11-45076



NUT 1

4 87-805605A1



PRESSURE SWITCH 1 38559
5 11-45076



NUT 1

6 816492A14



BUSSER HOUSING ASSEMBLY 1 86047A16 Please note - this is the new style buzzer, not horn & timer
7 816492A14



TIMER 1 86045 Please note - this is the new style buzzer, not horn & timer
8 68878A6



HORN 1

9 10-69013



SCREW 2
