502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Distributor And Ignition Components

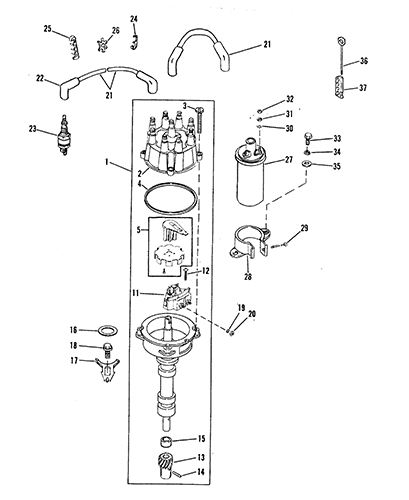

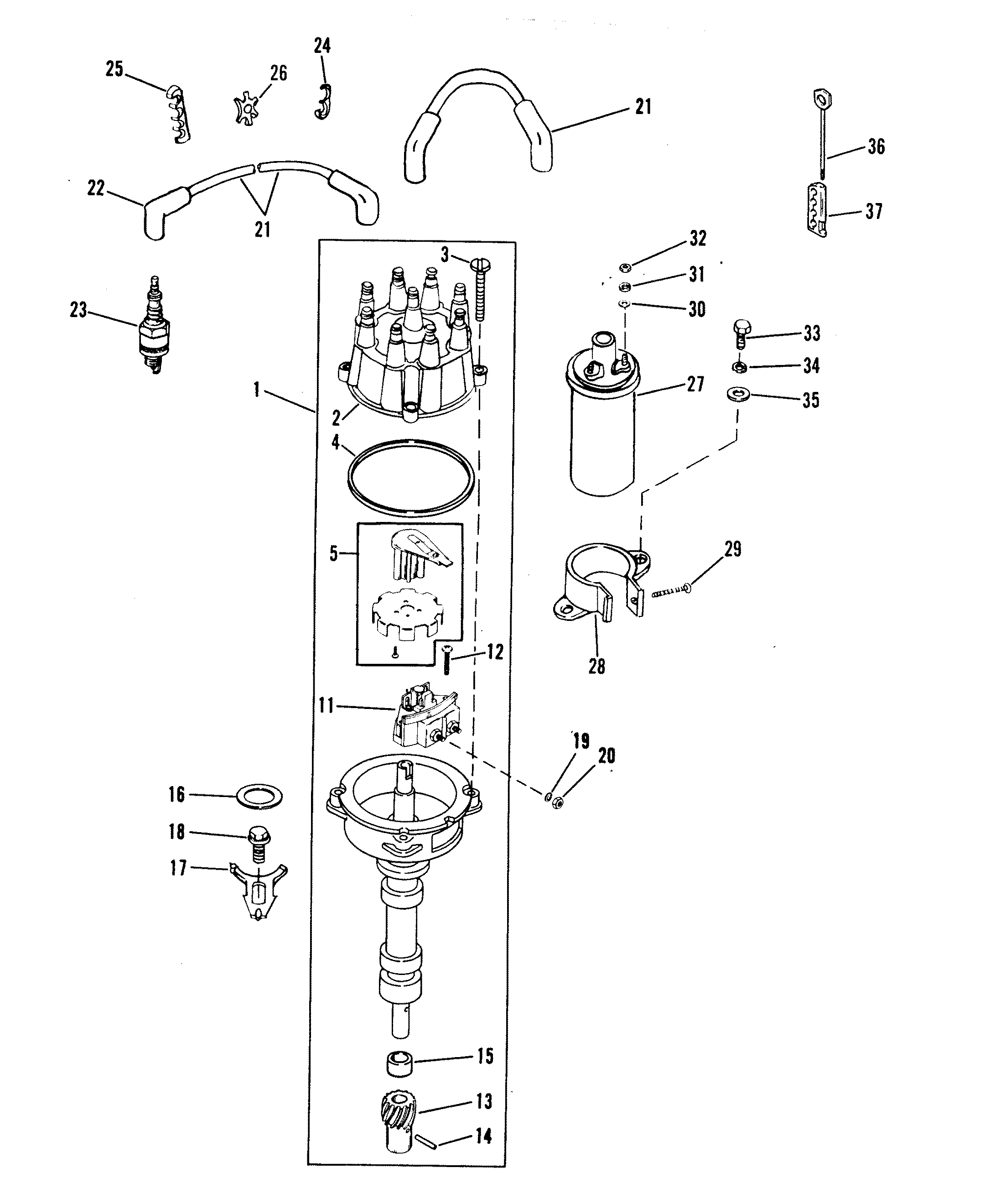

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805185A36         DISTRIBUTOR ASSEMBLY 1 90747A3 3 = [27-811207A90] GASKET SET , ENGINE OVERHAUL
2 805759T1         CAP 1 16457A4
3 10-90926         SCREW 4

4 27-805760         GASKET 1 27-982421
5 13524T1         ROTOR/SENSOR WHEEL 1 13524A5
11 87-892150Q02         SENSOR ASSEMBLY 1 87-91019A3
12 10-66686         SCREW (1") 1

12 10-72202     700-22312   SCREW (1-1/4") 1

13 43-818807         DRIVE GEAR 1 43-8137761
14 17-47617         PIN 1

15 23-90915         BUSHING 2

16 27-344863         GASKET 1
3
17 52185         CLAMP 1

18 10-11976         SCREW 1 10-35169
19 13-26996         LOCKWASHER 2

20 11-68219         NUT 2

21 84-816608Q61         SPARK PLUG WIRE KIT 1 84-816608A61
23 33-898264001         SPARK PLUG 8 33-59571
24 54676         RETAINER (2 WIRE) 2

25 32783         RETAINER (3 WIRE) 2

26 32784         RETAINER (4 WIRE) 2

27 300-8M0079202         IGNITION COIL 1 392-7803A4
28 77294T         BRACKET 1   This Part is No Longer Available
29 10-41408         SCREW (1-1/2") 1

30 12-30164         WASHER 2

31 13-26992         LOCKWASHER 2

32 11-45076         NUT 2

33 10-824941         SCREW (3/4") 2 10-59645
34 13-39107     700-21496   LOCKWASHER 2

35 12-20084         WASHER 2

36 16-90096A1         STUD ASSEMBLY 2

37 54-72821         RETAINER 2
