502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Thermostat Housing (Standard Cooling)

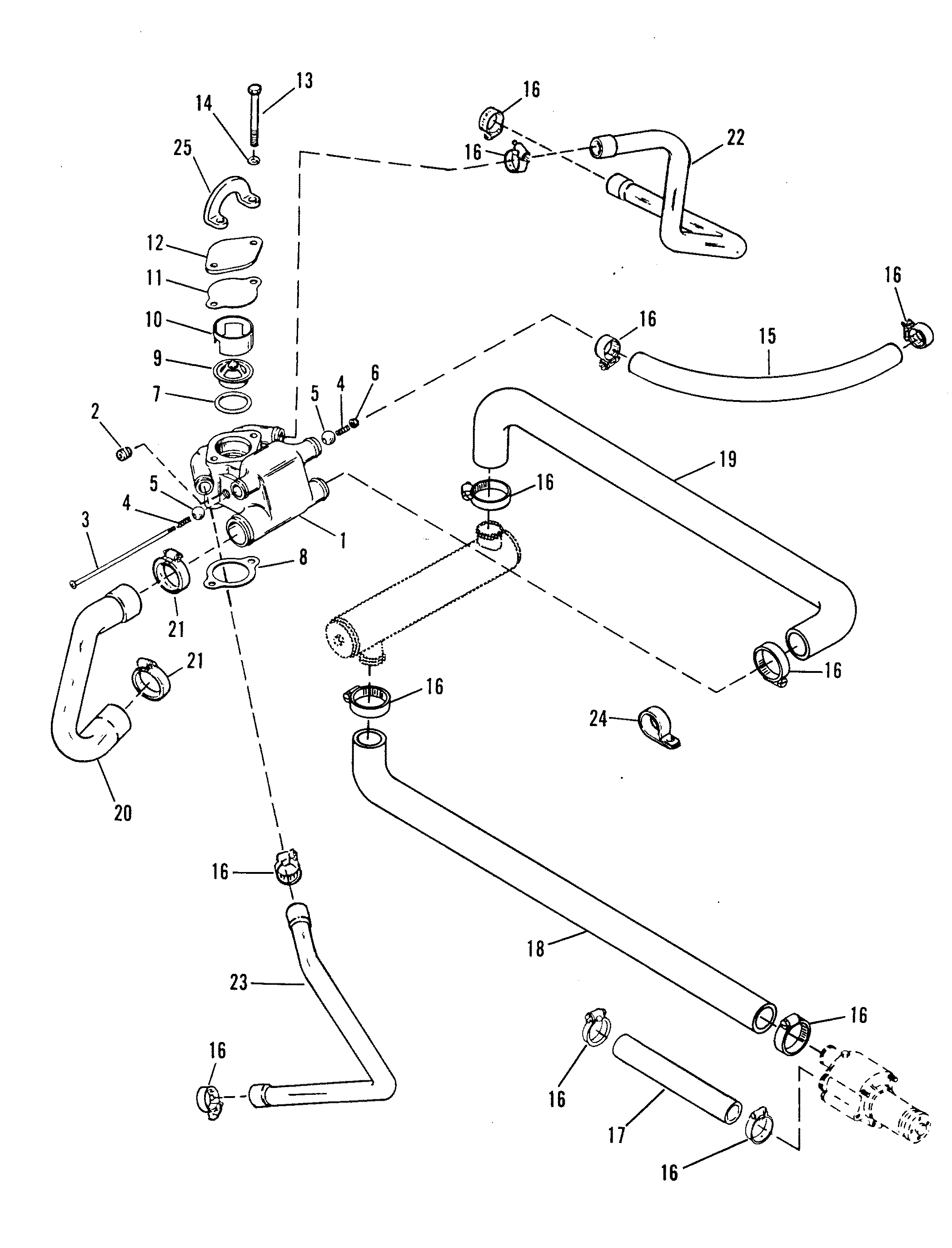

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 16413A3         THERMOSTAT HOUSING ASSEMBLY 1   This Part is No Longer Available
2 22-32803     700-21894   PIPE PLUG 1
8 = USE WITH CAST IRON EXHAUST ELBOW
3 10-17989         SCREW 1
1 = USE WITH STAINLESS STEEL EXHAUST ELBOW
4 24-75533         SPRING 2

5 30-98475         NYLON BALL 2

6 11-29488     700-21163   NUT 1
No longer made, limited availability
7 25-30224
676-9-76501 700-82250   O-RING 1
3
8 27-530451         GASKET 1
3
9 807252T1         THERMOSTAT (143) 1 59137
10 23-806922         SLEEVE 1 23-17495
11 27-331792         GASKET 1
3
12 17494A1         COVER 1

13 10-60410         SCREW (4-1/4") 2

14 13-35048         LOCKWASHER 2

15 32-8M0062614         HOSE (STARBOARD/PORT) *2 32-3322070 8
15 32-8M0062614         HOSE (STARBOARD) 1 32-3322070 1
15 32-817433         HOSE (MOLDED - PORT) 1   This Part is No Longer Available 1
16 54-815504220         CLAMP AR

17 32-865672079         HOSE, SEA PUMP TO DRIVE UNIT 1 32-1743570
18 32-816285         HOSE, OIL COOLER TO SEA PUMP - OLD DESIGN 1   This Part is No Longer Available
19 32-816286         HOSE, OIL COOLER TO THERMOSTAT HOUSING - OLD DESIGN 1   This Part is No Longer Available
18 32-816285         HOSE, OIL COOLER TO SEA PUMP - NEW DESIGN 1 32-817579
19 32-8162861         HOSE, OIL COOLER TO THERMOSTAT HOUSING - NEW DESIGN 1   This Part is No Longer Available
20 32-897181         HOSE, THERMOSTAT HOUSING TO WATER PUMP 1 32-89718
21 54-815504232         CLAMP 2

22 32-897491         HOSE, THERMOSTAT COVER (PORT) 1

23 32-897301         HOSE, THERMOSTAT COVER (STARBOARD) 1

24 54-47715         CLIP 1

25 12552         LIFTING EYE 1
