502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Sea Water Pump Assembly

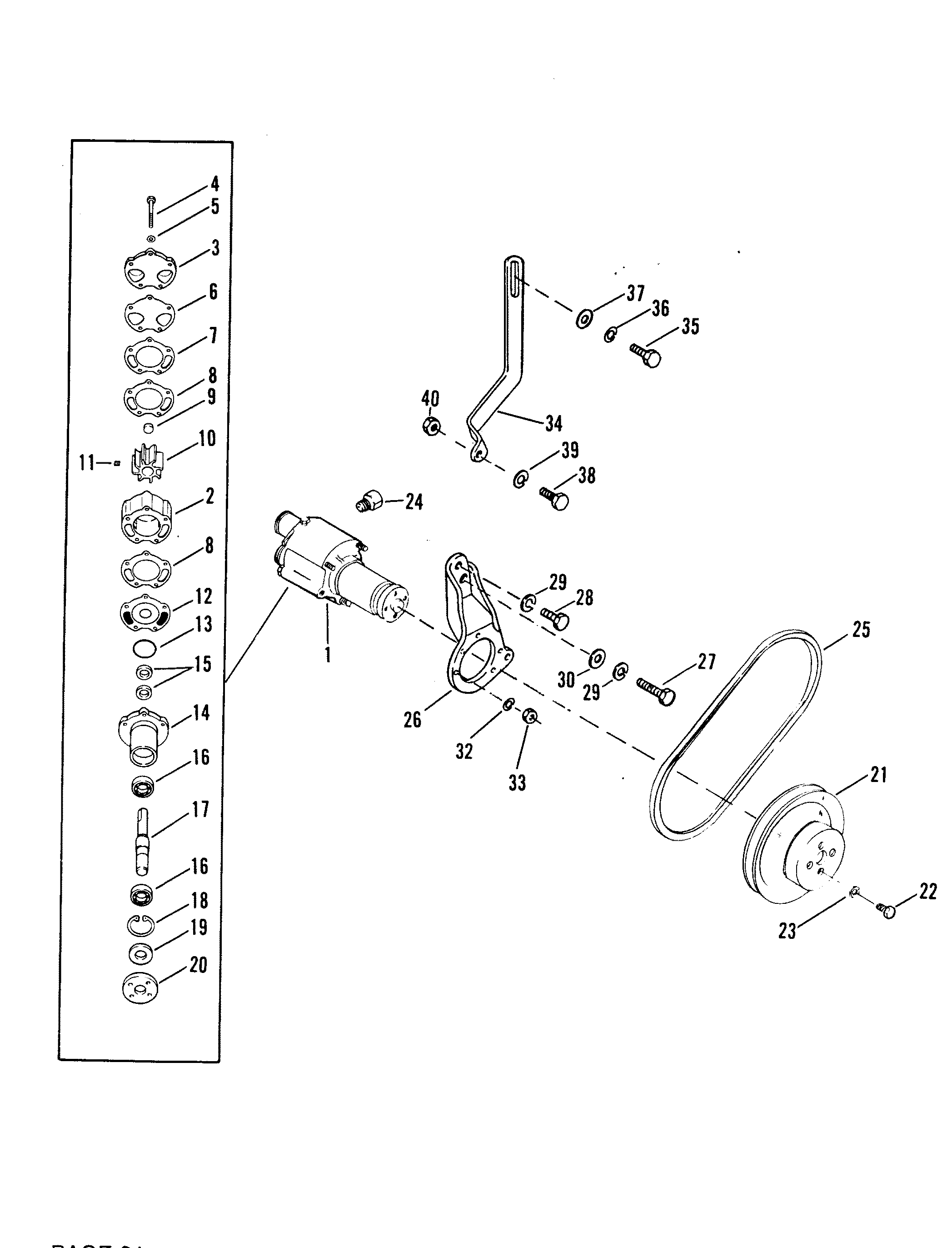

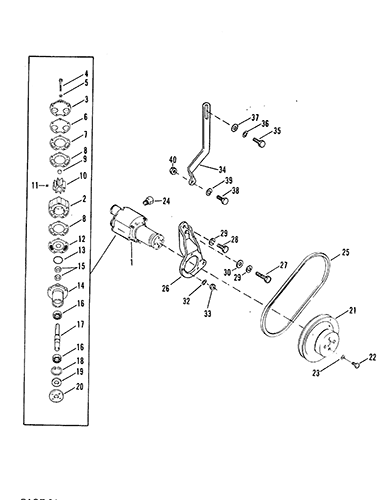

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite) 8EM2003KA
- Audio Warning System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Cast Iron)
- Exhaust Manifold And Exhaust Elbow (Stainless Steel)
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-807151A12 | WATER PUMP ASSEMBLY | 1 | 46-72774A50 | |||||
| 2 | 46-72774A40 | BODY | 1 | This Part is No Longer Available | |||||
| 3 | 87631A4 | COVER | 1 | 87631A1 | |||||
| 4 | 10-73275 | SCREW (3") | 2 | ||||||
| 4 | 10-99347 | SCREW (3-3/4") | 3 | ||||||
| 5 | 12-20084 | WASHER | 5 | ||||||
| 6 | 27-8052151 | GASKET | 1 | 27-94915 | |||||
| 7 | 94916 | WEAR PLATE (OUTER) | 1 | ||||||
| 8 | 27-94914 | 700-32730 | GASKET | 2 | |||||
| 9 | 19-59504 | PLUG | 1 | ||||||
| 10 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | 47-593621 | ||
| 12 | 94576 | WEAR PLATE (INNER) | 1 | ||||||
| 13 | 25-94288 | QUAD RING | 1 | ||||||
| 14 | 46-94913A2 | PUMP HOUSING ASSEMBLY | 1 | ||||||
| 15 | 26-90562 | 676-9-76107 | 700-85080 | OIL SEAL | 2 | ||||
| 16 | 30-72961 | BALL BEARING | 2 | ||||||
| 17 | 59501A1 | SHAFT | 1 | ||||||
| 18 | 53-23720 | SNAP RING | 1 | ||||||
| 19 | 26-72785 | OIL SEAL | 1 | ||||||
| 20 | 47530 | NUB | 1 | ||||||
| 21 | 52822T | PULLEY (CAST) | 1 | ||||||
| 22 | 10-47277 | SCREW (3/4") | 4 | ||||||
| 23 | 13-39107 | 700-21496 | LOCKWASHER | 4 | |||||
| 24 | 22-328022 | PIPE PLUG (FOR WATER PUMP BODY) | 1 | 22-32802 | |||||
| 25 | 57-13457Q | BELT (30") | 1 | 57-13457T | |||||
| 26 | 15295T | BRACKET (STAMPED) | 1 | ||||||
| 27 | 10-47461 | SCREW (1") | 1 | ||||||
| 28 | 10-17965 | SCREW | 1 | ||||||
| 29 | 13-32993 | LOCKWASHER | 2 | ||||||
| 30 | 12-27025 | WASHER | 1 | ||||||
| 32 | 13-39107 | 700-21496 | LOCKWASHER | 3 | |||||
| 33 | 11-21908 | NUT | 3 | ||||||
| 34 | 15751T | BRACE | 1 | ||||||
| 35 | 10-47461 | SCREW (1") | 1 | ||||||
| 36 | 13-32993 | LOCKWASHER | 1 | ||||||
| 37 | 12-74758 | WASHER | 1 | 12-30315 | |||||
| 38 | 10-35786 | SCREW (1") | 1 | ||||||
| 39 | 13-35048 | LOCKWASHER | 1 | ||||||
| 40 | 11-46335 | NUT | 1 | 11-24883 |
