502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Cylinder Block And Camshaft

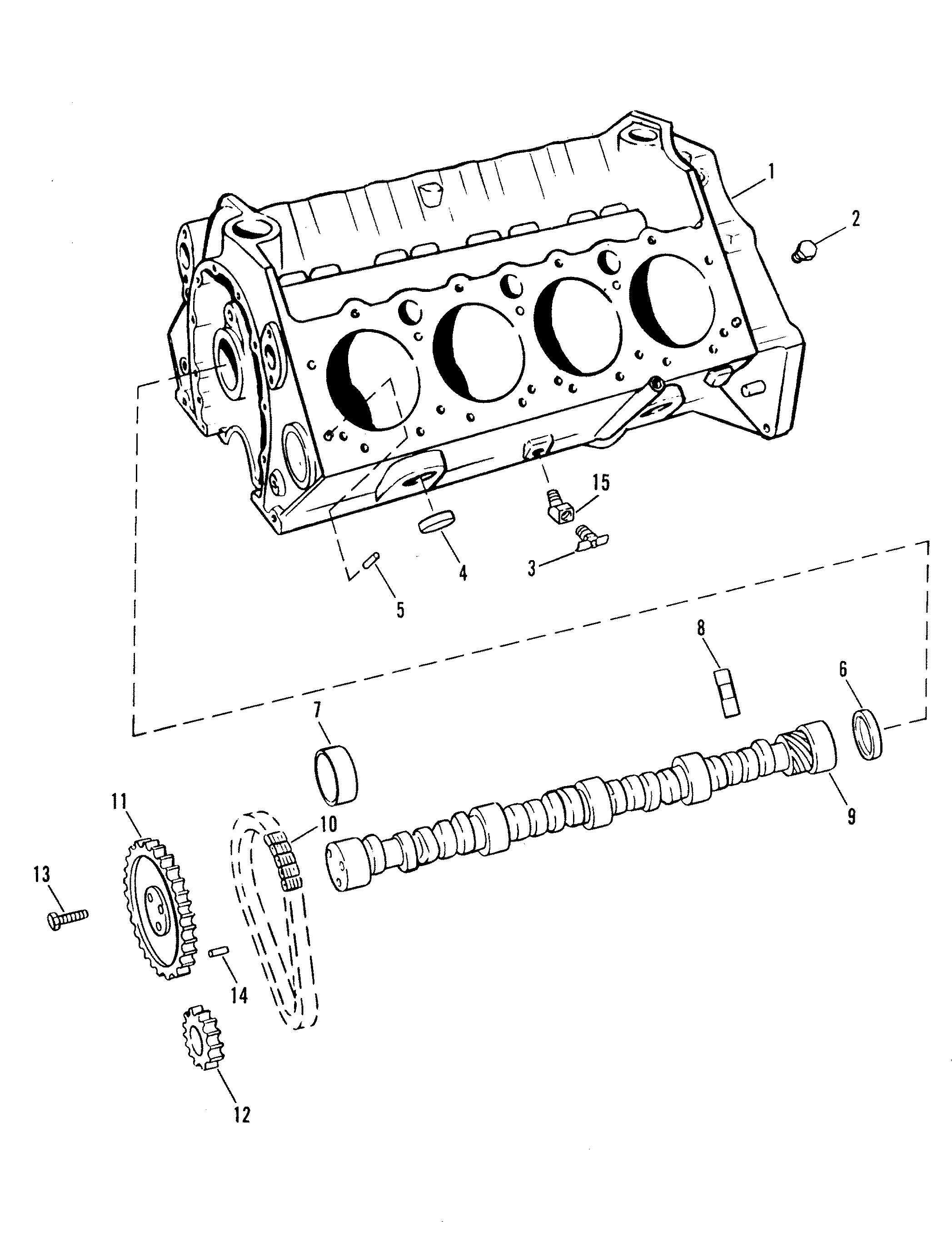

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 842-811206         CYLINDER BLOCK ASSEMBLY 1   This Part is No Longer Available [842-811206] CYLINDER BLOCK ASSEMBLY INCLUDES ONLY
2 22-48340         PIPE PLUG (1/4") 4
STANDARD PISTONS, PISTON RINGS, CRANKSHAFT BEARING AND CAMSHAFT BEARINGS.
2 22-48358T         PIPE PLUG (3/8") 2 22-48358 PARTIAL ENGINE
3 22-16951Q1         DRAIN COCK 4 22-16951A1 [INCLUDESS INTERNAL PARTS AND CYLINDER HEADS]
4 22-69300         EXPANSION PLUG (1-3/4" DIA.) 8 19-37478 [816287A 1]
5 17-52190         DOWEL PIN 4
GASKET SET AND SEALANTS - REQUIRED FOR COMPLETE OVERHAUL
6 19-94140         EXPANSION PLUG 1
3 = [27-811207A90] GASKET SET, ENGINE OVERHAUL
7 23-85684         BEARING UNIT (SET) 1
[92-91601 1] SEALER RED RTV [WHERE APPLICABLE]
8 811583         LIFTER 16 19240 [92-34227 1] PERFECT SEAL, [WHERE APPLICABLE]
9 431-9830         CAMSHAFT 1

10 61728         TIMING CHAIN 1   This Part is No Longer Available (Double Roller Chain)
10 845796T         CHAIN, TIMING 1 811580 (Single Roller Chain)
11 43-61726         CAMSHAFT SPROCKET 1   This Part is No Longer Available (Double Roller Chain)
11 43-811578         CAMSHAFT, SPROCKET 1
(Single Roller Chain)
12 43-61727         CRANKSHAFT TIMING SPROCKET 1   This Part is No Longer Available (Double Roller Chain)
12 43-845794T         CRANKSHAFT, SPROCKET 1 43-811579 (Single Roller Chain)
13 10-845942         BOLT 3 10-35339
14 17-843378         DOWEL PIN (1/4" DIA.) 1 17-35312
15 22-37682         ELBOW 1
