502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Cylinder Head And Rocker Cover

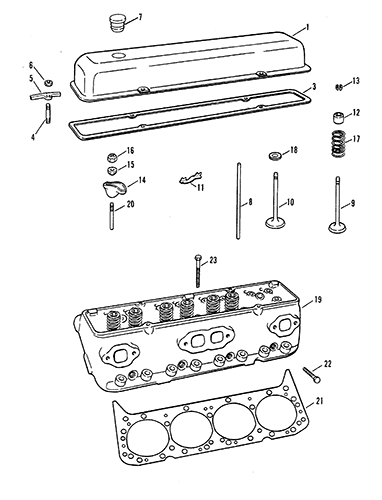

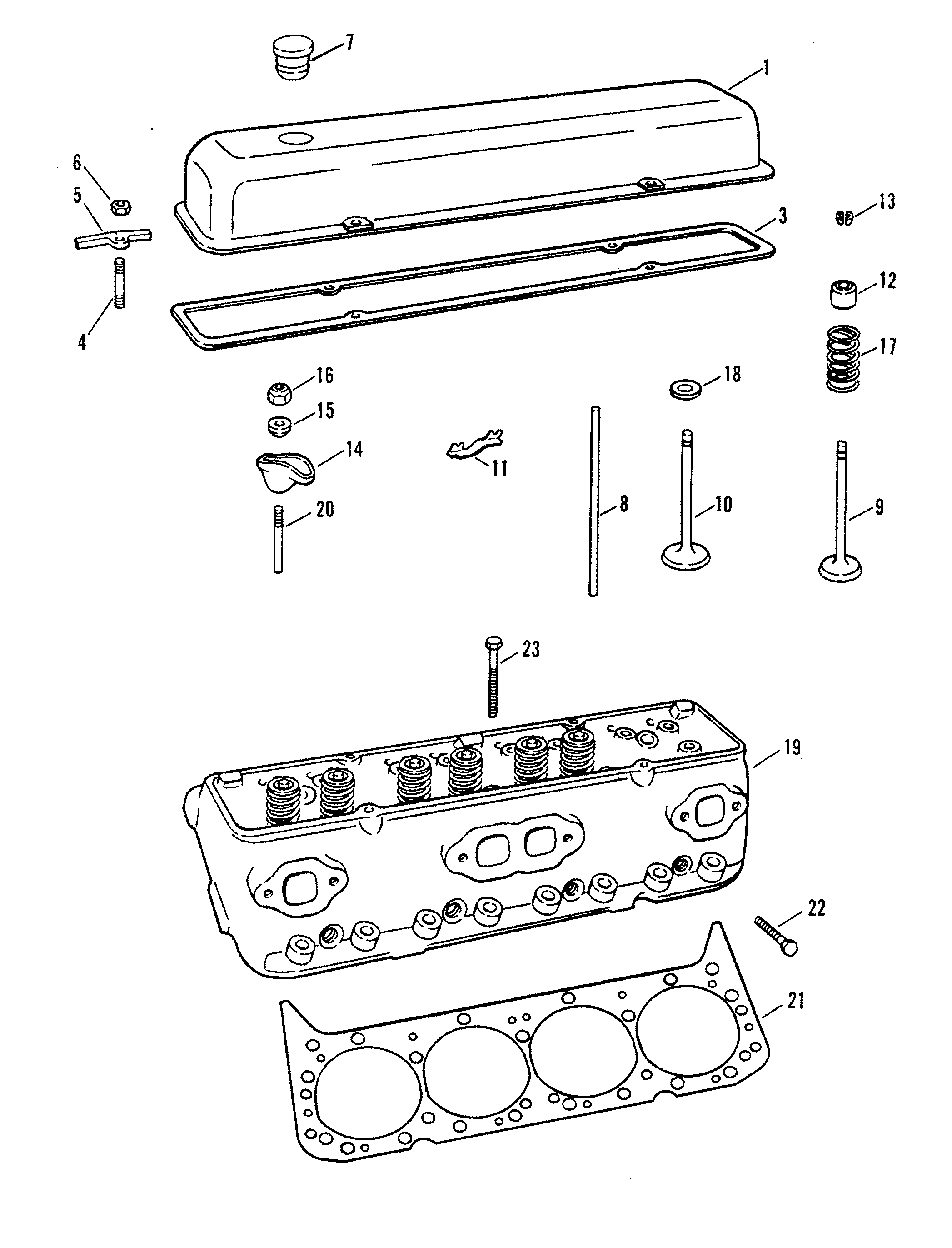

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17671         ROCKER COVER 2   This Part is No Longer Available 3 = [27-811207A90] GASKET SET , ENGINE OVERHAUL
3 27-49121         GASKET 2
3
4 16-11995         STUD 14   This Part is No Longer Available
5 14763         REINFORCEMENT 8
No longer made, limited availability
5 14764         REINFORCEMENT 6
No longer made, limited availability
6 11-8167301         NUT 14 11-816730
7 36-807152         CAP 1 36-75336 This Part is No Longer Available NO LONGER AVAIL FROM MERCURY MARINE
8 49115         PUSH ROD (INLET) 8   This Part is No Longer Available
8 49116         PUSH ROD (EXHAUST) 8   This Part is No Longer Available
9 816962         EXHAUST VALVE (STANDARD) 8

9 816963T         EXHAUST VALVE (.015 O.S.) AR 816963 This Part is No Longer Available
10 801877         INLET VALVE (STANDARD) 8 17056
10 801878         INLET VALVE (.015 O.S.) AR 1705615 This Part is No Longer Available
11 49132         GUIDE 8

12 827644A1         SEAL/CAP 16 19325 3
13 28-54530         KEY 32

14 19241         ROCKER ARM 16   This Part is No Longer Available
15 58041         BALL UNIT 16

16 11-49119         NUT 16
No longer made, limited availability
17 24-801879T         SPRING (INLET AND EXHAUST) 16 24-17057A1
18 15-845669         SHIM 16 15-54531
19 938-5924         CYLINDER HEAD 2 938-814512 This Part is No Longer Available
20 16-49133         STUD AR   This Part is No Longer Available
21 27-811207         GASKET 2   This Part is No Longer Available 3
22 10-8M0000463         BOLT (92") 8 10-49106
23 10-8M0000482         BOLT (4-1/8") 24 10-49105
