502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Exhaust Manifold And Exhaust Elbow (Stainless Steel)

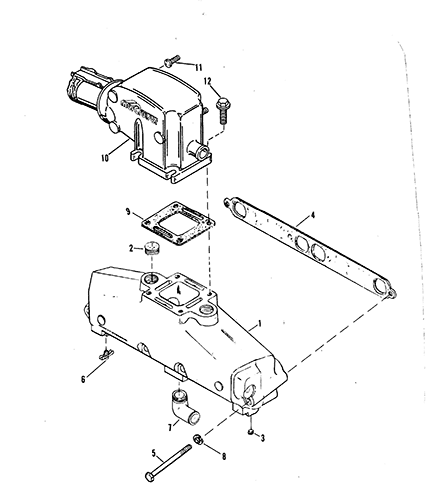

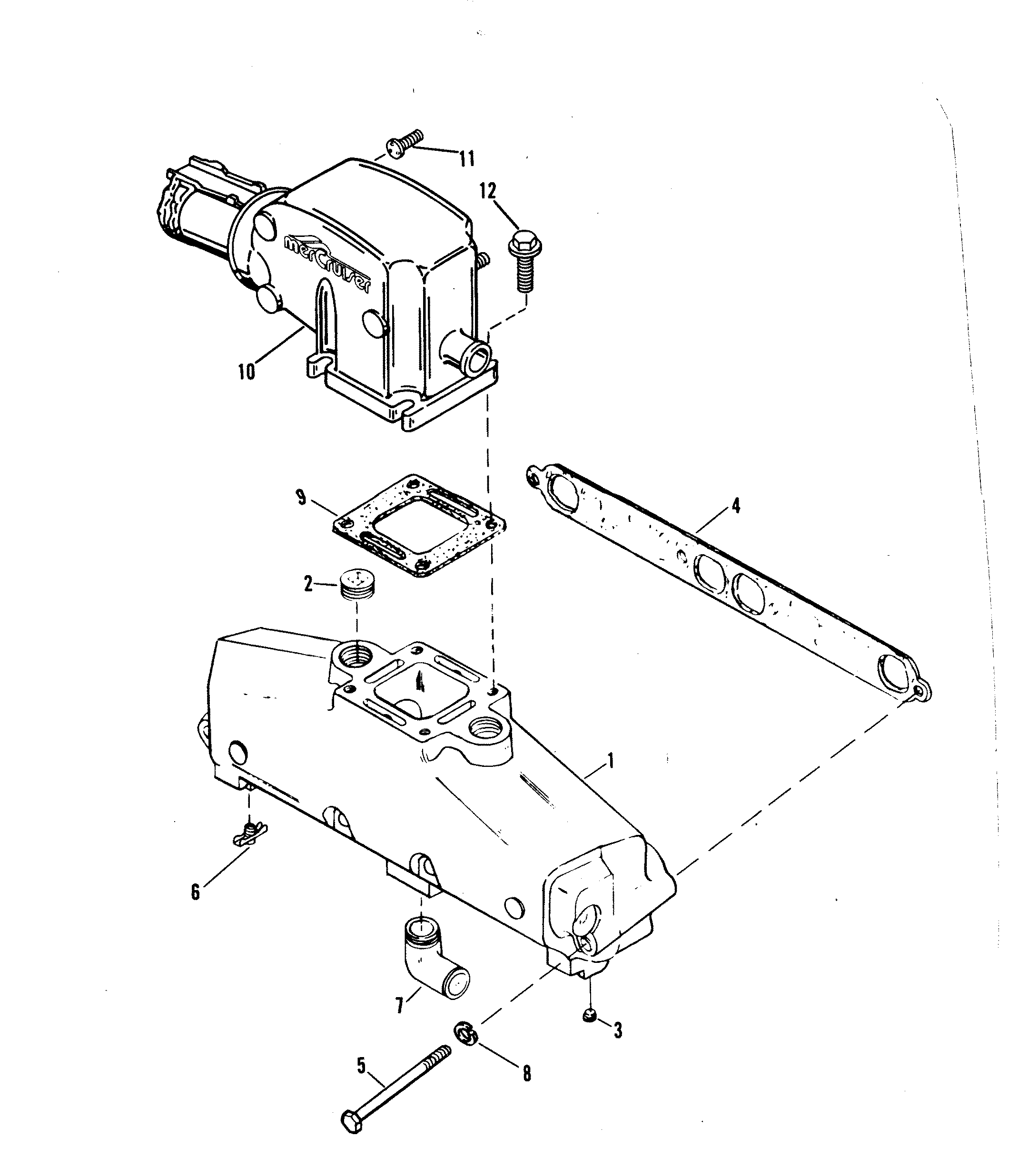

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807078T10



EXHAUST MANIFOLD ASSEMBLY 2 89011A8
2 22-41622
676-9-41205 700-21892
PLUG AR 22-33198A1
3 22-73379

700-22379
PIPE PLUG 4

4 27-46820
676-9-61400 700-33760
GASKET 2

5 10-37612



SCREW (1-1/4") 8

5 10-48424



SCREW (1-5/8") 8

6 22-16951Q1



DRAIN COCK 2 22-16951A1
7 22-36305T



ELBOW (90) AR 22-36305
7 22-45084



FITTING (STRAIGHT) AR
No longer made, limited availability
8 13-35048

700-21495
LOCKWASHER 16

9 27-863724
676-9-61413

GASKET (STANDARD COOLING) 2 27-41813
10 816900A5



EXHAUST ELBOW ASSEMBLY (PORT) 1   This Part is No Longer Available
10 816900A9



EXHAUST ELBOW ASSEMBLY (STARBOARD) 1   This Part is No Longer Available
11 16-818168A1



STUD KIT (INCLUDES 3 STUDS) 2   This Part is No Longer Available
12 10-865982005



SCREW (1") 6 10-12244
12 10-668631



SCREW (2-1/2) 2 10-66863
