350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Alternator (Mando)

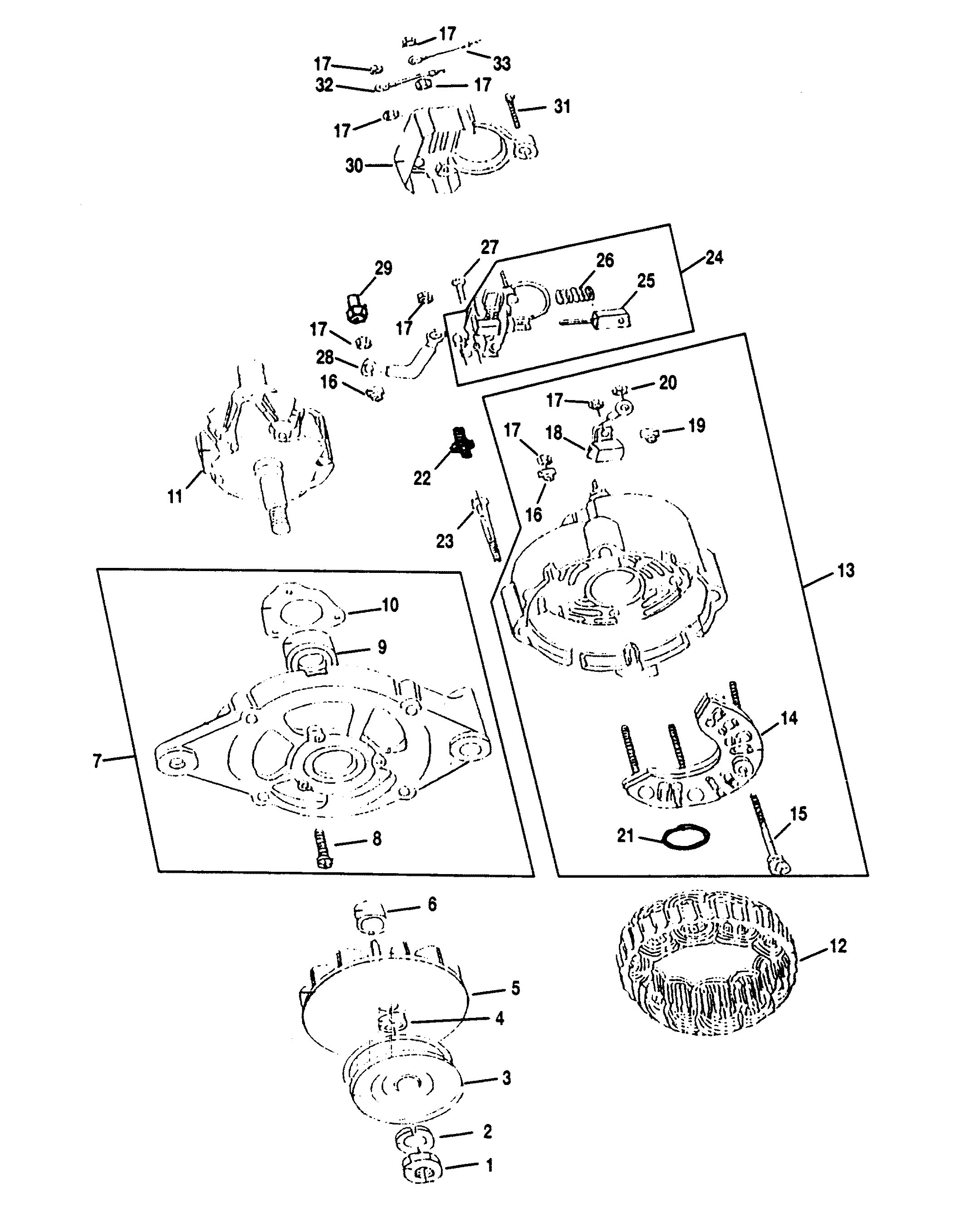

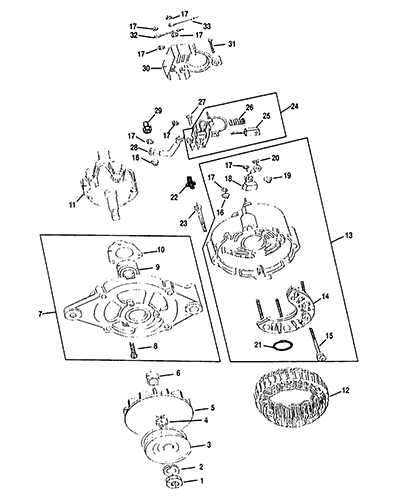

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 805884T 620-3159M 676-9-19103     ALTERNATOR ASSEMBLY 1

1 11-809136         NUT 1

2 13-809137         LOCKWASHER 1

3 809134         PULLEY 1

4 23-809135         SPACER 1

5 809139         FAN ASSEMBLY 1

6 23-809140         SPACER 1

7 809151         FRONT BRACKET ASSEMBLY 1

8 10-809154         SCREW 3

9 30-809153         BALL BEARING 1

10 809152         RETAINER 1   This Part is No Longer Available
11 809150         ROTOR 1   This Part is No Longer Available
12 809133T         STATOR 1 809133
13 809155         REAR BRACKET ASSEMBLY 1   This Part is No Longer Available
14 809162         RECTIFIER 1

15 10-809160         SET SCREW 1   This Part is No Longer Available
16 809146         MOLD 2   This Part is No Longer Available
17 11-809143         NUT 8   This Part is No Longer Available
18 809161         CONDENSER 1

19 809158         MOLD 1

20 11-809157         NUT 1

21 25-809156         O-RING 1

22 10-809159         BOLT 1   This Part is No Longer Available
23 10-809138         THRU BOLT 4   This Part is No Longer Available
24 811883T         REGULATOR ASSEMBLY 1 809163
25 811884         BRUSH 2 809164
26 24-809165         SPRING 2

27 10-809141         SCREW 2   This Part is No Longer Available
28 809142         TERMINAL 1   This Part is No Longer Available
29 809149         INSULATOR CAP 2

30 809144         COVER 1   This Part is No Longer Available
31 10-809145         SET SCREW 1   This Part is No Longer Available
32 84-809148         LEAD WIRE 1   This Part is No Longer Available
33 84-809147         LEAD WIRE 1   This Part is No Longer Available
