| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

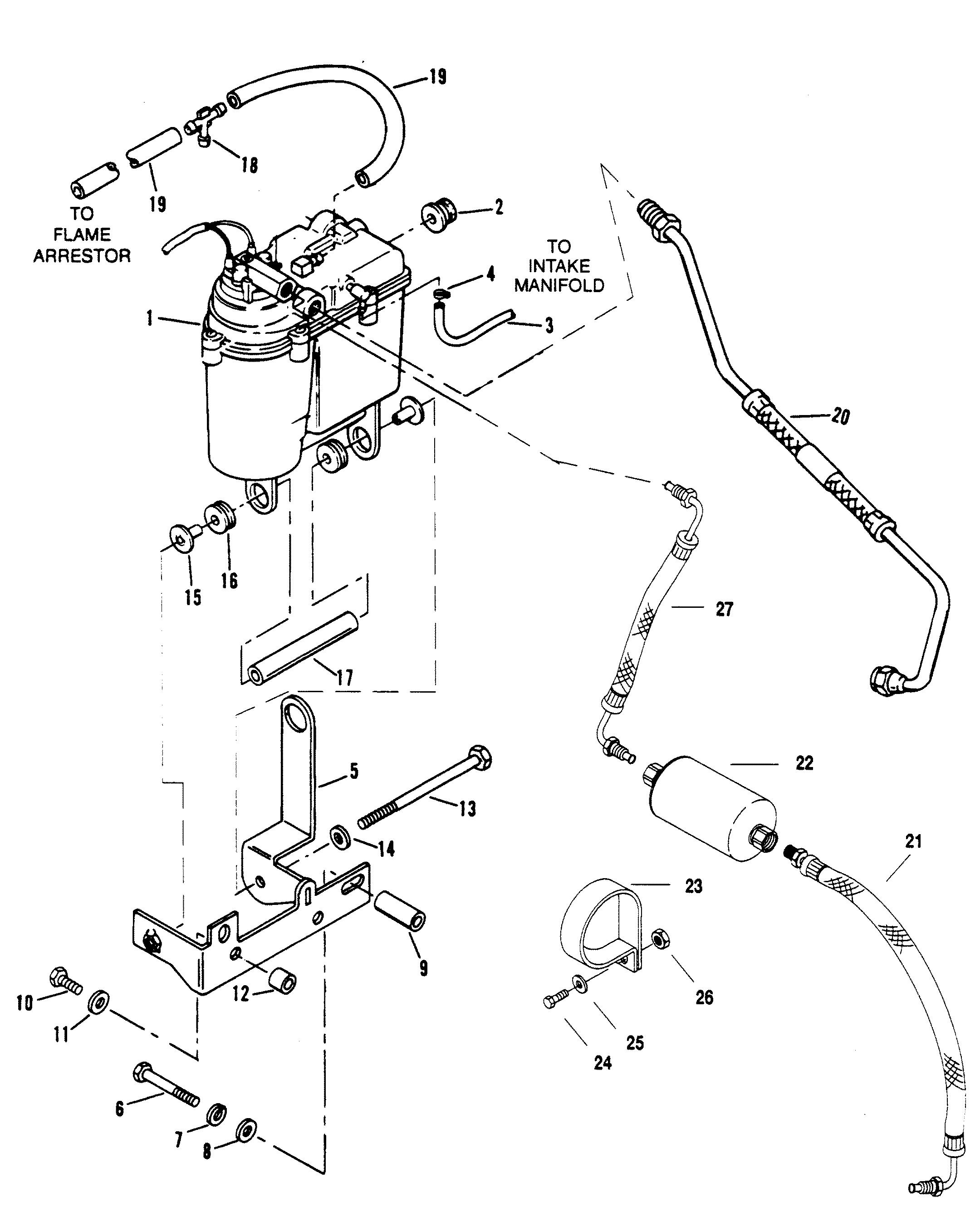

| 1 |
806643A5 |
|
|
|
|
VAPOR SEPARATOR TANK |
1 |
|
This Part is No Longer Available |
| 2 |
25-880331 |
|
|
|
|
GROMMET |
1 |
|
This Part is No Longer Available |
| 3 |
32-80568932 |
|
|
|
|
VENT HOSE |
1 |
|
This Part is No Longer Available |
| 4 |
54-815504105 |
|
|
|
|
CLAMP |
2 |
|
|
| 5 |
806645T |
|
|
|
|
BRACKET |
1 |
|
This Part is No Longer Available |
| 6 |
10-26486 |
|
|
|
|
SCREW |
1 |
|
|
| 7 |
13-35048 |
|
|
|
|
LOCKWASHER |
1 |
|
|
| 8 |
12-20553 |
|
|
|
|
WASHER |
1 |
|
|
| 9 |
23-15895 |
|
|
|
|
SPACER (1-7/16") |
1 |
|
No longer made, limited availability |
| 10 |
10-37612 |
|
|
|
|
SCREW |
1 |
|
|
| 11 |
13-35048 |
|
|
|
|
LOCKWASHER |
1 |
|
|
| 12 |
23-91034 |
|
|
|
|
SPACER (1/2") |
1 |
|
No longer made, limited availability |
| 13 |
10-807056 |
|
|
|
|
SCREW |
1 |
|
This Part is No Longer Available |
| 14 |
12-26825 |
|
|
|
|
WASHER |
1 |
|
|
| 15 |
23-19064 |
|
|
|
|
BUSHING |
2 |
|
|
| 16 |
25-88033 |
|
|
|
|
GROMMET |
2 |
|
|
| 17 |
23-806648 |
|
|
|
|
SPACER |
1 |
|
This Part is No Longer Available |
| 18 |
22-806689 |
|
|
|
|
T-FITTING |
1 |
|
|
| 19 |
32-7381567 |
|
|
|
|
TUBING |
2 |
|
|
| 20 |
32-806813T |
|
|
|
|
FUEL LINE (INLET) |
1 |
|
This Part is No Longer Available |
| 21 |
32-806812T |
|
|
|
|
FUEL LINE (OUTLET) |
1 |
|
This Part is No Longer Available |
| 22 |
35-807174T |
|
|
|
|
FUEL FILTER |
1 |
|
|
| 23 |
54-18904 |
|
|
|
|
CLAMP |
1 |
|
|
| 24 |
10-807179 |
|
|
|
|
SCREW |
1 |
|
This Part is No Longer Available |
| 25 |
12-29245 |
|
|
|
|
WASHER |
1 |
|
|
| 26 |
11-814101 |
|
|
|
|
NUT |
1 |
|
|
| 27 |
32-807173T |
|
|
|
|
FUEL LINE |
1 |
|
This Part is No Longer Available |
