350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Senders And Sensors

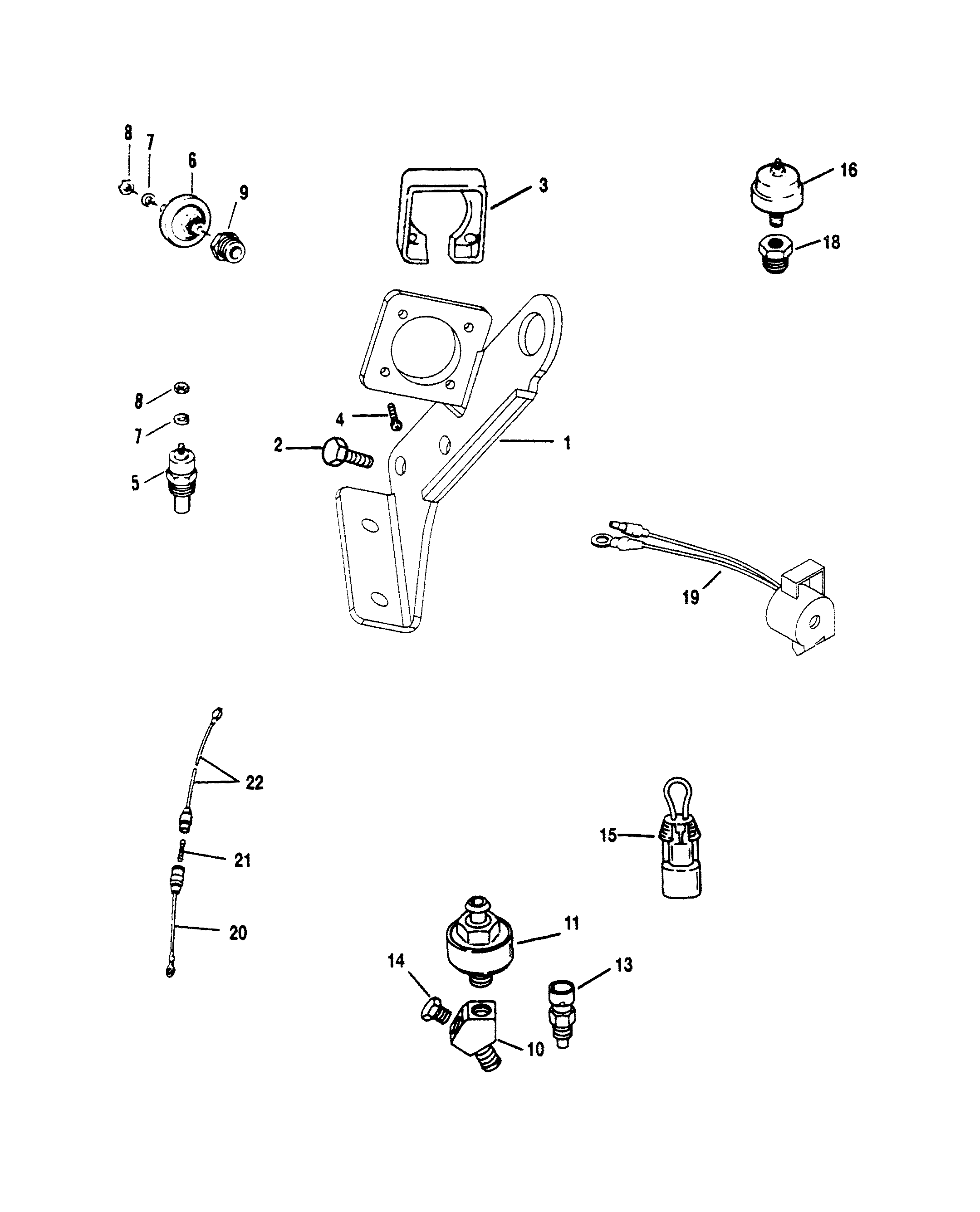

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806816T         BRACKET/LIFTING EYE - REAR 1

2 10-98261         SCREW 2

3 26079A2         PLATE 1

4 10-15001         SCREW 4

5 806490T         WATER TEMPERATURE SENDER 1 97257A1
5 49734         WATER TEMPERATURE SENDER (DUAL) OPT. 49734A1
6 8M0068784         OIL PRESSURE SENDER 1 815425
6 37293T         OIL PRESSURE SENDER (DUAL) OPT. 37293
7 13-26996         LOCKWASHER 2

8 11-68219         NUT 2

9 22-805059         BUSHING 1

10 22-806705         Y-FITTING 1   This Part is No Longer Available
11 806612T         KNOCK SENSOR 1

13 805218T   676-9-42402     COOLANT TEMPERATURE SENSOR 1

14 22-36382     700-21887   PIPE PLUG 1

15 805592A1         CONNECTOR 1

16 87-805605A1         PRESSURE SWITCH 1

18 22-8053281         ELBOW (90 DEGREES) 1

19 816492A6         AUDIO WARNING SYSTEM 1

20 84-95084A9         WIRE 1

21 88-79091         FUSE 1

22 84-95084A10         WIRE 1
